Pramet 10L2R025M08-SZP10 6761661 Modular Head For Copy And Profile Milling
MODEL 6761661
$330.06 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

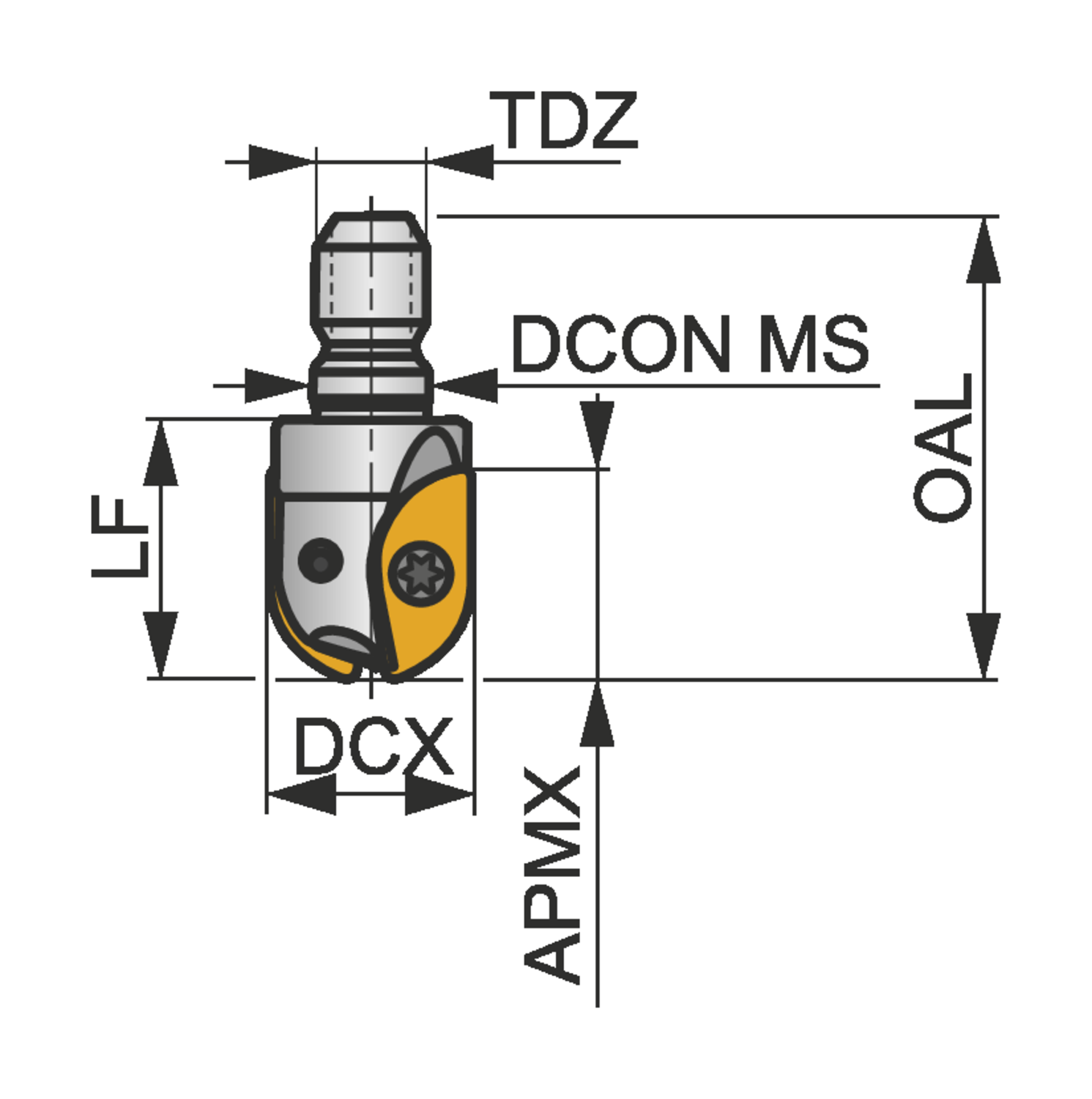

Axial rake angle (GAMP)
-10
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.335
Connection diameter - millimeter (DCON MS)
8.5
Connection size code machine side (CZC MS)
-
Cutting diameter maximum - inch (DCX)
0.394
Cutting diameter maximum - millimeter (DCX)
10
Depth of cut maximum - millimeter (APMX)
8.9
Functional length - millimeter (LF)
25
Hand (Cutting direction)
Right
Insert group used in the tool
ZP 10
Insert index count (NOI)
2
Maximum ramping angle (RMPX)
8.9
Not recomended
Finishing - very good surface quality
Peripheral effective cutting edge count (ZEFP)
2
Possible use
Medium machining
Radial rake angle (GAMF)
0
Shank
Threaded coupling
Thread diameter size (TDZ)
M8
Copy end mill with double negative geometry which utilises 2 off ZP 10.. single-sided inserts, cutting diameter 10mm with M8 threaded shank for standard modular tool-holders, 25mm protrusion length for copy milling with a maximum depth of cut of 8,9mm
