Pramet 10L2R030A10-SZP10 7049114 End Milling Cutter - Copy And Profile
MODEL 7049114
$309.49 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

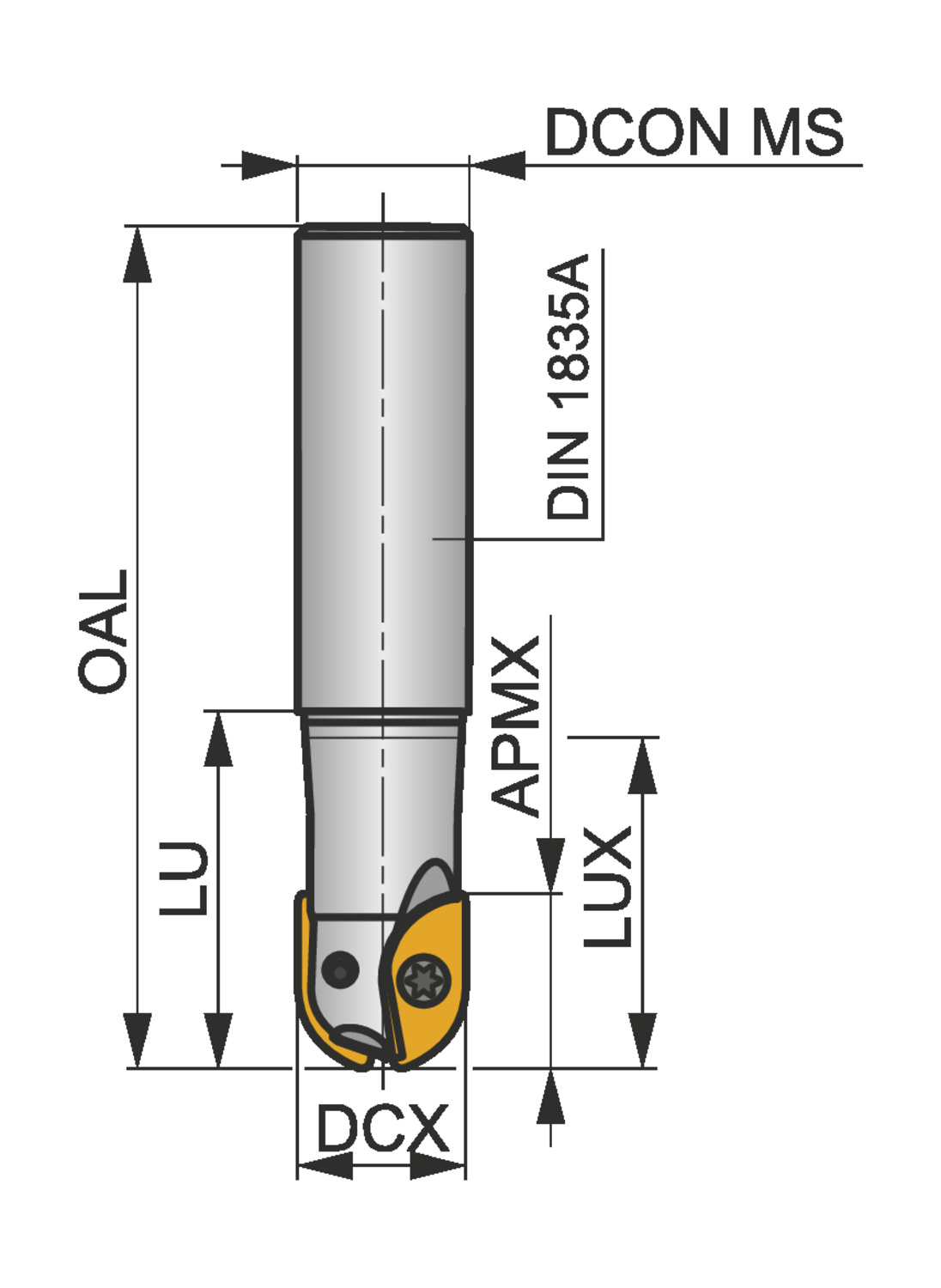

Axial rake angle (GAMP)
-10
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.394
Connection diameter - millimeter (DCON MS)
10
Connection size code machine side (CZC MS)
-
Cutting diameter maximum - inch (DCX)
0.394
Cutting diameter maximum - millimeter (DCX)
10
Depth of cut maximum - millimeter (APMX)
8.9
Hand (Cutting direction)
Right
Insert group used in the tool
ZP 10
Insert index count (NOI)
2
Maximum ramping angle (RMPX)
8.9
Not recomended
Finishing - very good surface quality
Overall length - inch (OAL)
5.118
Overall length - millimeter (OAL)
130
Peripheral effective cutting edge count (ZEFP)
2
Possible use
Roughing
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
35800
Shank
Cylindrical shank DIN 1835A
Usable Length - millimeter (LU)
30
Usable Length maximum - millimeter (LUX)
30
Copy end mill with double negative geometry which utilises 2 off ZP 10.. single-sided inserts, cutting diameter 10mm with 10mm parallel shank according to DIN 1835A, 30mm functional and 130mm overall length for copy milling with a maximum depth of cut of 8,9mm
