Pramet 12A2R020A10-SCN05C-C 7636576 End Milling Cutter - Copy And Profile
MODEL 7636576
$263.22 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

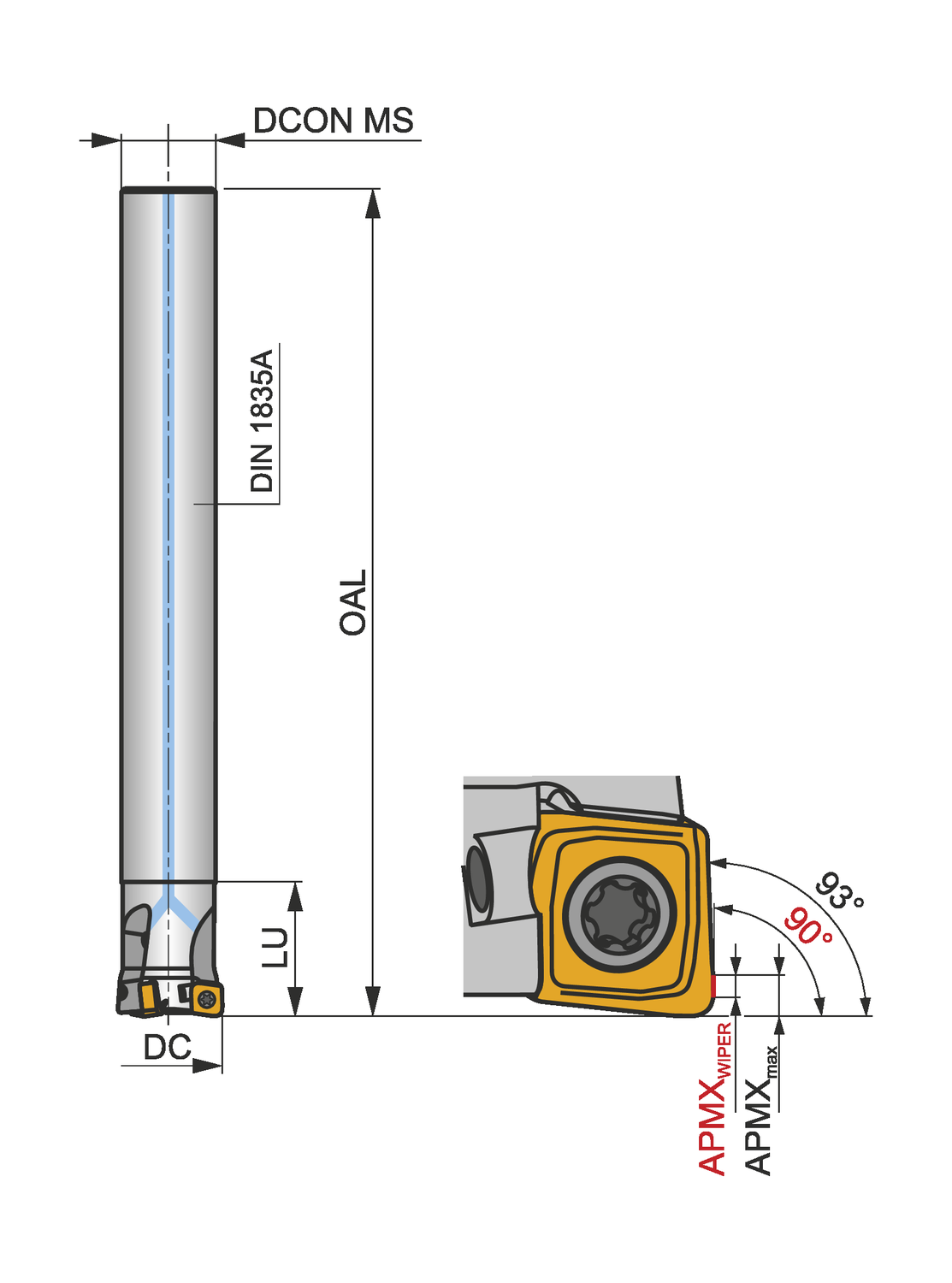

Axial rake angle (GAMP)
-8
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.394
Connection diameter - millimeter (DCON MS)
10
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.472
Cutting diameter - millimeter (DC)
12
Hand (Cutting direction)
Right
Insert index count (NOI)
2
Overall length - inch (OAL)
3.937
Overall length - millimeter (OAL)
100
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
-15
Rotational speed maximum (RPMX)
48700
Shank
Cylindrical shank DIN 1835A
Usable Length - millimeter (LU)
20
Copy face mill with double negative geometry which utilises 2 off CNHX 0502.. double-sided inserts, cutting diameter 12mm with 93° approach angle and 10mm parallel shank according to DIN 1835A, 20mm functional and 100mm overall length, through coolant for face milling, copy milling, shallow shoulder milling, deep shoulder milling, ramping and plunge milling with a maximum depth of cut of 0.5mm
