Pramet 12E3R020M06-SRD05-CF 7999278 Modular Head For Copy And Profile Milling
MODEL 7999278
$215.93 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

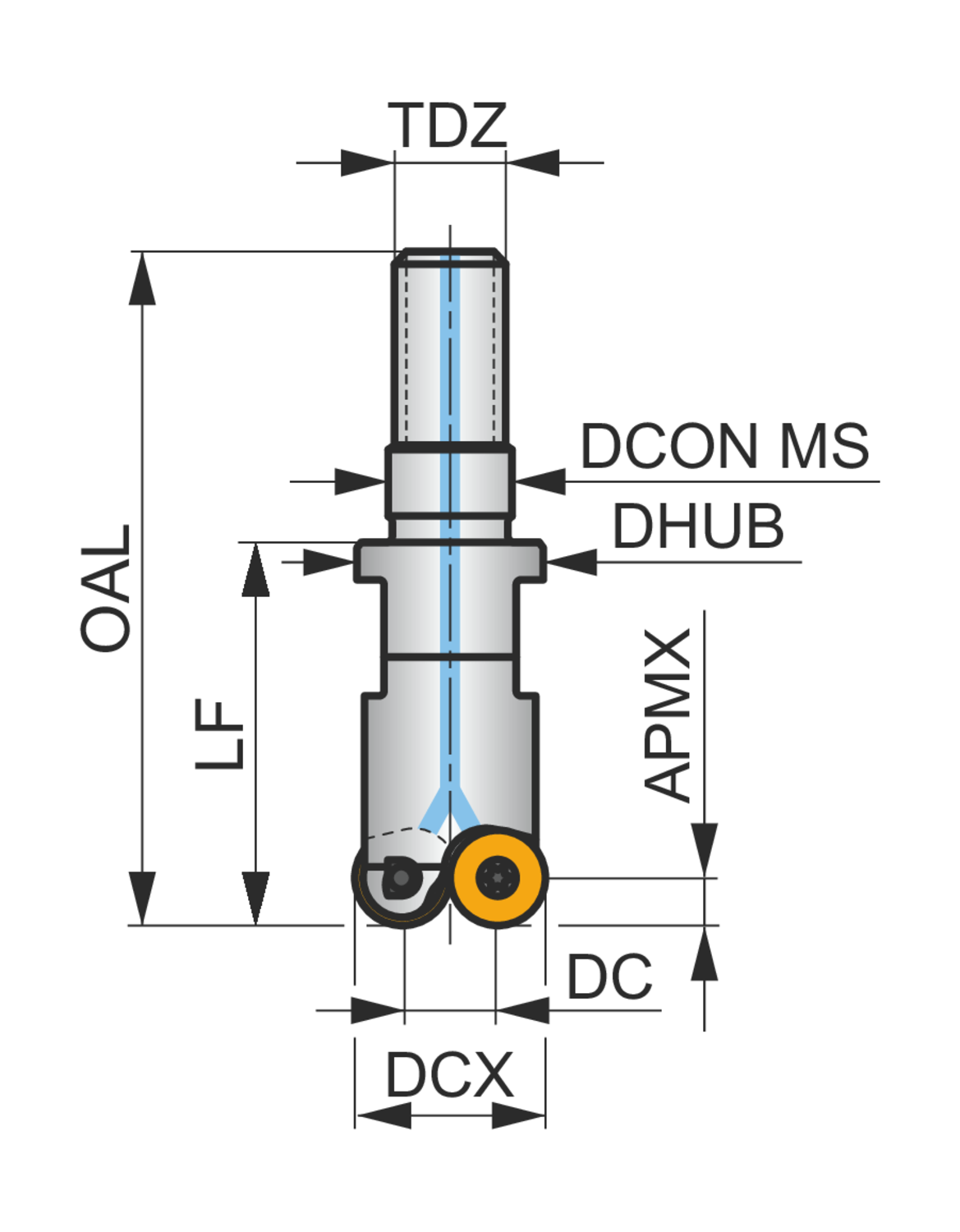

Axial rake angle (GAMP)
3
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.256
Connection diameter - millimeter (DCON MS)
6.5
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.276
Cutting diameter - millimeter (DC)
7
Cutting diameter maximum - inch (DCX)
0.472
Cutting diameter maximum - millimeter (DCX)
12
Depth of cut maximum - millimeter (APMX)
1.5
Functional length - millimeter (LF)
20
Hand (Cutting direction)
Right
Hub diameter - millimeter (DHUB)
10
Insert index count (NOI)
3
Overall length - inch (OAL)
1.378
Overall length - millimeter (OAL)
35
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
81500
Shank
Threaded coupling
Thread diameter size (TDZ)
M6
Copy face mill with positve/negative geometry which utilises 3 of RD.. 0501MO.. single-sided inserts, cutting diameter to maximum 12mm with M6 threaded shank for standard modular tool-holders, 20mm functional and 35mm protrusion length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 1.5mm
