Pramet 12L2R040B20-SZP12 6761633 End Milling Cutter - Copy And Profile
MODEL 6761633
$339.31 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

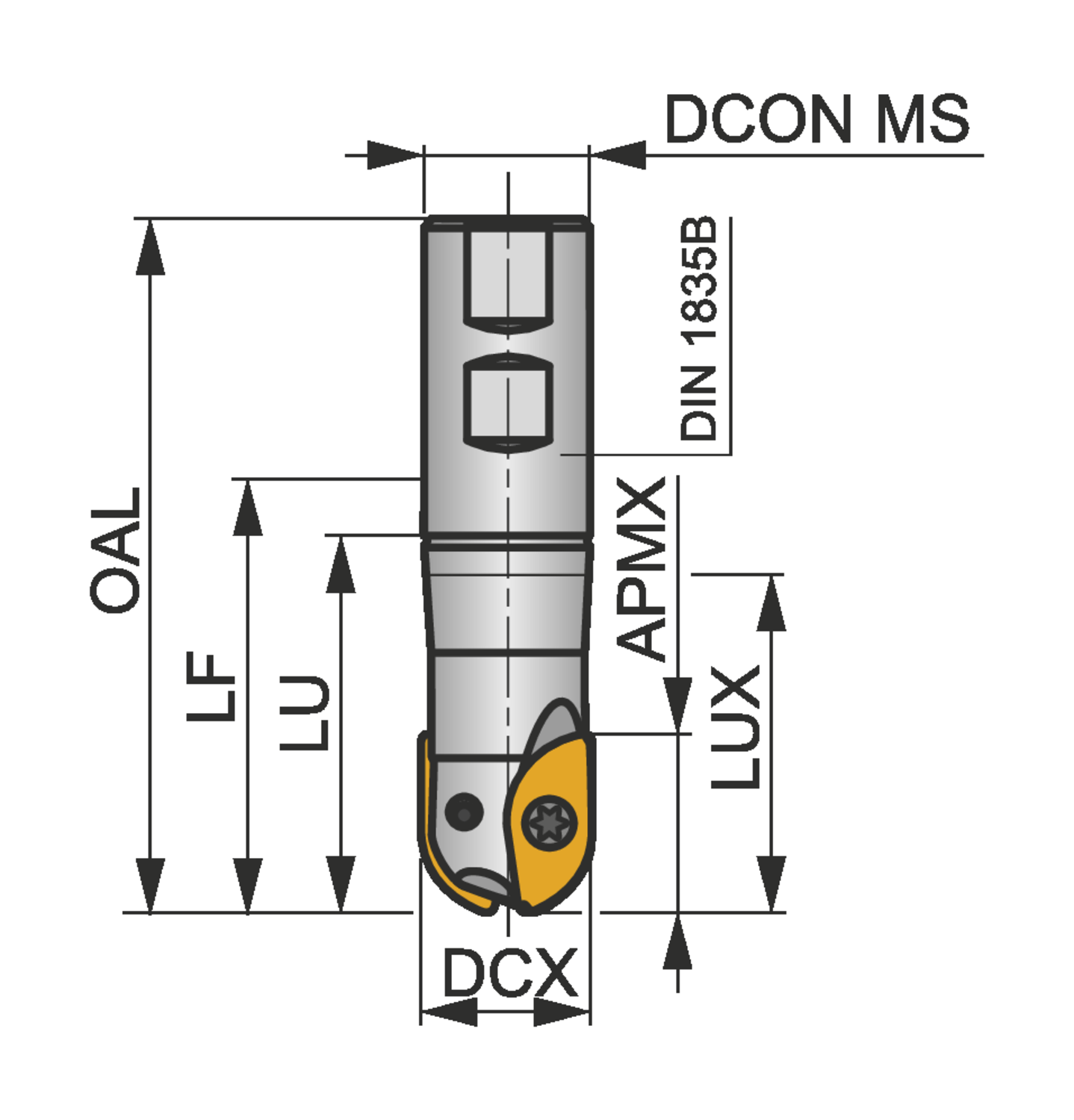

Axial rake angle (GAMP)
-10
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.787
Connection diameter - millimeter (DCON MS)
20
Connection size code machine side (CZC MS)
-
Cutting diameter maximum - inch (DCX)
0.472
Cutting diameter maximum - millimeter (DCX)
12
Depth of cut maximum - millimeter (APMX)
10.7
Functional length - millimeter (LF)
66.5
Hand (Cutting direction)
Right
Insert group used in the tool
ZP 12
Insert index count (NOI)
2
Maximum ramping angle (RMPX)
10.7
Not recomended
Finishing - very good surface quality
Overall length - inch (OAL)
3.583
Overall length - millimeter (OAL)
91
Peripheral effective cutting edge count (ZEFP)
2
Possible use
Roughing
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
21000
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
40
Usable Length maximum - millimeter (LUX)
21.5
Copy end mill with double negative geometry which utilises 2 off ZP 12.. single-sided inserts, cutting diameter 12mm with 20mm Weldon shank according to DIN 1835B, 40mm functional and 91mm overall length for copy milling with a maximum depth of cut of 10,7mm
