Pramet 150A05R-ISMORC10-C 7455508 Shell Milling Cutter - Copy And Profile
MODEL 7455508
$330.06 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

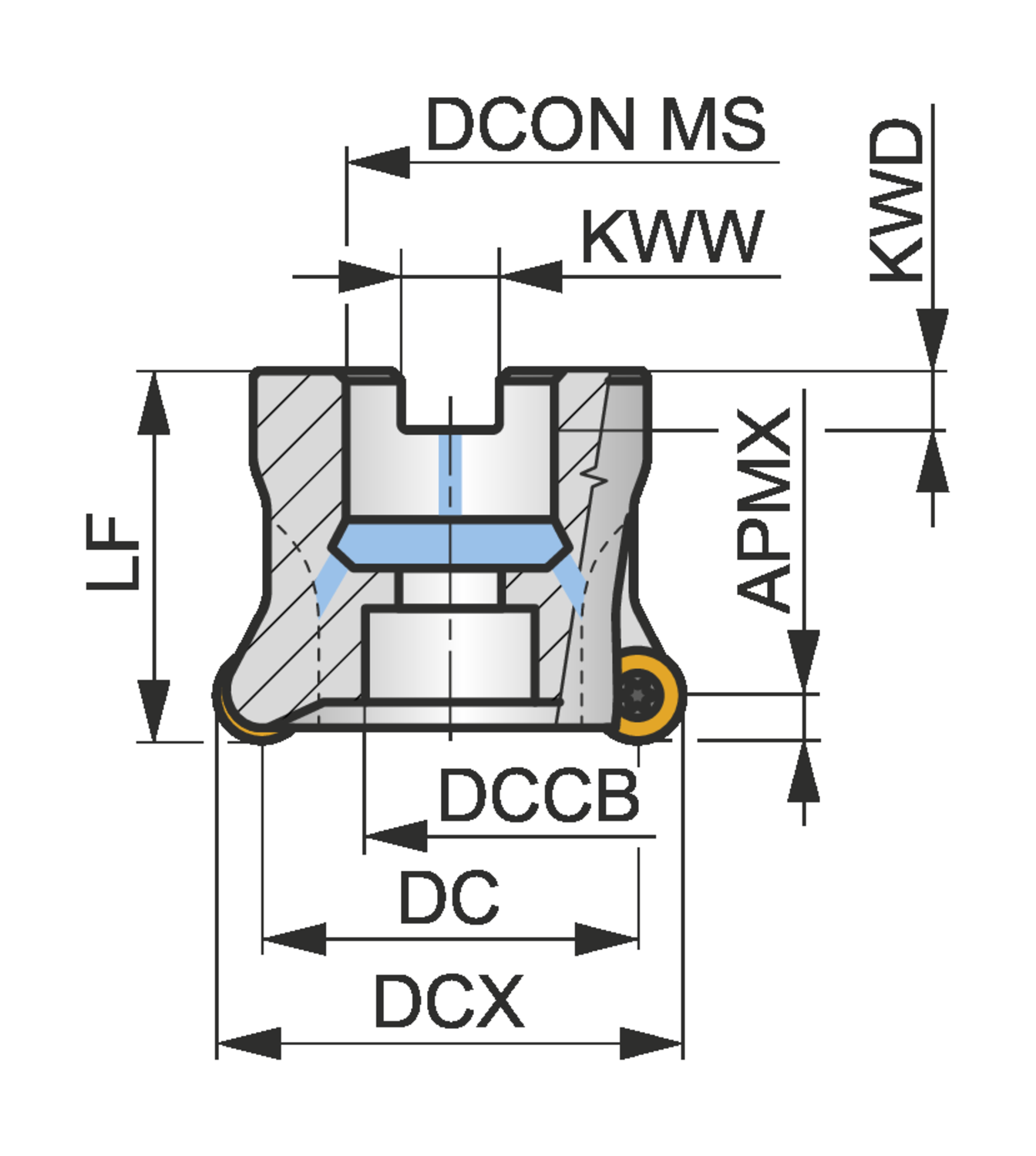

Axial rake angle (GAMP)
-7
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.5
Connection diameter - millimeter (DCON MS)
12.7
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
0.433
Counterbore diameter connection bore - millimeter (DCCB)
11
Cutting diameter - inch (DC)
1.106
Cutting diameter - millimeter (DC)
28.1
Cutting diameter maximum - inch (DCX)
1.5
Cutting diameter maximum - millimeter (DCX)
38.1
Functional length - inch (LF)
1.575
Hand (Cutting direction)
Right
Keyway depth - inch (KWD)
0.165
Keyway width - inch (KWW)
0.258
Peripheral effective cutting edge count (ZEFP)
5
Radial rake angle (GAMF)
-2.2
Rotational speed maximum (RPMX)
16500
Shank
Shell mill DIN 8030 A
Copy face mill with double negative geometry which utilises 5 off RCMT 10T3MO.. single-sided inserts, cutting diameter 1.500'' with .500'' connection bore according to DIN 8030-A, 1.575'' protrusion length, through coolant for face milling, copy milling, ramping, helical milling and plunge milling with a maximum depth of cut of .197''
