Pramet 160C07R-SMORC20-C 7155926 Shell Milling Cutter - Copy And Profile
MODEL 7155926
$717.70 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
-7
Clamping Type Code (MTP)
Screw clamping through hole

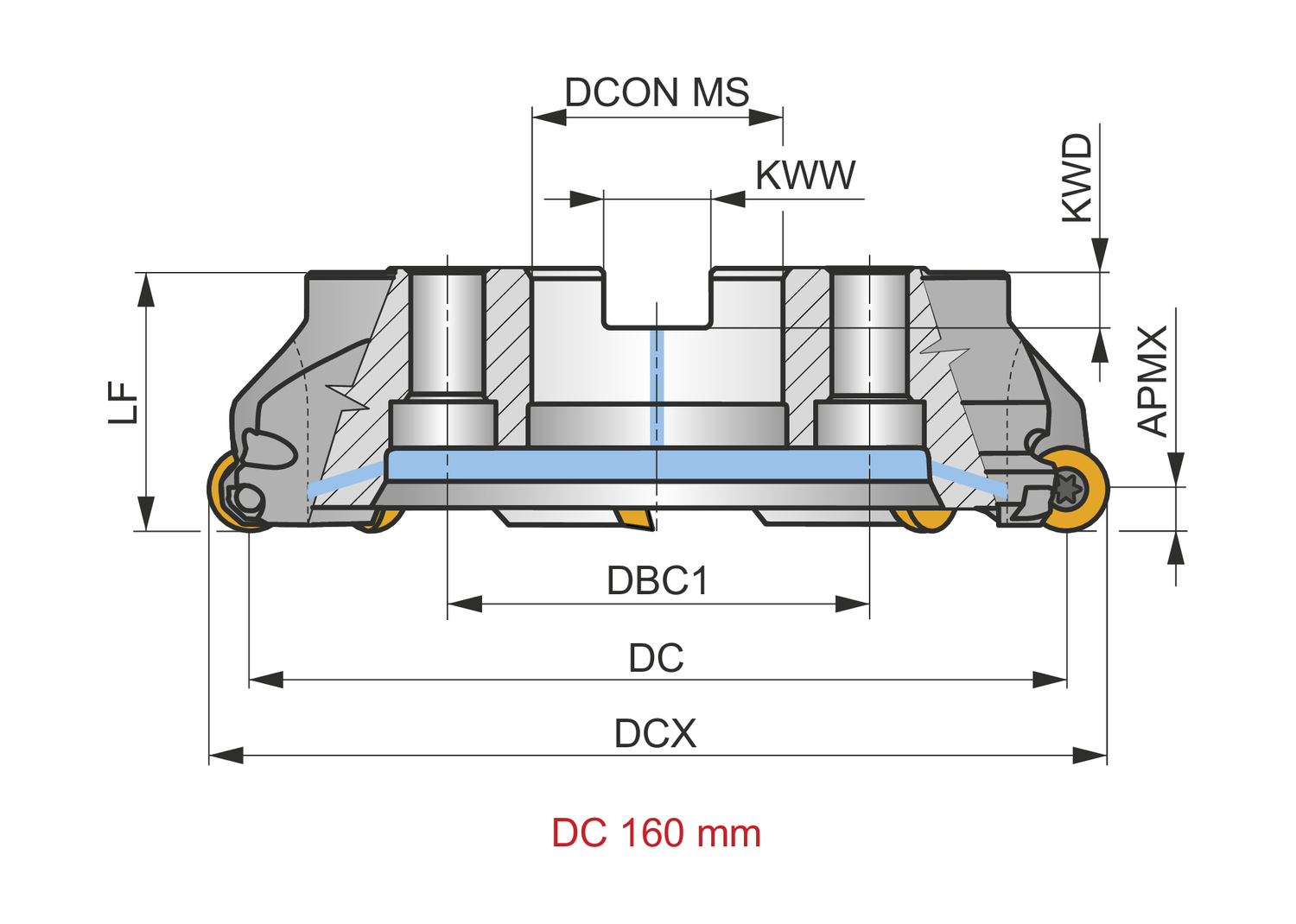

Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
5.512
Cutting diameter - millimeter (DC)
140
Cutting diameter maximum - inch (DCX)
6.299
Cutting diameter maximum - millimeter (DCX)
160
Functional length - millimeter (LF)
63
Hand (Cutting direction)
Right
Insert index count (NOI)
7
Keyway depth - millimeter (KWD)
9
Keyway width - millimeter (KWW)
16.4
Peripheral effective cutting edge count (ZEFP)
7
Radial rake angle (GAMF)
-0.9
Rotational speed maximum (RPMX)
5400
Shank
Shell mill DIN 8030 C
Copy face mill with double negative geometry which utilises 7 off RCMT 2006MO.. single-sided inserts, cutting diameter 160mm with 40mm connection bore according to DIN 8030-C, 63mm protrusion length, through coolant for face milling, copy milling, ramping, helical milling and progressive plunge milling with a maximum depth of cut of 10.0mm
