Pramet 16A3R025M08-SCN05C-C 7636621 Modular Head For Copy And Profile Milling
MODEL 7636621
$277.62 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

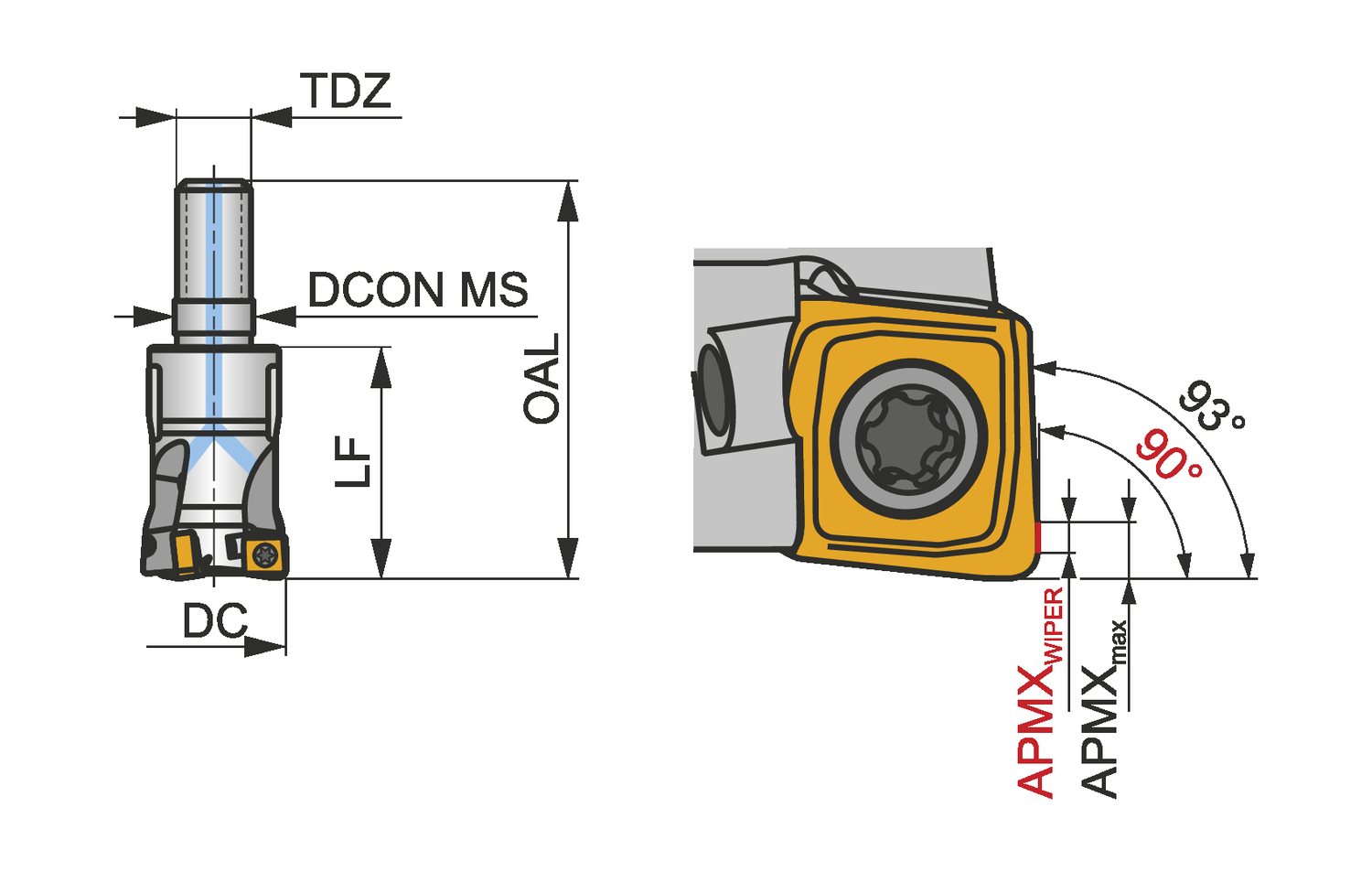

Axial rake angle (GAMP)
-7.8
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.335
Connection diameter - millimeter (DCON MS)
8.5
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.63
Cutting diameter - millimeter (DC)
16
Functional length - millimeter (LF)
25
Hand (Cutting direction)
Right
Insert index count (NOI)
3
Overall length - inch (OAL)
1.693
Overall length - millimeter (OAL)
43
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
-13.5
Shank
Threaded coupling
Thread diameter size (TDZ)
M8
Copy face mill with double negative geometry which utilises 3 off CNHX 0502.. double-sided inserts, cutting diameter 16mm with 93° approach angle and M8 threaded shank for standard modular tool-holders, 25mm protrusion length, through coolant for face milling, copy milling, shallow shoulder milling, deep shoulder milling, ramping and plunge milling with a maximum depth of cut of 0.5mm
