Pramet 20A3R030M10-SWN04C-C 7636664 Modular Head For Copy And Profile Milling
MODEL 7636664
$321.83 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

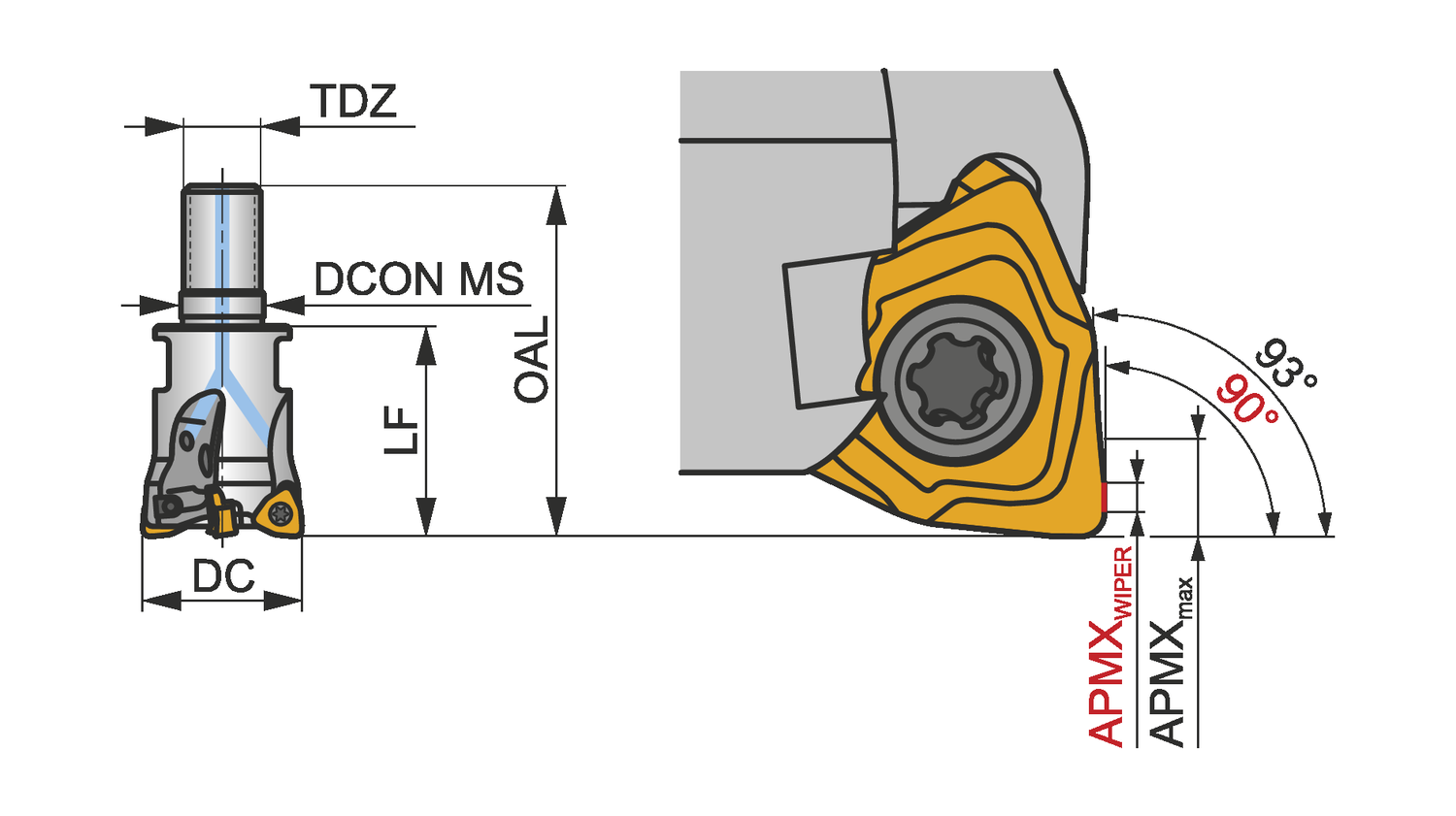

Axial rake angle (GAMP)
-8
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.413
Connection diameter - millimeter (DCON MS)
10.5
Cooling (CSP)
1
Cutting diameter - inch (DC)
0.787
Cutting diameter - millimeter (DC)
20
Functional length - millimeter (LF)
30
Hand (Cutting direction)
Right
Insert index count (NOI)
3
Overall length - inch (OAL)
1.929
Overall length - millimeter (OAL)
49
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
-12
Shank
Threaded coupling
Thread diameter size (TDZ)
M10
Tool cutting edge angle (KAPR)
90
Copy face mill with double negative geometry which utilises 3 off WNHX 0403.. double-sided inserts, cutting diameter 20mm with 93° approach angle and M10 threaded shank for standard modular tool-holders, 30mm protrusion length, through coolant for face milling, copy milling, shallow shoulder milling, deep shoulder milling, ramping and plunge milling with a maximum depth of cut of 0.5mm
