Pramet 20E4R028M10-SRD07-CF 7999275 Modular Head For Copy And Profile Milling
MODEL 7999275
$251.91 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

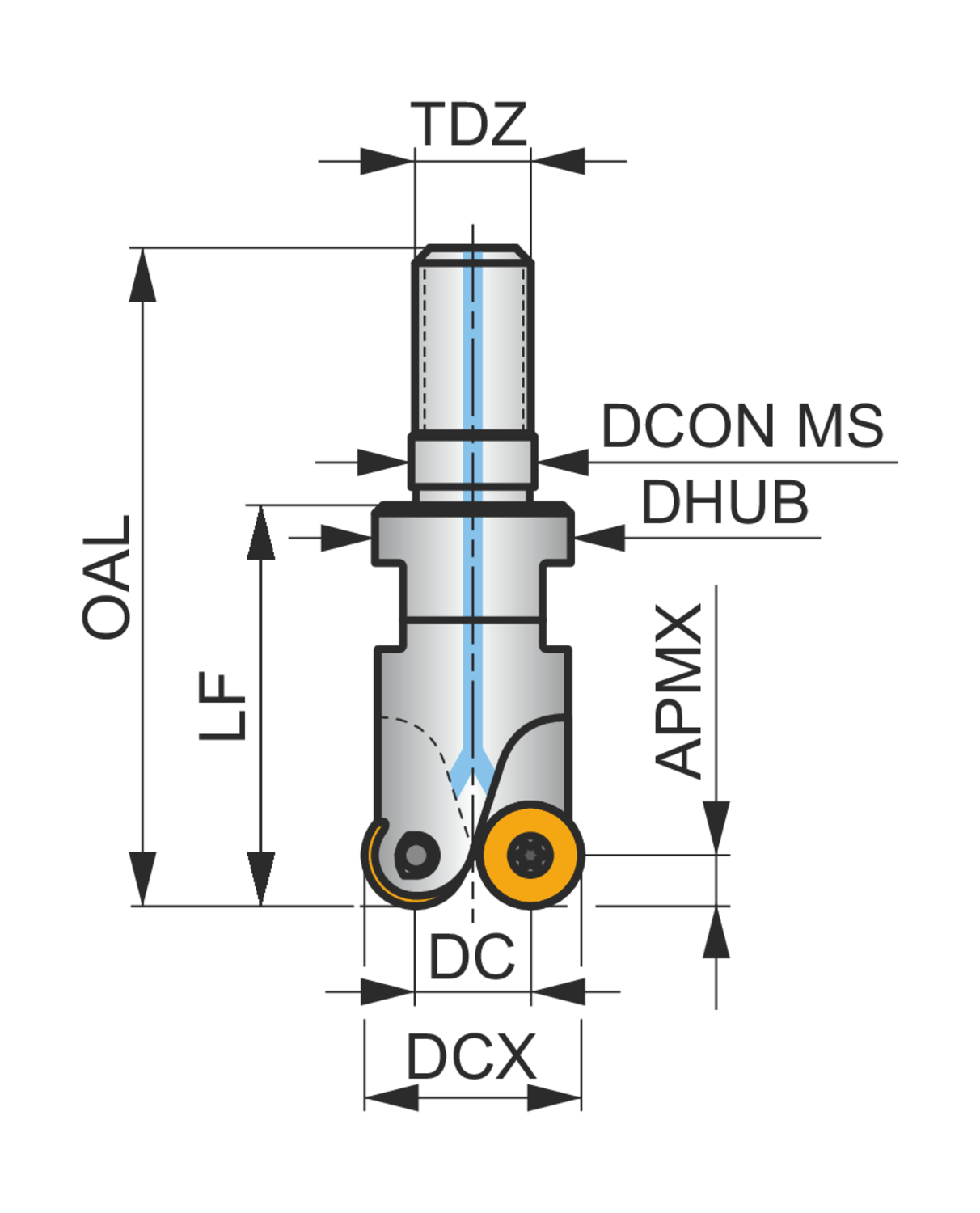

Axial rake angle (GAMP)
0
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.492
Connection diameter - millimeter (DCON MS)
12.5
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.512
Cutting diameter - millimeter (DC)
13
Cutting diameter maximum - inch (DCX)
0.787
Cutting diameter maximum - millimeter (DCX)
20
Cutting pitch differential (CPDF)
0
Depth of cut maximum - millimeter (APMX)
2
Functional length - millimeter (LF)
28
Hand (Cutting direction)
Right
Hub diameter - millimeter (DHUB)
18
Insert index count (NOI)
4
Overall length - inch (OAL)
1.85
Overall length - millimeter (OAL)
47
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
-8
Rotational speed maximum (RPMX)
38200
Shank
Threaded coupling
Thread diameter size (TDZ)
M10
Copy face mill with double negative geometry which utilises 4 of RD.. 0702MO.. or RD.. 07T1MO.. single-sided inserts, cutting diameter to maximum 20mm with M10 threaded shank for standard modular tool-holders, 28mm functional and 47mm protrusion length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2mm
