Pramet 20K2R045A20-SLC20-A 6756699 End Milling Cutter - Copy And Profile
MODEL 6756699
$203.59 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

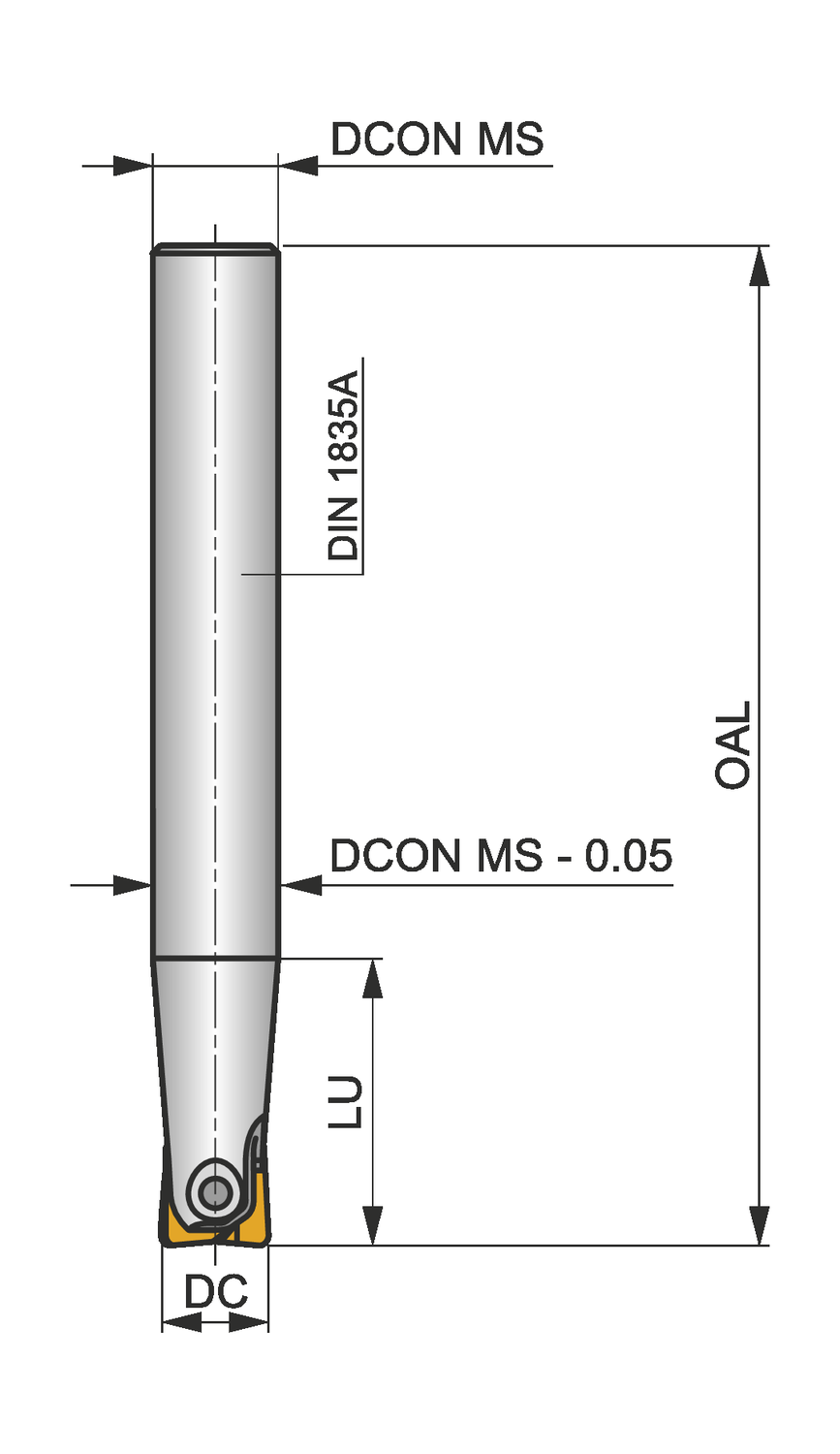

Body diameter - inch (BD)
0.709
Body diameter - millimeter (BD)
18
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.787
Connection diameter - millimeter (DCON MS)
20
Cutting diameter - inch (DC)
0.787
Cutting diameter - millimeter (DC)
20
Insert group used in the tool
LC 20-KP, LC 20-KPF
Insert index count (NOI)
1
Overall length - inch (OAL)
6.299
Overall length - millimeter (OAL)
160
Peripheral effective cutting edge count (ZEFP)
2
Possible use
Finishing
Primary use
Roughing
Rotational speed maximum (RPMX)
16000
Shank
Cylindrical shank DIN 1835A
Usable Length - millimeter (LU)
45
Copy end mill which utilises 1 off LC 20-KP or LC 20-KPF single-sided insert, cutting diameter 20mm with 20mm parallel shank according to DIN 1835A, 45mm functional and 160mm overall length for copy milling with a maximum depth of cut of 1.0-3.0mm
