Pramet 20L2R030M10-SZP20-C 6761664 Modular Head For Copy And Profile Milling
MODEL 6761664
$376.33 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

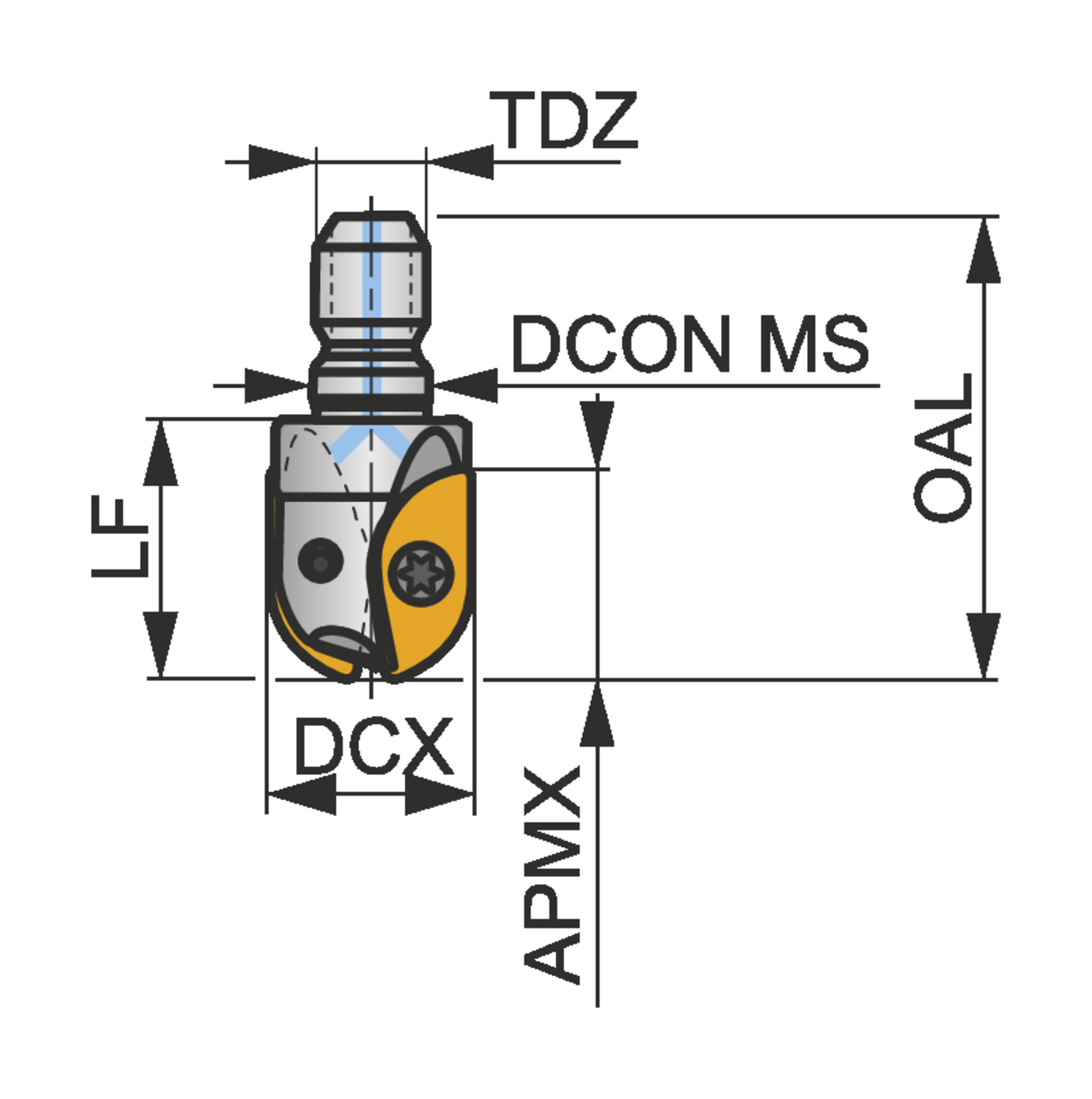

Axial rake angle (GAMP)
-10
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.413
Connection diameter - millimeter (DCON MS)
10.5
Connection size code machine side (CZC MS)
-
Coolant supply property (CSP)
1
Cutting diameter maximum - inch (DCX)
0.787
Cutting diameter maximum - millimeter (DCX)
20
Depth of cut maximum - millimeter (APMX)
17.9
Functional length - millimeter (LF)
30
Hand (Cutting direction)
Right
Insert group used in the tool
ZP 20
Insert index count (NOI)
2
Maximum ramping angle (RMPX)
17.9
Not recomended
Finishing - very good surface quality
Peripheral effective cutting edge count (ZEFP)
2
Possible use
Medium machining
Radial rake angle (GAMF)
0
Shank
Threaded coupling
Thread diameter size (TDZ)
M10
Copy end mill with double negative geometry which utilises 2 off ZP 20.. single-sided inserts, cutting diameter 20mm with M10 threaded shank for standard modular tool-holders, 30mm protrusion length, through coolant for copy milling with a maximum depth of cut of 17,9mm
