Pramet 20L2R050A20-SZP20-C 6761622 End Milling Cutter - Copy And Profile
MODEL 6761622
$388.67 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

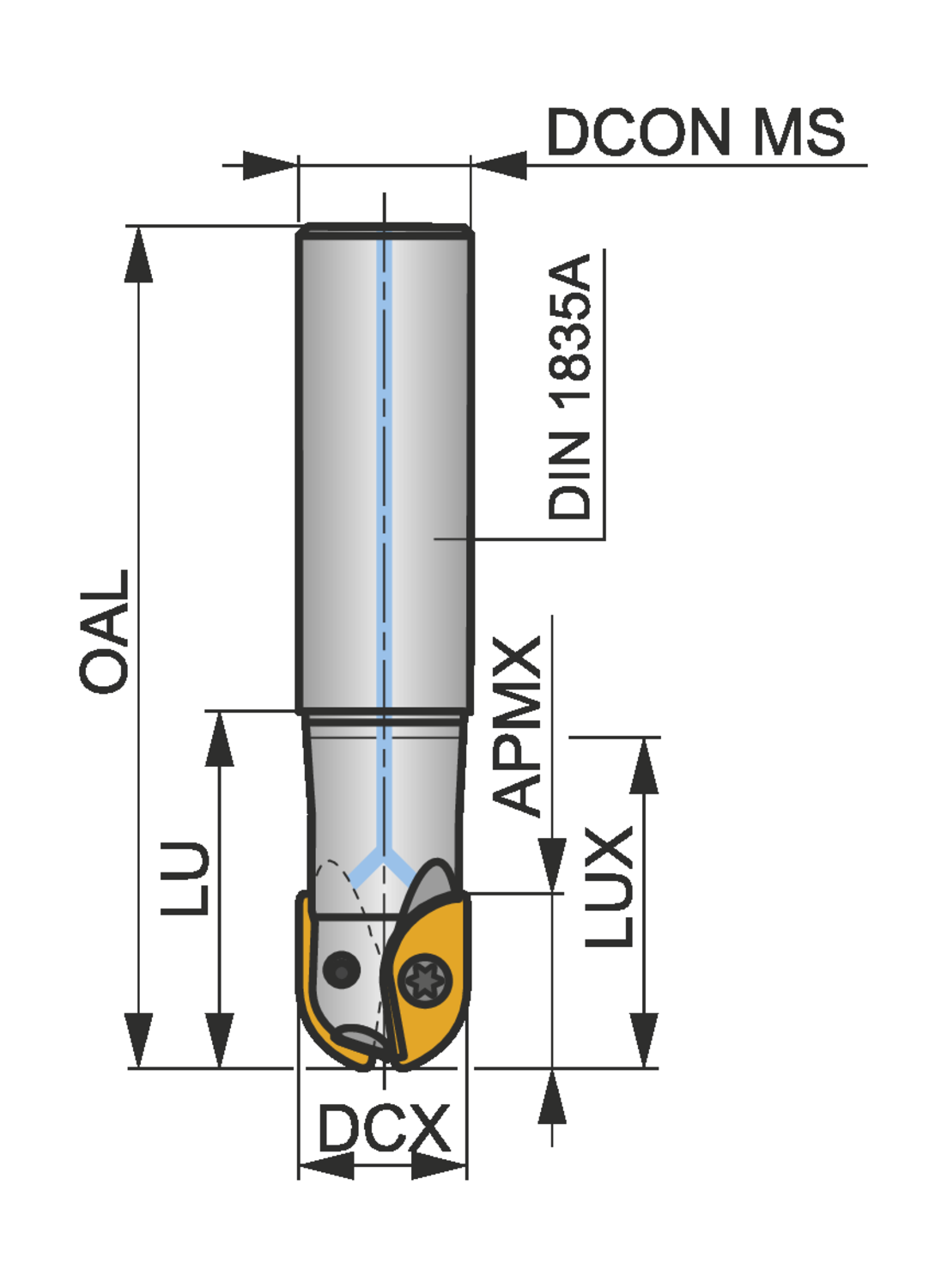

Axial rake angle (GAMP)
-10
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.787
Connection diameter - millimeter (DCON MS)
20
Connection size code machine side (CZC MS)
-
Coolant supply property (CSP)
1
Cutting diameter maximum - inch (DCX)
0.787
Cutting diameter maximum - millimeter (DCX)
20
Depth of cut maximum - millimeter (APMX)
17.9
Hand (Cutting direction)
Right
Insert group used in the tool
ZP 20
Insert index count (NOI)
2
Maximum ramping angle (RMPX)
17.9
Not recomended
Finishing - very good surface quality
Overall length - inch (OAL)
9.843
Overall length - millimeter (OAL)
250
Peripheral effective cutting edge count (ZEFP)
2
Possible use
Roughing
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
24000
Shank
Cylindrical shank DIN 1835A
Usable Length - millimeter (LU)
50
Copy end mill with double negative geometry which utilises 2 off ZP 20.. single-sided inserts, cutting diameter 20mm with 20mm parallel shank according to DIN 1835A, 50mm functional and 250mm overall length, through coolant for copy milling with a maximum depth of cut of 17,9mm
