Pramet 20L2R100E03-SZP20 6761655 End Milling Cutter - Copy And Profile
MODEL 6761655
$422.60 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

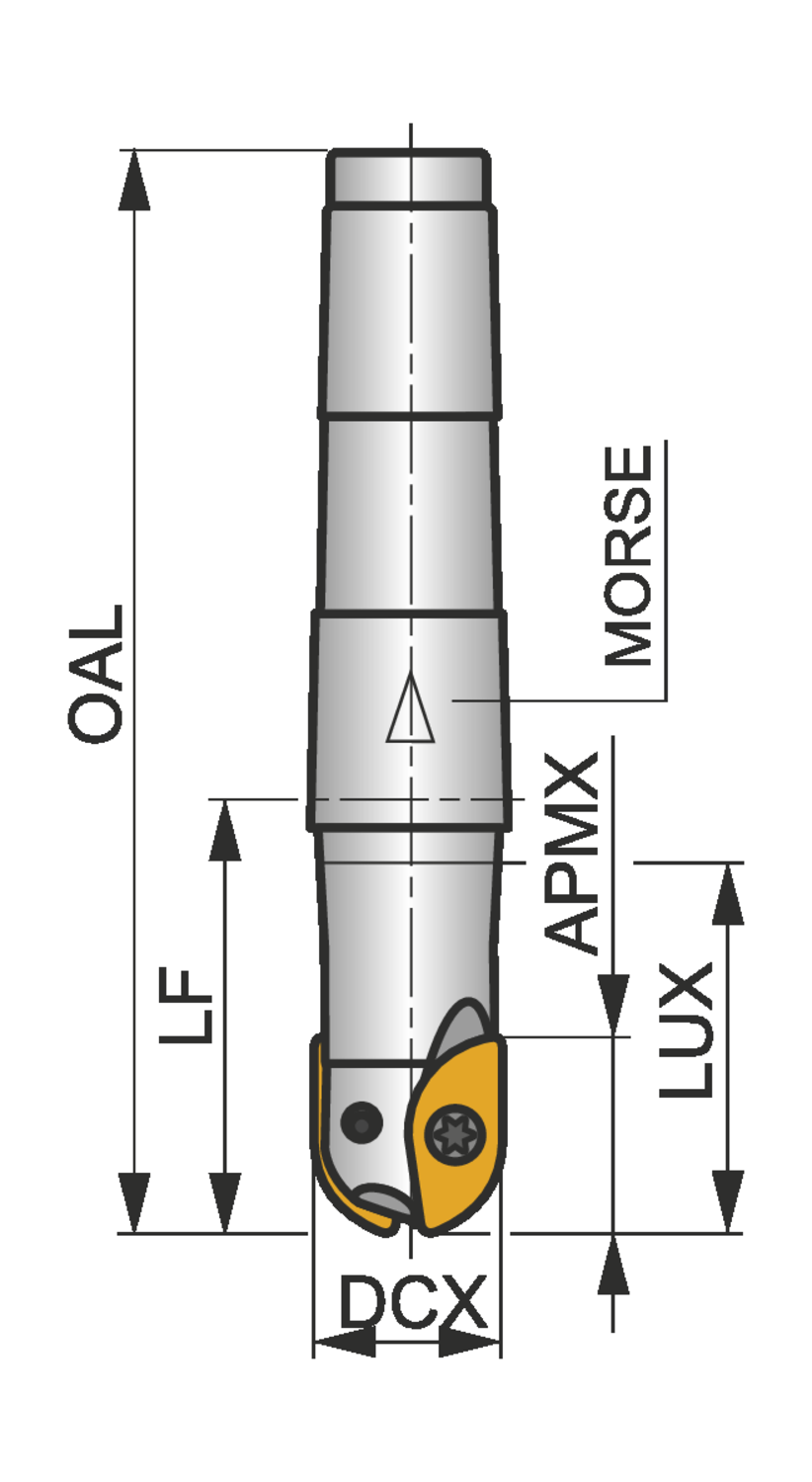

Axial rake angle (GAMP)
-10
Clamping Type Code (MTP)
Screw clamping through hole
Connection size code machine side (CZC MS)
3
Cutting diameter maximum - inch (DCX)
0.787
Cutting diameter maximum - millimeter (DCX)
20
Depth of cut maximum - millimeter (APMX)
17.9
Functional length - millimeter (LF)
100
Hand (Cutting direction)
Right
Insert group used in the tool
ZP 20
Insert index count (NOI)
2
Maximum ramping angle (RMPX)
17.9
Not recomended
Finishing - very good surface quality
Overall length - inch (OAL)
7.126
Overall length - millimeter (OAL)
181
Peripheral effective cutting edge count (ZEFP)
2
Possible use
Medium machining
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
24000
Shank
Morse shank DIN 228-1
Usable Length maximum - millimeter (LUX)
77.4
Copy end mill with double negative geometry which utilises 2 off ZP 20.. single-sided inserts, cutting diameter 20mm with MT 3 morse taper shank according to DIN 228-1A, 181mm overall length for copy milling with a maximum depth of cut of 17,9mm
