Pramet 24E2R032M12-SRD12-CF 7999320 Modular Head For Copy And Profile Milling
MODEL 7999320
$177.88 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

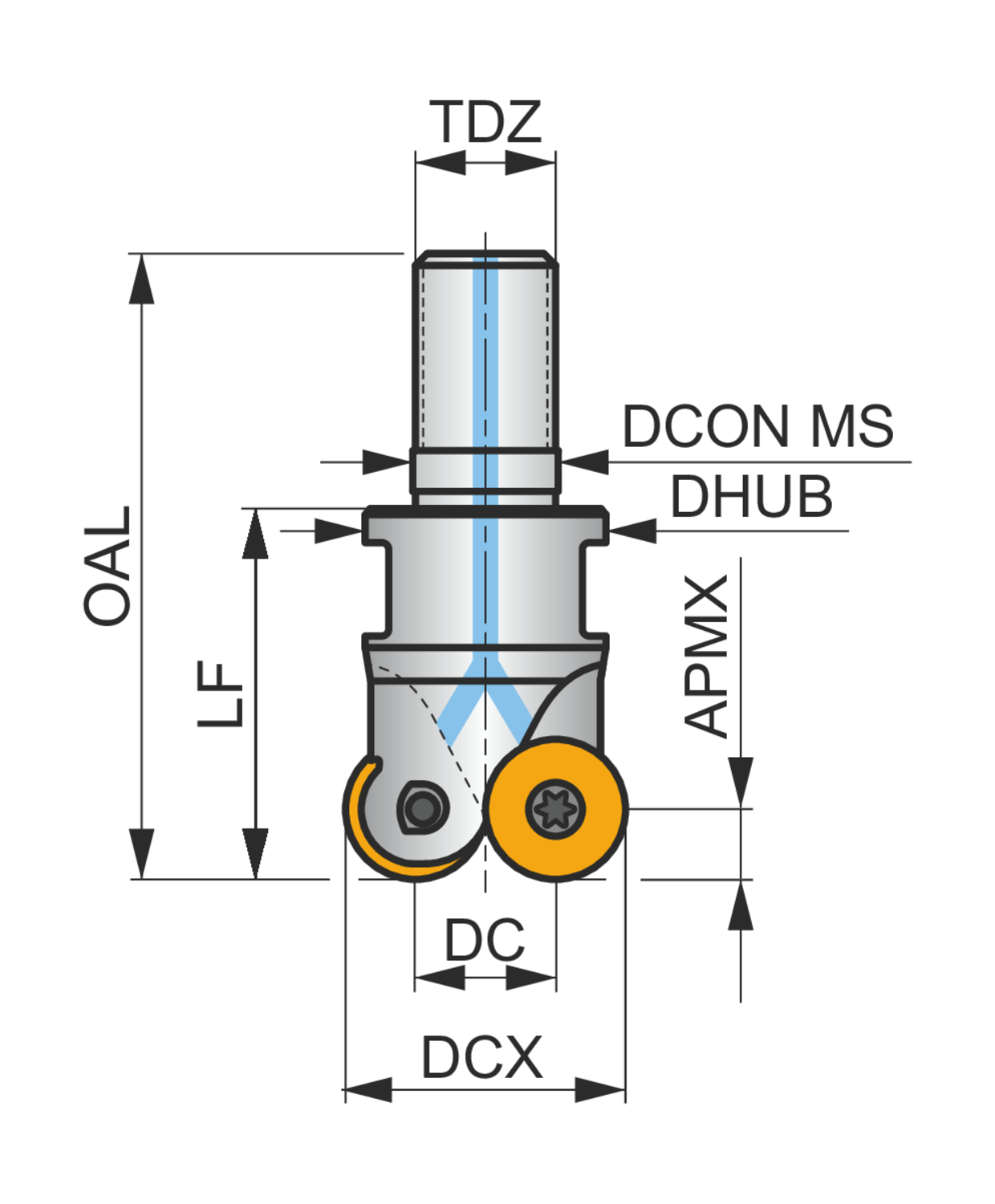

Axial rake angle (GAMP)
0
Clamping Type Code (MTP)
System SC
Connection diameter - inch (DCON MS)
0.492
Connection diameter - millimeter (DCON MS)
12.5
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.472
Cutting diameter - millimeter (DC)
12
Cutting diameter maximum - inch (DCX)
0.945
Cutting diameter maximum - millimeter (DCX)
24
Depth of cut maximum - millimeter (APMX)
3
Functional length - millimeter (LF)
32
Hand (Cutting direction)
Right
Hub diameter - millimeter (DHUB)
21
Insert index count (NOI)
2
Overall length - inch (OAL)
2.126
Overall length - millimeter (OAL)
54
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
-3
Rotational speed maximum (RPMX)
21900
Shank
Threaded coupling
Thread diameter size (TDZ)
M12
Copy face mill with double negative geometry which utilises 2 of RD.. 12T3MOT or RDHT 12T3MO-FA single-sided inserts, cutting diameter to maximum 24mm with M12 threaded shank for standard modular tool-holders, 32mm functional and 54mm protrusion length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 3mm
