Pramet 250A06R-ISMORC10-C 7455531 Shell Milling Cutter - Copy And Profile
MODEL 7455531
$410.26 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

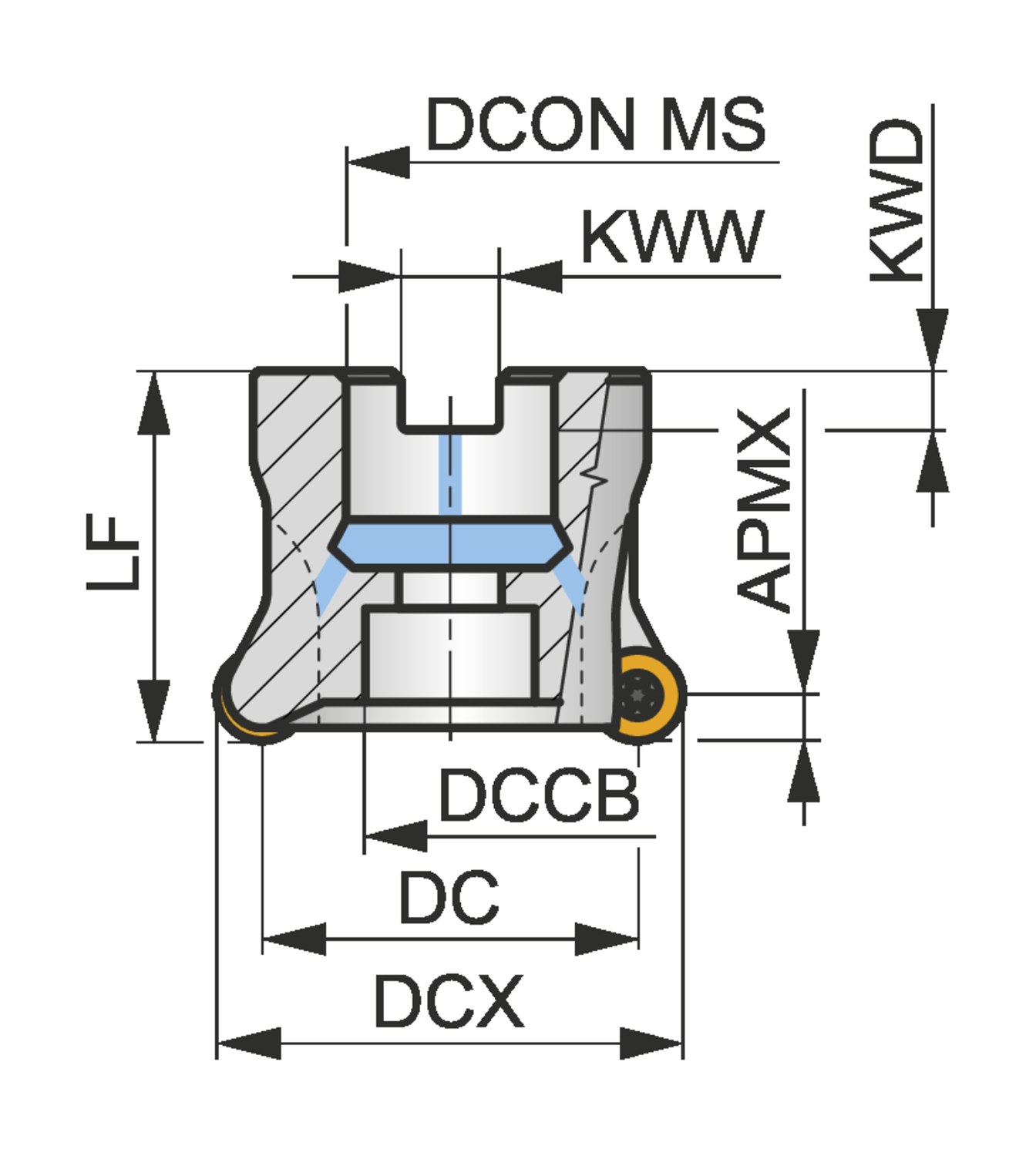

Axial rake angle (GAMP)
-7
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.75
Connection diameter - millimeter (DCON MS)
19.1
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
0.63
Counterbore diameter connection bore - millimeter (DCCB)
16
Cutting diameter - inch (DC)
2.106
Cutting diameter - millimeter (DC)
53.5
Cutting diameter maximum - inch (DCX)
2.5
Cutting diameter maximum - millimeter (DCX)
63.5
Functional length - inch (LF)
1.575
Hand (Cutting direction)
Right
Keyway depth - inch (KWD)
0.193
Keyway width - inch (KWW)
0.321
Peripheral effective cutting edge count (ZEFP)
6
Radial rake angle (GAMF)
-1.8
Rotational speed maximum (RPMX)
13200
Shank
Shell mill DIN 8030 A
Copy face mill with double negative geometry which utilises 6 off RCMT 10T3MO.. single-sided inserts, cutting diameter 2.500'' with .750'' connection bore according to DIN 8030-A, 1.575'' protrusion length, through coolant for face milling, copy milling, ramping, helical milling and plunge milling with a maximum depth of cut of .197''
