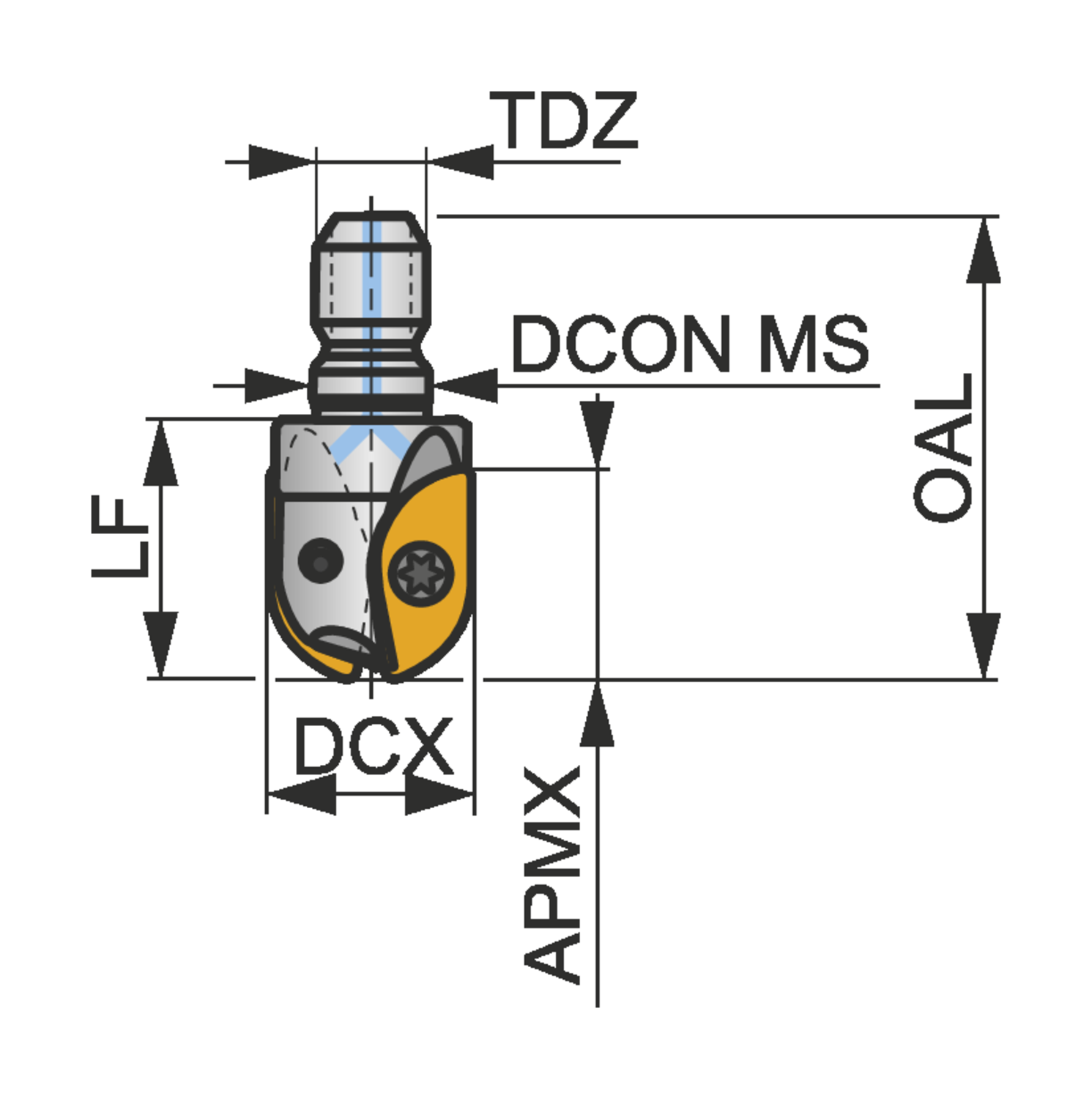

Pramet 25L2R035M12-SZP25-C modular head for copy and profile milling, 0.984 in (25 mm) maximum cutting diameter, 0.878 in (22.3 mm) maximum depth of cut, 2-insert ball nose cutter with M12 threaded coupling and through coolant. Article 6761665.

Axial rake angle (GAMP)

-10

Clamping Type Code (MTP)

Screw clamping through hole

Connection diameter - inch (DCON MS)

0.492

Connection diameter - millimeter (DCON MS)

12.5

Connection size code machine side (CZC MS)

-

Coolant supply property (CSP)

1

Cutting diameter maximum - inch (DCX)

0.984

Cutting diameter maximum - millimeter (DCX)

25

Depth of cut maximum - millimeter (APMX)

22.3

Functional length - millimeter (LF)

35

Hand (Cutting direction)

Right

Insert group used in the tool

ZP 25

Insert index count (NOI)

2

Maximum ramping angle (RMPX)

22.3

Not recomended

Finishing - very good surface quality

Peripheral effective cutting edge count (ZEFP)

2

Possible use

Medium machining

Radial rake angle (GAMF)

0

Shank

Threaded coupling

Thread diameter size (TDZ)

M12
