Pramet 25L2R080B25-SZP25-C 6761640 End Milling Cutter - Copy And Profile
MODEL 6761640
$429.80 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

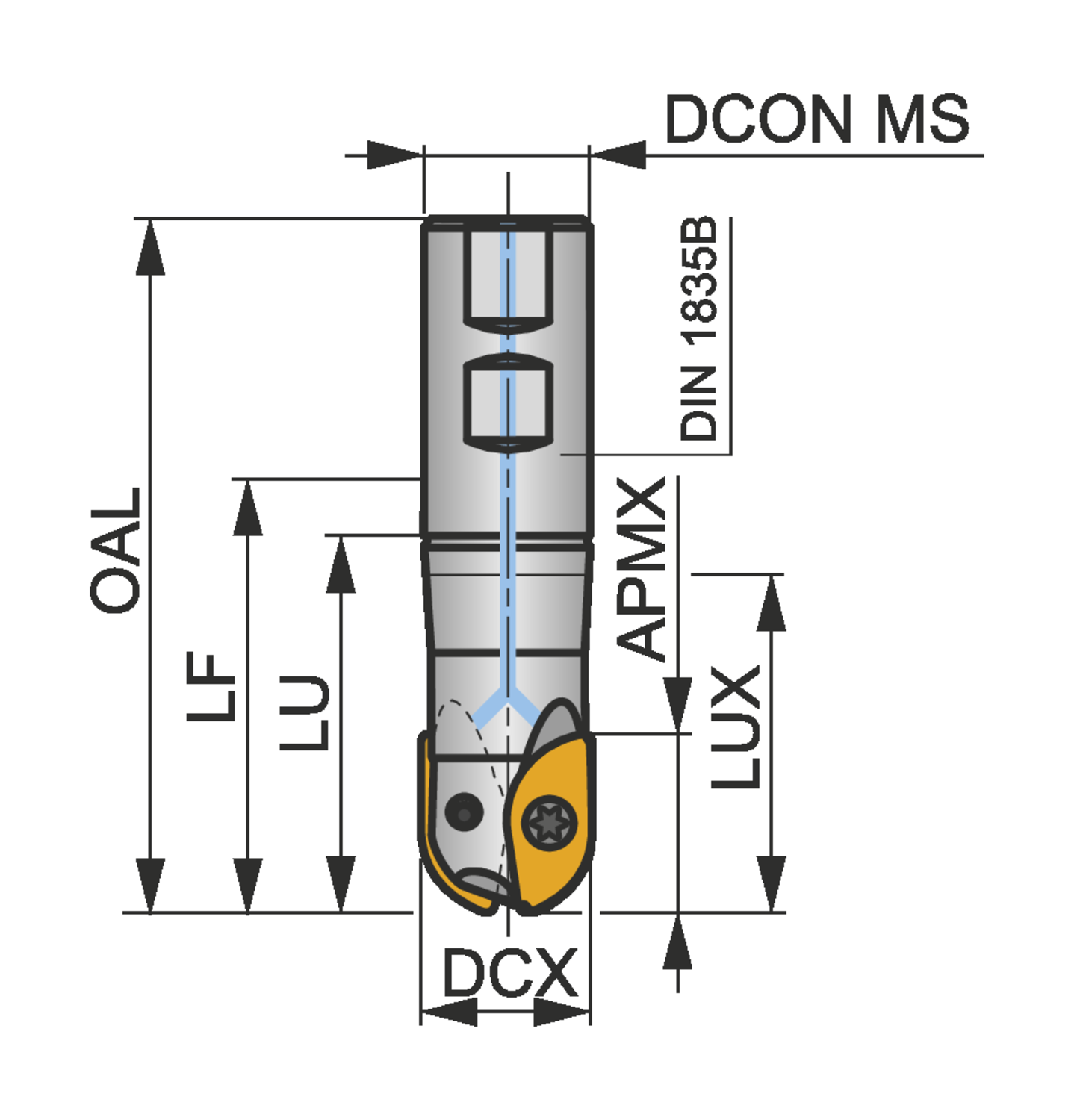

Axial rake angle (GAMP)
-10
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.984
Connection diameter - millimeter (DCON MS)
25
Connection size code machine side (CZC MS)
-
Coolant supply property (CSP)
1
Cutting diameter maximum - inch (DCX)
0.984
Cutting diameter maximum - millimeter (DCX)
25
Depth of cut maximum - millimeter (APMX)
22.3
Functional length - millimeter (LF)
105
Hand (Cutting direction)
Right
Insert group used in the tool
ZP 25
Insert index count (NOI)
2
Maximum ramping angle (RMPX)
22.3
Not recomended
Finishing - very good surface quality
Overall length - inch (OAL)
5.394
Overall length - millimeter (OAL)
137
Peripheral effective cutting edge count (ZEFP)
2
Possible use
Roughing
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
24000
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
80
Copy end mill with double negative geometry which utilises 2 off ZP 25.. single-sided inserts, cutting diameter 25mm with 25mm Weldon shank according to DIN 1835B, 80mm functional and 137mm overall length, through coolant for copy milling with a maximum depth of cut of 22,3mm
