Pramet 32A6R020A25-SWN04C-C 7636663 End Milling Cutter - Copy And Profile
MODEL 7636663
$446.25 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
-8
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.984
Connection diameter - millimeter (DCON MS)
25
Cooling (CSP)
1
Cutting diameter - inch (DC)
1.26
Cutting diameter - millimeter (DC)
32
Cutting pitch differential (CPDF)
1
Hand (Cutting direction)
Right
Insert index count (NOI)
6
Overall length - inch (OAL)
7.874
Overall length - millimeter (OAL)
200
Peripheral effective cutting edge count (ZEFP)
6
Radial rake angle (GAMF)
-11.2
Rotational speed maximum (RPMX)
23500
Shank
Cylindrical shank DIN 1835A
Tool cutting edge angle (KAPR)
90
Usable Length - millimeter (LU)
20

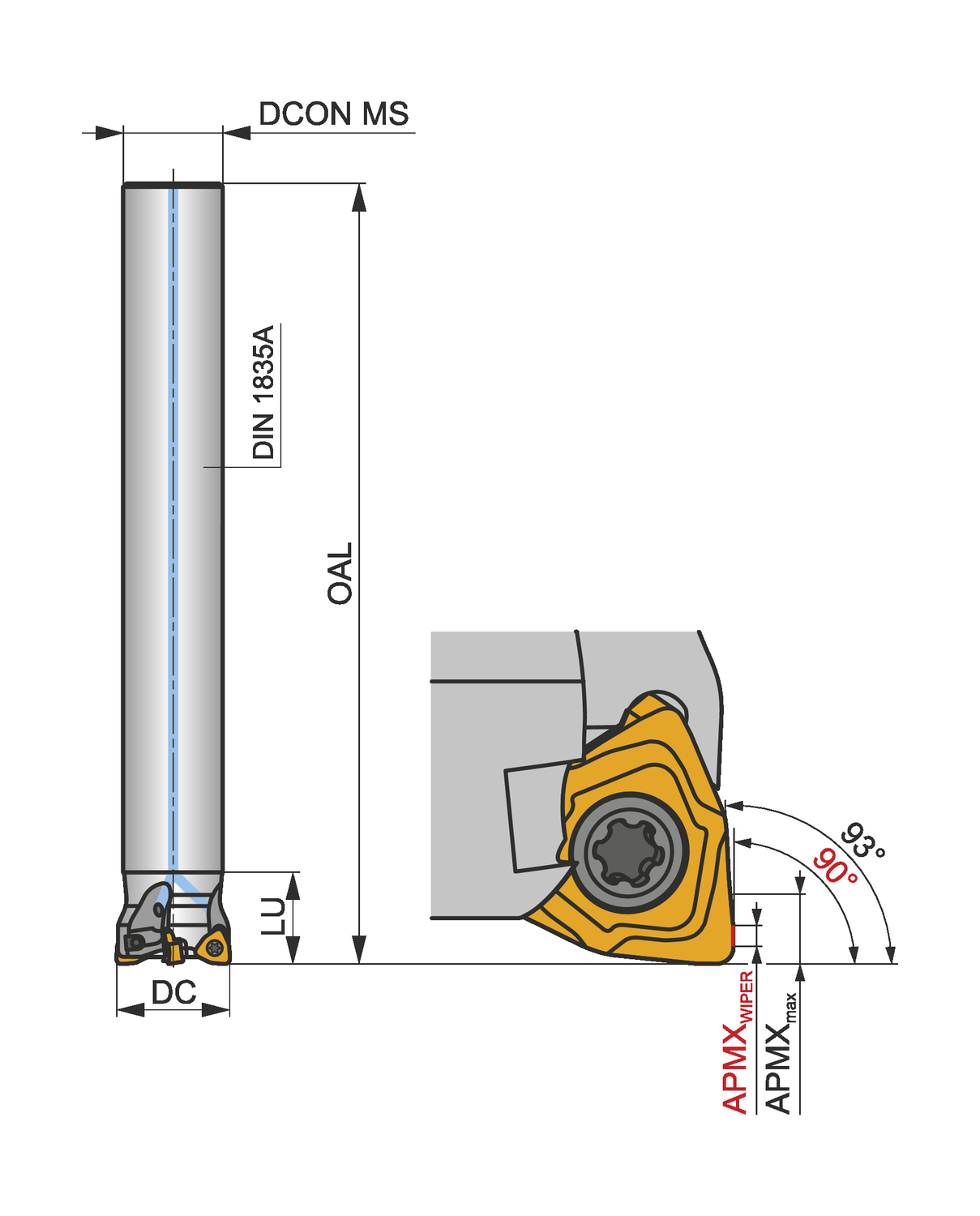

Copy face mill with double negative geometry which utilises 6 off WNHX 0403.. double-sided inserts, cutting diameter 32mm with 93° approach angle and 25mm parallel shank according to DIN 1835A, 20mm functional and 200mm overall length, through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, deep shoulder milling, ramping and plunge milling with a maximum depth of cut of 0.5mm
