Pramet 35A6R043M16-SWN04C-C 7636667 Modular Head For Copy And Profile Milling
MODEL 7636667
$435.97 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

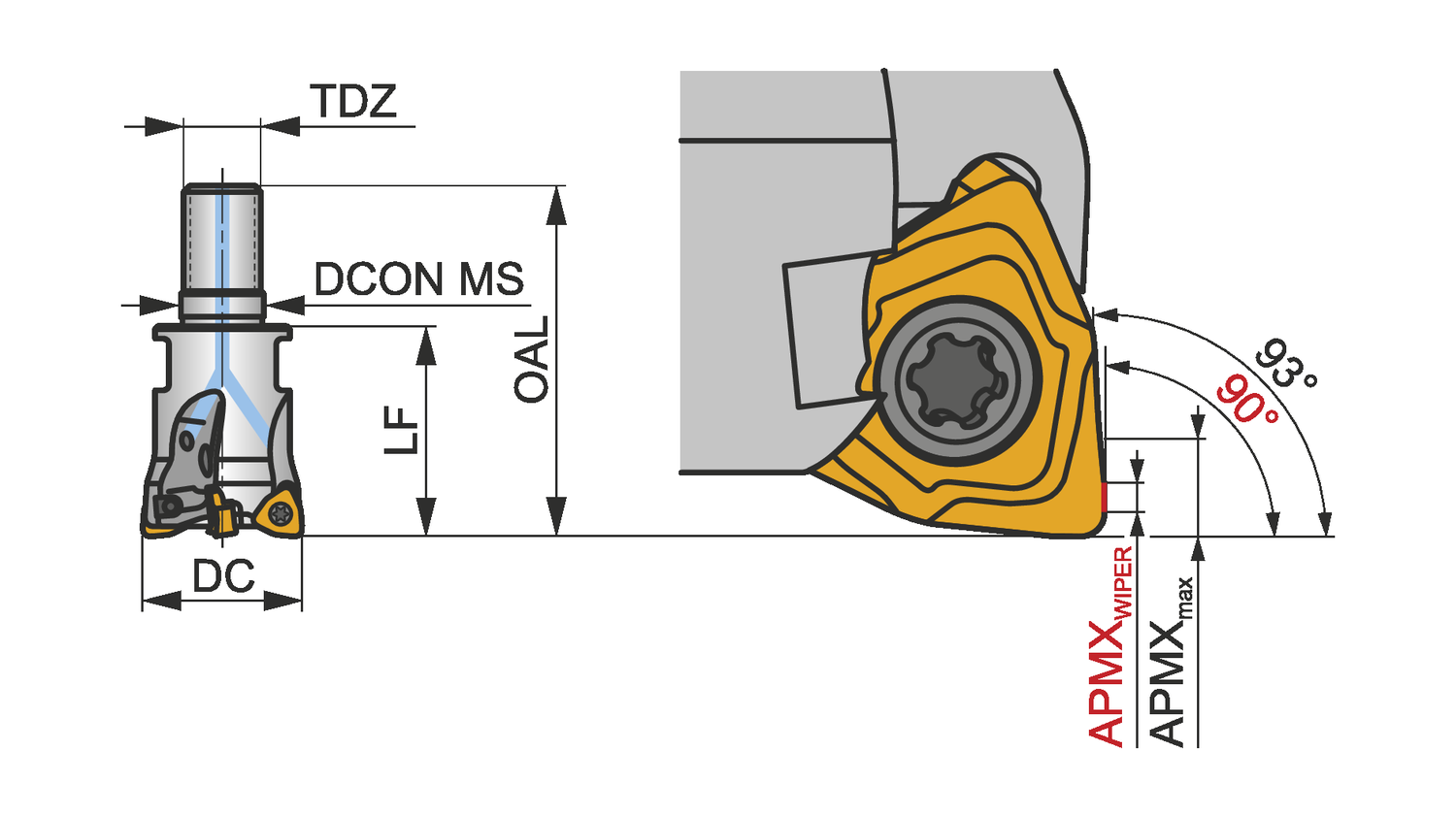

Axial rake angle (GAMP)
-8
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.669
Connection diameter - millimeter (DCON MS)
17
Cooling (CSP)
1
Cutting diameter - inch (DC)
1.378
Cutting diameter - millimeter (DC)
35
Cutting pitch differential (CPDF)
1
Functional length - millimeter (LF)
43
Hand (Cutting direction)
Right
Insert index count (NOI)
6
Overall length - inch (OAL)
2.598
Overall length - millimeter (OAL)
66
Peripheral effective cutting edge count (ZEFP)
6
Radial rake angle (GAMF)
-11.1
Shank
Threaded coupling
Thread diameter size (TDZ)
M16
Tool cutting edge angle (KAPR)
90
Copy face mill with double negative geometry which utilises 6 off WNHX 0403.. double-sided inserts, cutting diameter 35mm with 93° approach angle and M16 threaded shank for standard modular tool-holders, 43mm protrusion length, through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, deep shoulder milling, ramping and plunge milling with a maximum depth of cut of 0.5mm
