Image for Illustration purposes only. Actual product may vary
Pramet 40A05R-SMORC10-C 7444330 Shell Milling Cutter - Copy And Profile
MODEL 7444330
$330.06 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

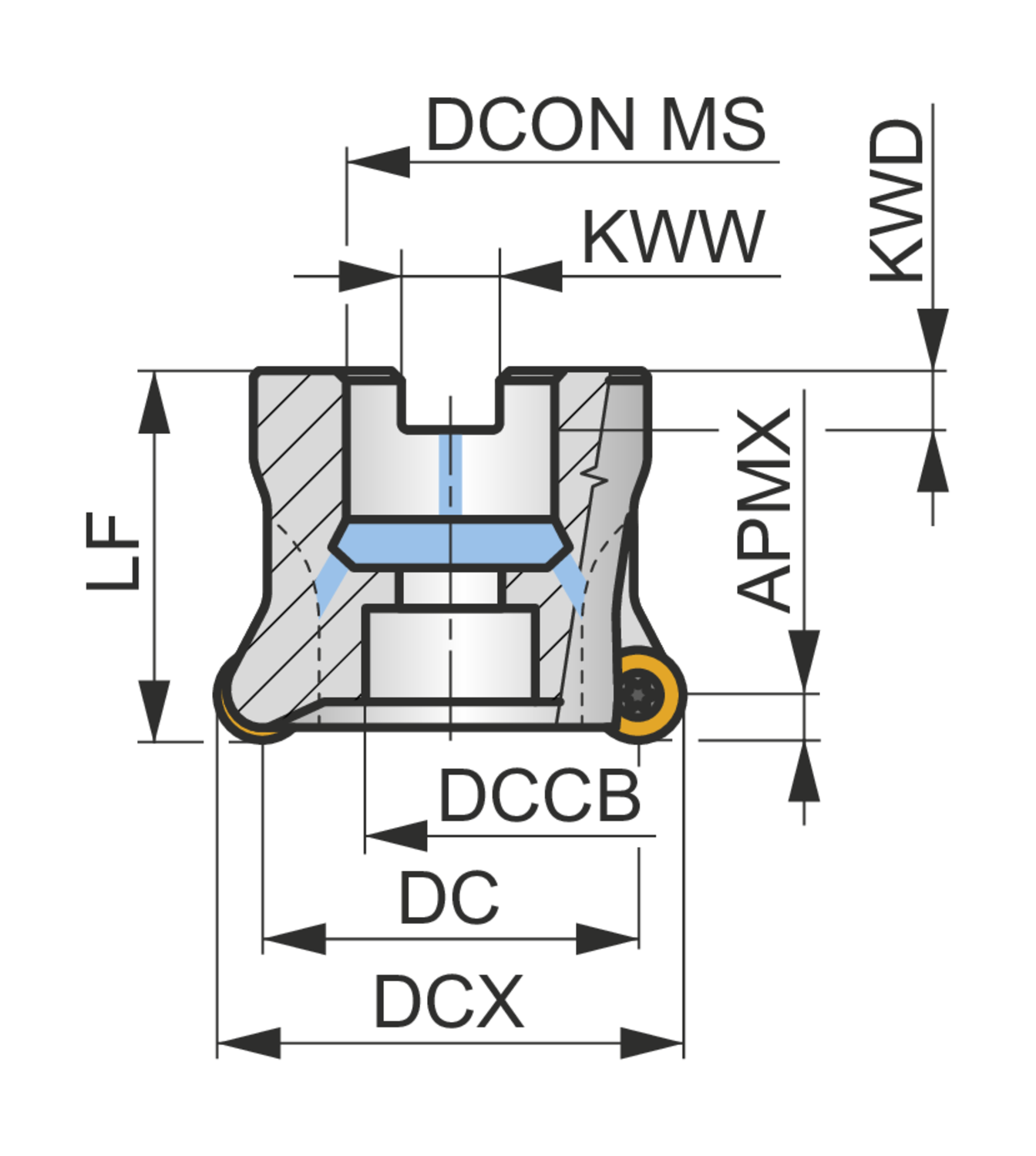

Axial rake angle (GAMP)
-7
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.63
Connection diameter - millimeter (DCON MS)
16
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
0.551
Counterbore diameter connection bore - millimeter (DCCB)
14
Cutting diameter - inch (DC)
1.181
Cutting diameter - millimeter (DC)
30
Cutting diameter maximum - inch (DCX)
1.575
Cutting diameter maximum - millimeter (DCX)
40
Functional length - millimeter (LF)
40
Hand (Cutting direction)
Right
Insert index count (NOI)
5
Keyway depth - millimeter (KWD)
5.6
Keyway width - millimeter (KWW)
8.4
Peripheral effective cutting edge count (ZEFP)
5
Radial rake angle (GAMF)
-2.2
Rotational speed maximum (RPMX)
16500
Shank
Shell mill DIN 8030 A
Copy face mill with double negative geometry which utilises 5 off RCMT 10T3MO.. single-sided inserts, cutting diameter 40mm with 16mm connection bore according to DIN 8030-A, 40mm protrusion length, through coolant for face milling, copy milling, ramping, helical milling and progressive plunge milling with a maximum depth of cut of 5.0mm
| Brand | Pramet |
| Model | 8020908 |
