Pramet 42A05R-SMORD10-CF 8025251 Shell Milling Cutter - Copy And Profile
MODEL 8025251
$343.43 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

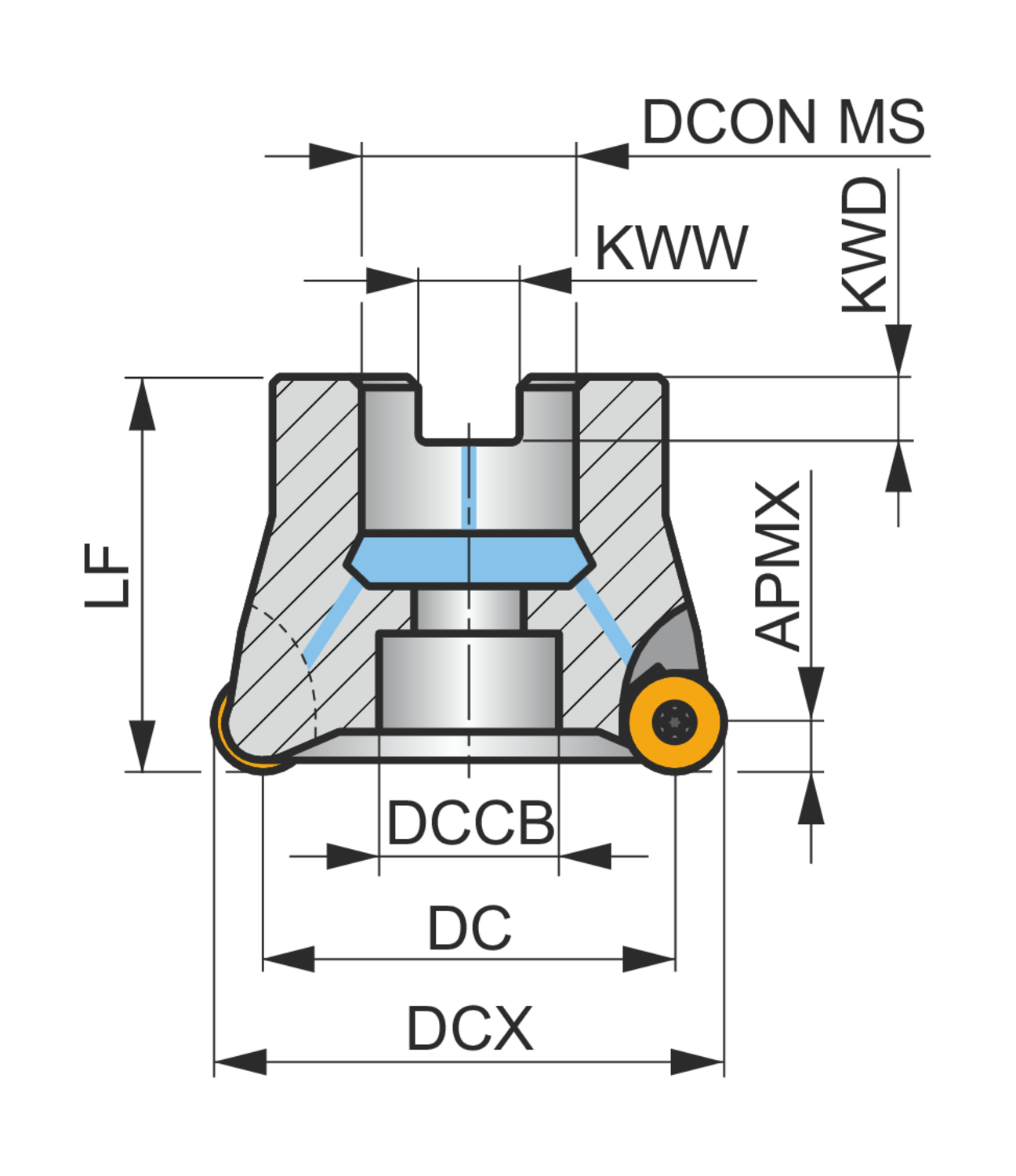

Axial rake angle (GAMP)
0
Connection diameter - inch (DCON MS)
0.63
Connection diameter - millimeter (DCON MS)
16
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
0.551
Counterbore diameter connection bore - millimeter (DCCB)
14
Cutting diameter - inch (DC)
1.26
Cutting diameter - millimeter (DC)
32
Cutting diameter maximum - inch (DCX)
1.654
Cutting diameter maximum - millimeter (DCX)
42
Depth of cut maximum - millimeter (APMX)
2.5
Functional length - millimeter (LF)
40
Hand (Cutting direction)
Right
Insert index count (NOI)
5
Keyway depth - millimeter (KWD)
8.4
Keyway width - millimeter (KWW)
8.4
Peripheral effective cutting edge count (ZEFP)
5
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
21200
Shank
Shell mill DIN 8030 A
Copy face mill with double negative geometry which utilises 5 of RD.. 1003MOT or RDHT 1003MO-FA single-sided inserts, cutting diameter to maximum 42mm with 16mm connection bore according to DIN 8030-A, 40mm functional and, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2.5mm
