Pramet 50L2R100B50-SZP50-C 6761645 End Milling Cutter - Copy And Profile
MODEL 6761645
$900.72 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
-10
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.969
Connection diameter - millimeter (DCON MS)
50
Connection size code machine side (CZC MS)
-
Coolant supply property (CSP)
1
Cutting diameter maximum - inch (DCX)
1.969
Cutting diameter maximum - millimeter (DCX)
50
Depth of cut maximum - millimeter (APMX)
44.7
Functional length - millimeter (LF)
136.5
Hand (Cutting direction)
Right
Insert group used in the tool
ZP 50
Insert index count (NOI)
2
Maximum ramping angle (RMPX)
44.7
Not recomended
Finishing - very good surface quality
Overall length - inch (OAL)
7.126
Overall length - millimeter (OAL)
181
Peripheral effective cutting edge count (ZEFP)
2
Possible use
Roughing
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
7000
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
100

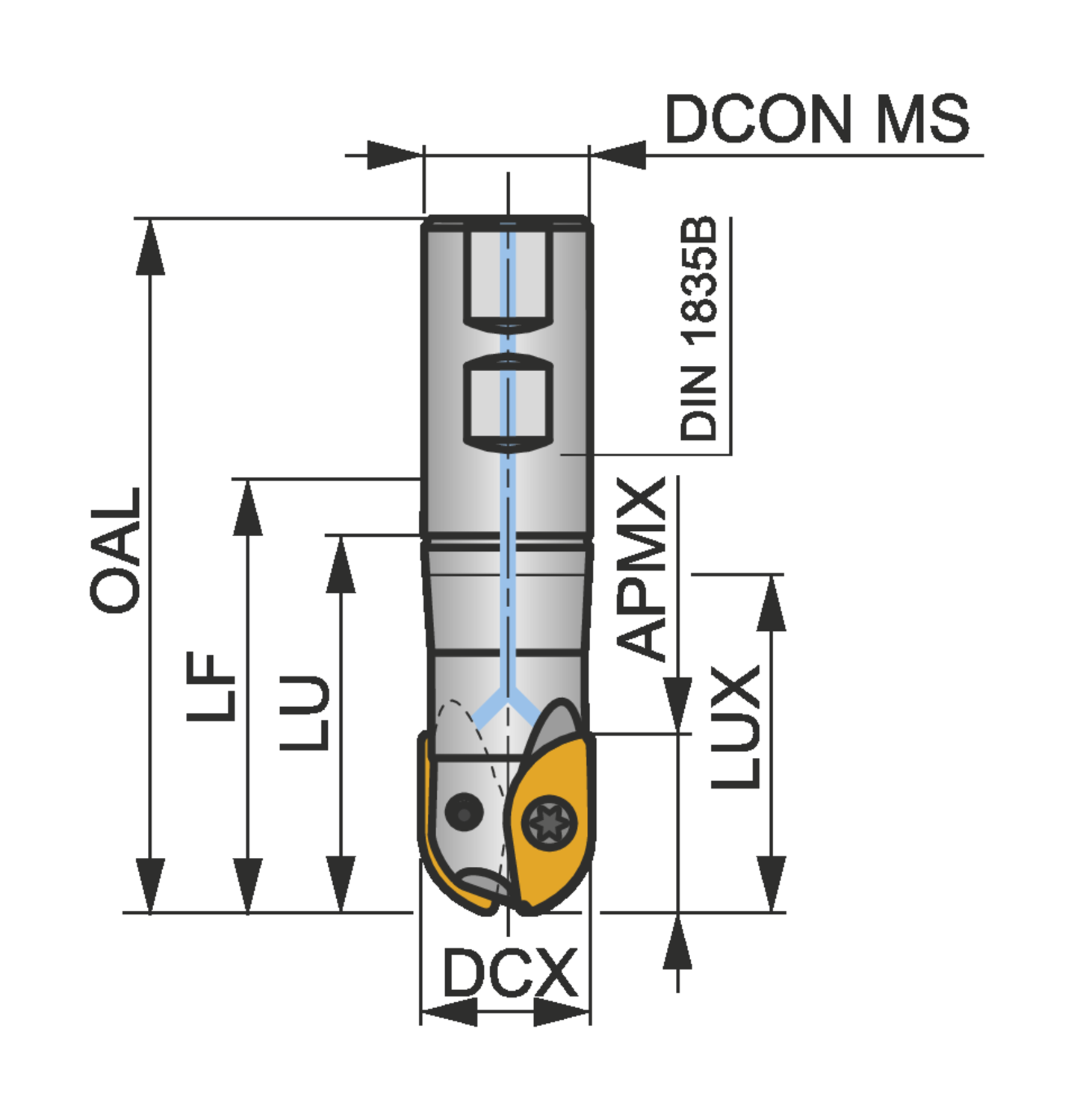

Copy end mill with double negative geometry which utilises 2 off ZP 50.. single-sided inserts, cutting diameter 50mm with 50mm Weldon shank according to DIN 1835B, 100mm functional and 181mm overall length, through coolant for copy milling with a maximum depth of cut of 44,7mm
