Pramet 52A07R-SMORD10-CF 8025252 Shell Milling Cutter - Copy And Profile
MODEL 8025252
$374.27 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

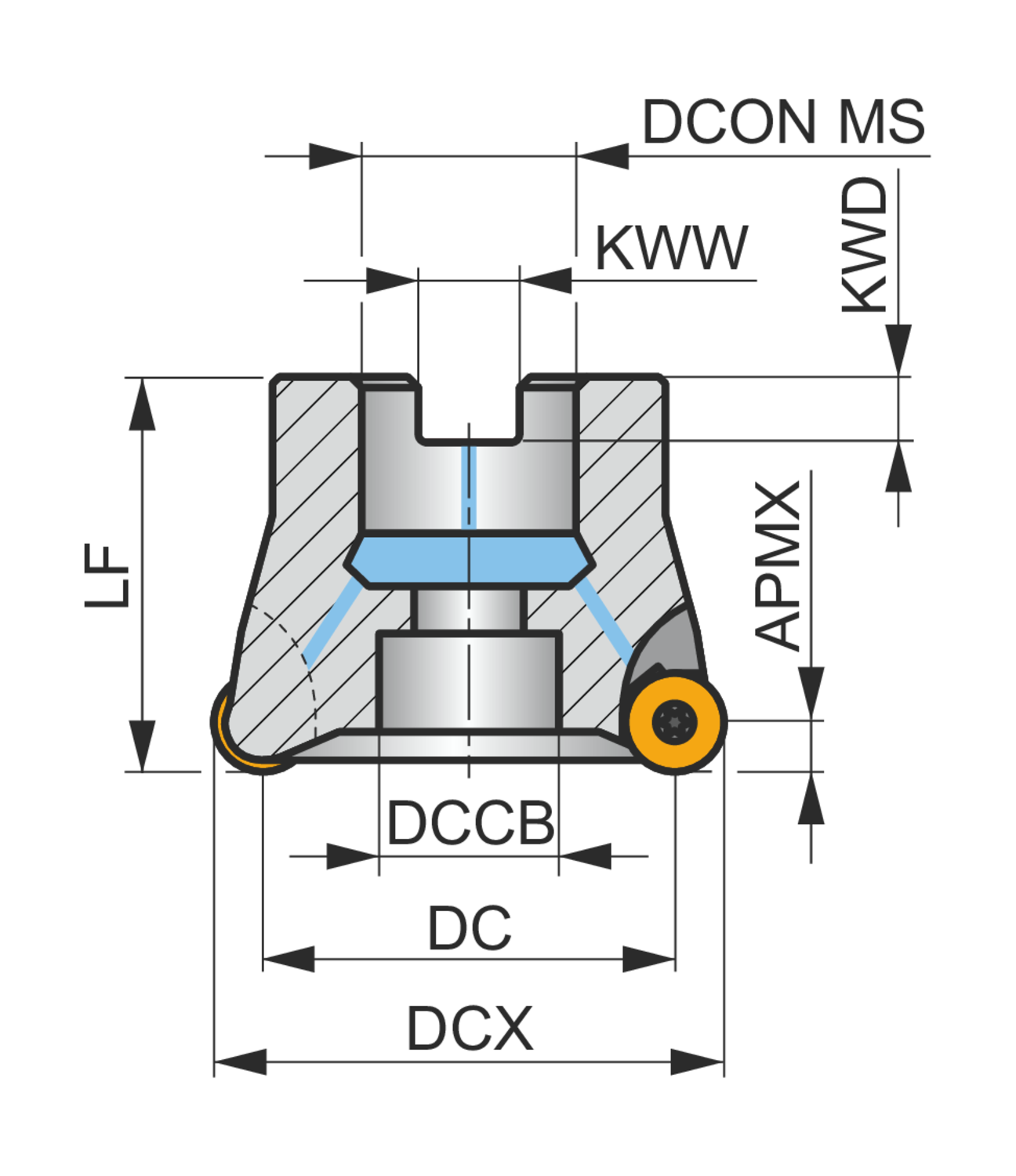

Axial rake angle (GAMP)
0
Connection diameter - inch (DCON MS)
0.866
Connection diameter - millimeter (DCON MS)
22
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
0.709
Counterbore diameter connection bore - millimeter (DCCB)
18
Cutting diameter - inch (DC)
1.654
Cutting diameter - millimeter (DC)
42
Cutting diameter maximum - inch (DCX)
2.047
Cutting diameter maximum - millimeter (DCX)
52
Depth of cut maximum - millimeter (APMX)
2.5
Functional length - millimeter (LF)
40
Hand (Cutting direction)
Right
Insert index count (NOI)
7
Keyway depth - millimeter (KWD)
10.4
Keyway width - millimeter (KWW)
10.4
Peripheral effective cutting edge count (ZEFP)
7
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
19100
Shank
Shell mill DIN 8030 A
Copy face mill with double negative geometry which utilises 7 of RD.. 1003MOT or RDHT 1003MO-FA single-sided inserts, cutting diameter to maximum 52mm with 22mm connection bore according to DIN 8030-A, 40mm functional and, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2.5mm
