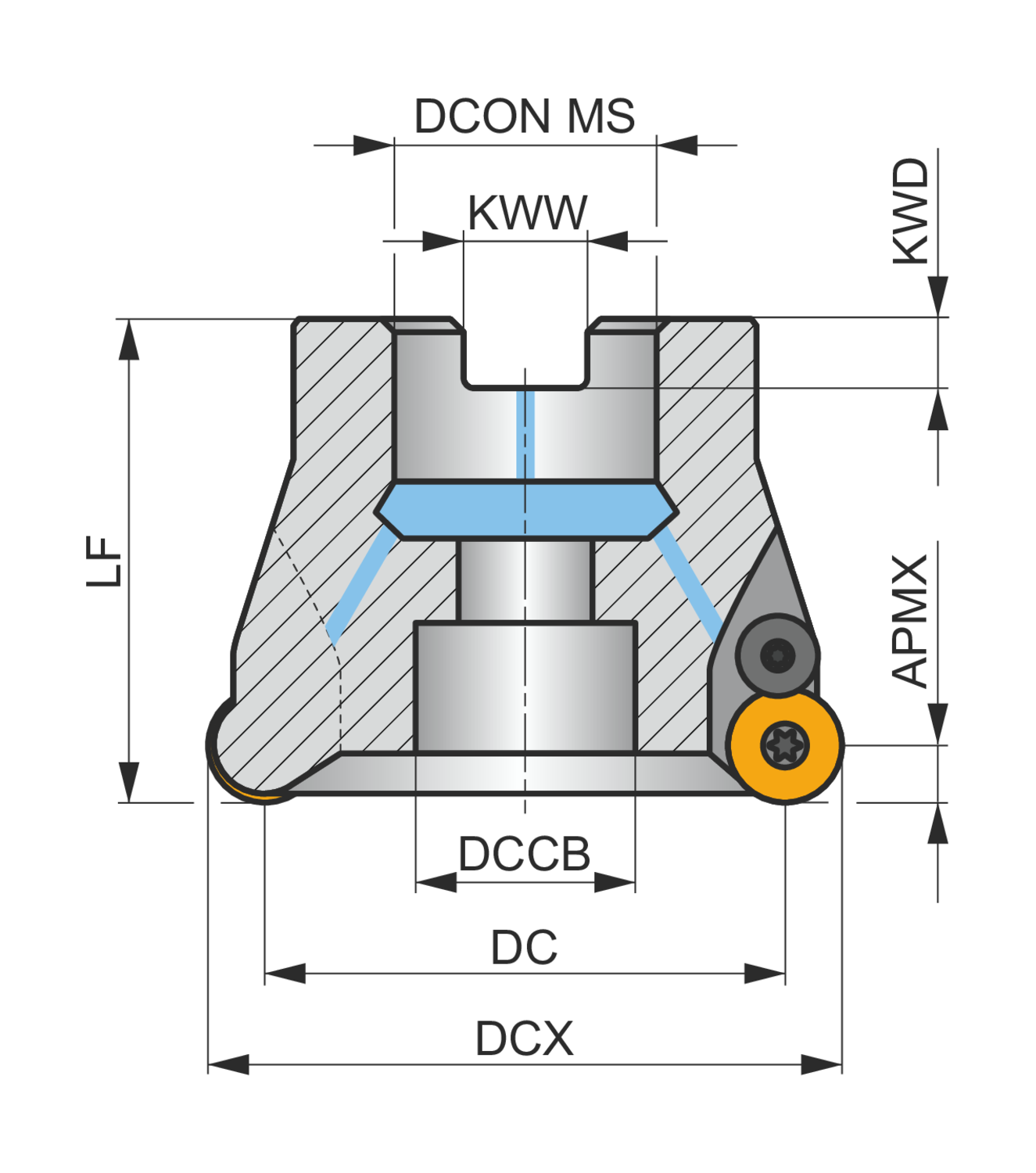

Pramet 80A07R-SCMORD12-CF shell milling cutter body for copy and profile milling. 2.677 in (68 mm) cutting diameter, 0.118 in (3 mm) maximum depth of cut, 7 inserts, 27 mm connection bore per DIN 8030-A, 52 mm functional length, through coolant, right hand. Article 7999328.

Axial rake angle (GAMP)

7

Clamping Type Code (MTP)

System SC

Connection diameter - inch (DCON MS)

1.063

Connection diameter - millimeter (DCON MS)

27

Coolant supply property (CSP)

1

Counterbore diameter connection bore - inch (DCCB)

1.496

Counterbore diameter connection bore - millimeter (DCCB)

38

Cutting diameter - inch (DC)

2.677

Cutting diameter - millimeter (DC)

68

Cutting diameter maximum - inch (DCX)

3.15

Cutting diameter maximum - millimeter (DCX)

80

Cutting pitch differential (CPDF)

0

Depth of cut maximum - millimeter (APMX)

3

Functional length - millimeter (LF)

52

Hand (Cutting direction)

Right

Insert index count (NOI)

7

Keyway depth - millimeter (KWD)

12.4

Keyway width - millimeter (KWW)

12.4

Peripheral effective cutting edge count (ZEFP)

7

Radial rake angle (GAMF)

2

Rotational speed maximum (RPMX)

12000

Shank

Shell mill DIN 8030 A
