Pramet PPH-08/02-QC12-110 7024730 End Milling Cutter - Copy And Profile
MODEL 7024730
$318.75 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

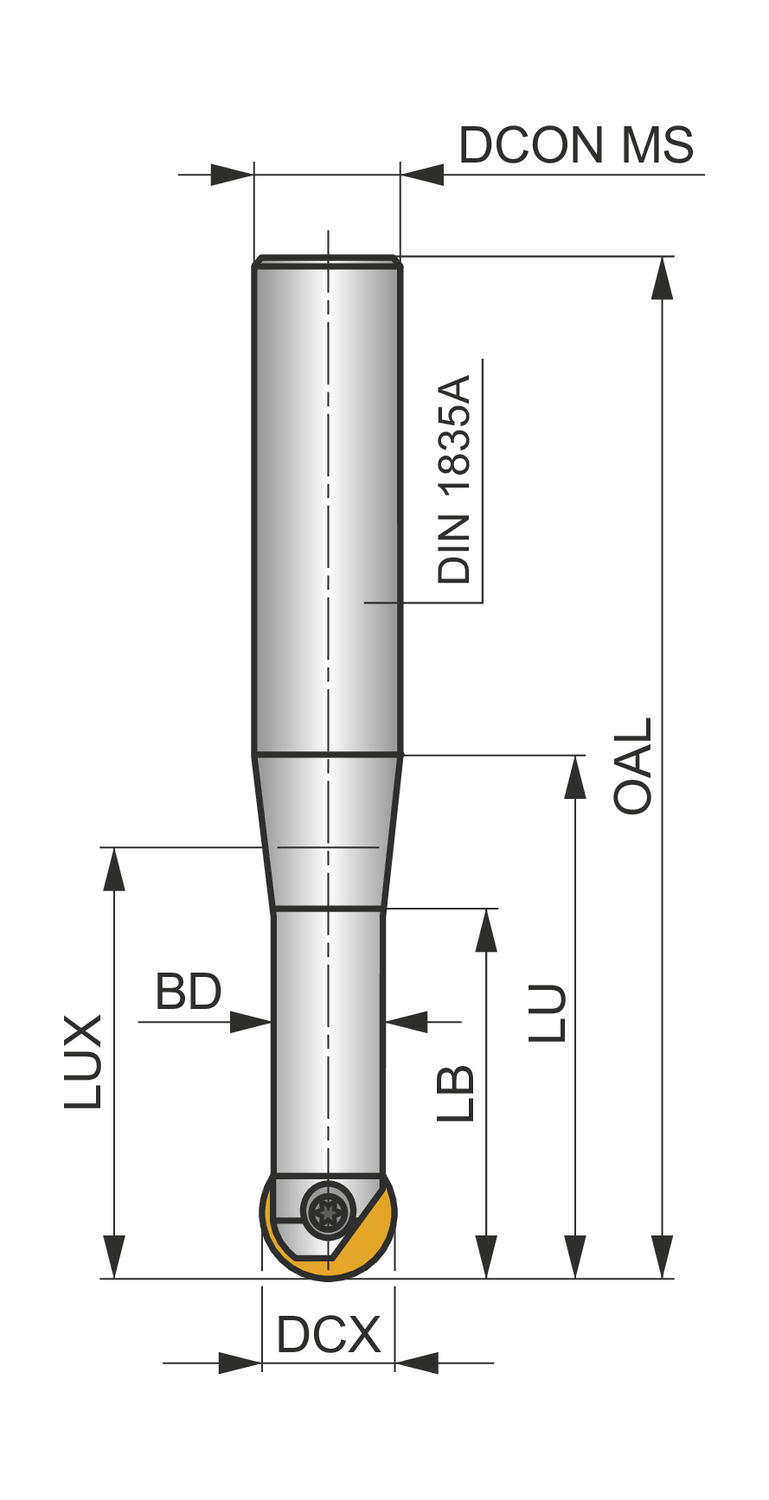

Body diameter - inch (BD)
0.256
Body diameter - millimeter (BD)
6.5
Body length - millimeter (LB)
33.5
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.472
Connection diameter - millimeter (DCON MS)
12
Cutting diameter maximum - inch (DCX)
0.315
Cutting diameter maximum - millimeter (DCX)
8
Insert group used in the tool
PPH 08
Insert index count (NOI)
1
Overall length - inch (OAL)
4.331
Overall length - millimeter (OAL)
110
Possible use
Finishing
Primary use
Roughing
Rotational speed maximum (RPMX)
33600
Shank
Cylindrical shank DIN 1835A
Usable Length - millimeter (LU)
53
Usable Length maximum - millimeter (LUX)
41.5
Copy end mill which utilises 1 off PPH 08.., PPHT 08.. or PPHF 08.. single-sided insert, cutting diameter 8mm with 12mm parallel shank according to DIN 1835A, 33.5mm functional and 110mm overall length for copy milling with a maximum depth of cut of 0.3-4.0mm
