Pramet PPH-16/02-QC20-166HSCW 7024755 End Milling Cutter - Copy And Profile
MODEL 7024755
$978.87 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

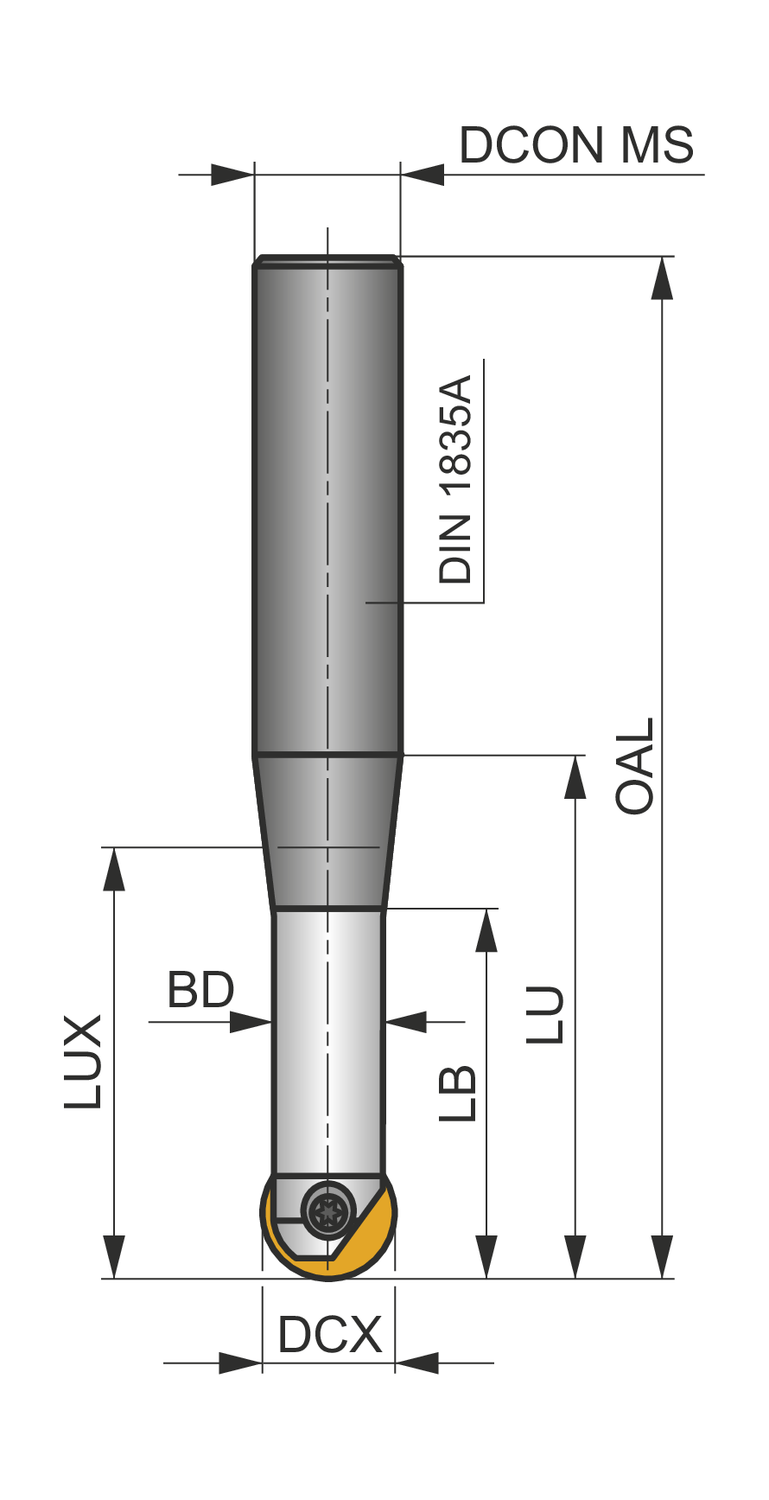

Body diameter - inch (BD)
0.551
Body diameter - millimeter (BD)
14
Body length - millimeter (LB)
28.5
Carbide_FLAG
1
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.787
Connection diameter - millimeter (DCON MS)
20
Cutting diameter maximum - inch (DCX)
0.63
Cutting diameter maximum - millimeter (DCX)
16
Insert group used in the tool
PPH 16, PPHE 16, PPHT 16.., PPHF 16..
Insert index count (NOI)
1
Overall length - inch (OAL)
6.535
Overall length - millimeter (OAL)
166
Possible use
Finishing
Primary use
Roughing
Rotational speed maximum (RPMX)
25500
Shank
Cylindrical shank DIN 1835A
Usable Length - millimeter (LU)
100
Usable Length maximum - millimeter (LUX)
87.2
Copy end mill which utilises 1 off PPH 16, PPHE 16, PPHT 16 or PPHF 16 single-sided insert, cutting diameter 16mm with 20mm carbide parallel shank according to DIN 1835A, 28.5mm functional and 166mm overall length for copy milling with a maximum depth of cut of 0.3-4.0mm
