Pramet PPH-20/02-030-P10 7024756 Modular Head For Copy And Profile Milling
MODEL 7024756
$362.96 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

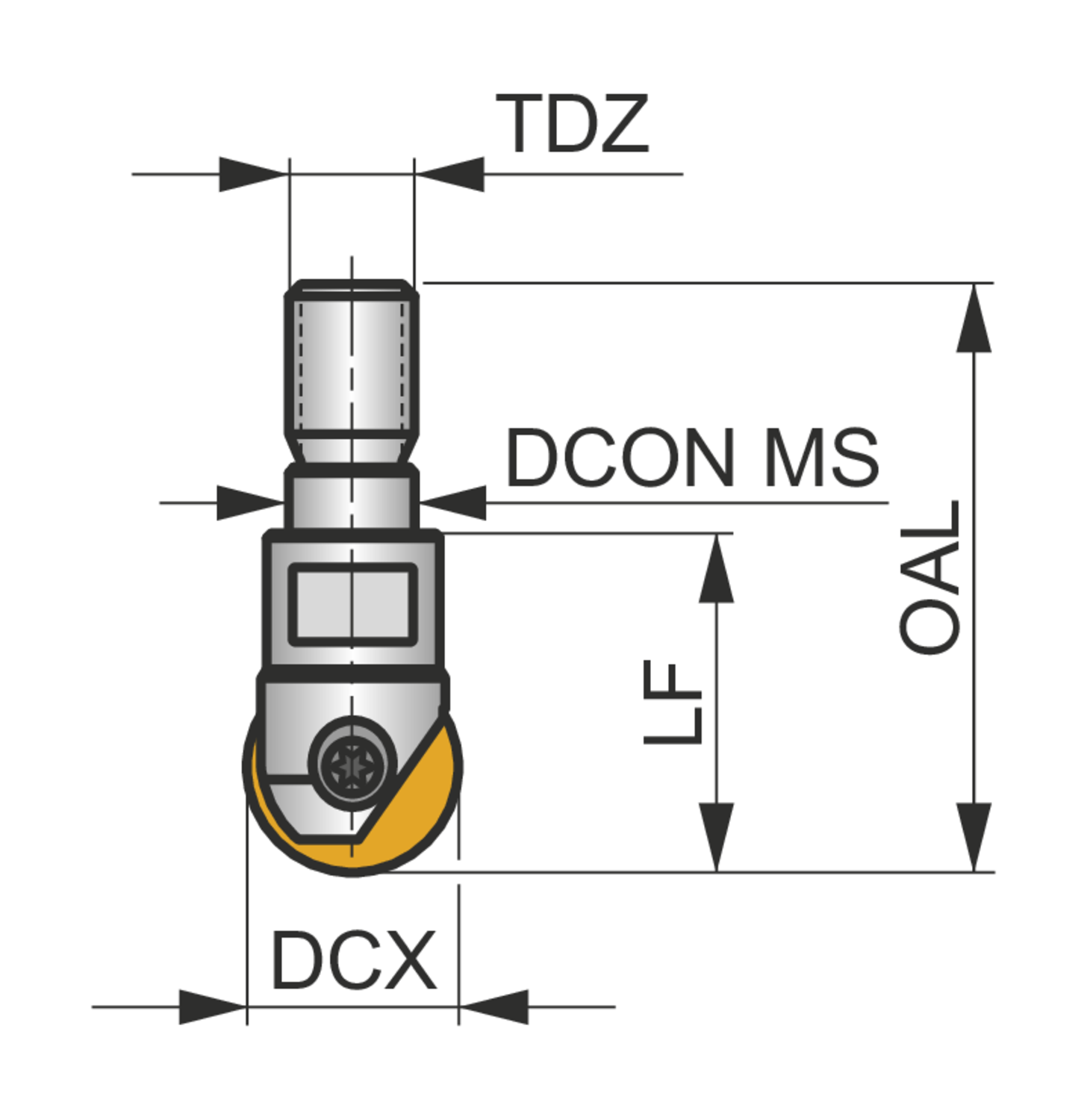

Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.413
Connection diameter - millimeter (DCON MS)
10.5
Cutting diameter maximum - inch (DCX)
0.787
Cutting diameter maximum - millimeter (DCX)
20
Functional length - millimeter (LF)
30
Insert group used in the tool
PPH 20, PPHE 20, PPHT 20.., PPHF 20..
Insert index count (NOI)
1
Possible use
Finishing
Primary use
Roughing
Shank
Threaded coupling
Thread diameter size (TDZ)
M10
Copy end mill which utilises 1 off PPH 20, PPHE 20, PPHT 20 or PPHF 20 single-sided insert, cutting diameter 20mm with M10 threaded shank for standard modular tool-holders, 30mm protrusion length for copy milling with a maximum depth of cut of 0.3-4.0mm
