Pramet 062N2R106C062-ISSD09 chamfering milling cutter body with double negative geometry, 0.625 in cutting diameter, 45° approach angle, 0.177 in maximum depth of cut, 2 inserts, 0.625 in cylindrical shank DIN 1835A, 7.874 in overall length. Article 6789707.
MODEL 6789707
$282.76 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
0
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.625
Connection diameter - millimeter (DCON MS)
15.9
Cutting diameter - inch (DC)
0.625
Cutting diameter - millimeter (DC)
15.9
Cutting diameter maximum - inch (DCX)
1.097
Cutting diameter maximum - millimeter (DCX)
27.9
Hand (Cutting direction)
Right
Overall length - inch (OAL)
7.874
Overall length - millimeter (OAL)
200
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
32200
Shank
Cylindrical shank DIN 1835A
Usable Length - inch (LU)
1.063

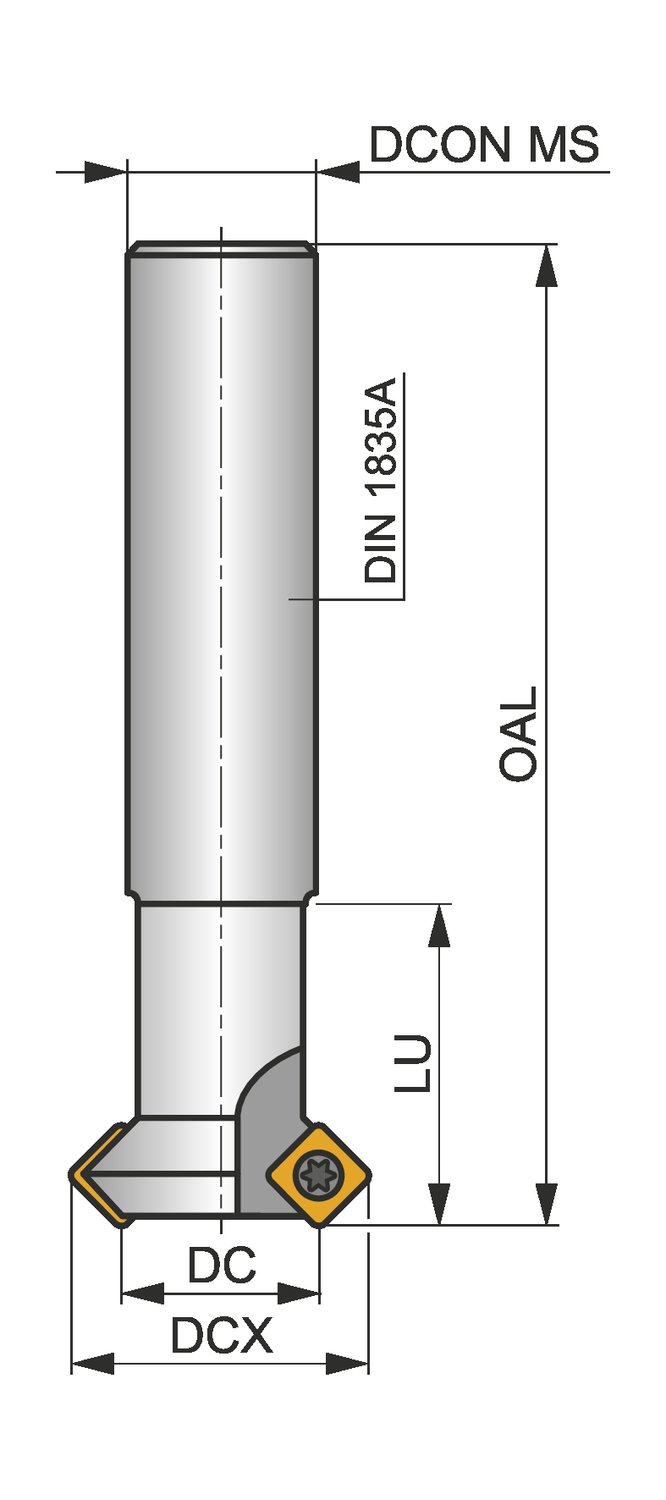

Chamfer mill with double negative geometry which utilises 2 off SDEW 0903.. or SDEX 0903.. single-sided inserts, cutting diameter .625'' with 45° approach angle and .625'' parallel shank according to DIN 1835A, 7.874'' overall length for chamfering with a maximum depth of cut of .177''
