Pramet 075A3R125W075-ISTN10-C square shoulder end milling cutter body, 0.75 in cutting diameter, 0.197 in maximum depth of cut, 3 inserts, Weldon shank DIN 1835B, through coolant, right hand. Article 7276926.
MODEL 7276926
$375.30 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
-16.5
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.75
Connection diameter - millimeter (DCON MS)
19.1
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.75
Cutting diameter - millimeter (DC)
19.1
Hand (Cutting direction)
Right
Overall length - inch (OAL)
3.5
Overall length - millimeter (OAL)
89
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
-11
Rotational speed maximum (RPMX)
27600
Shank
Weldon shank DIN 1835B
Usable Length - inch (LU)
1.25

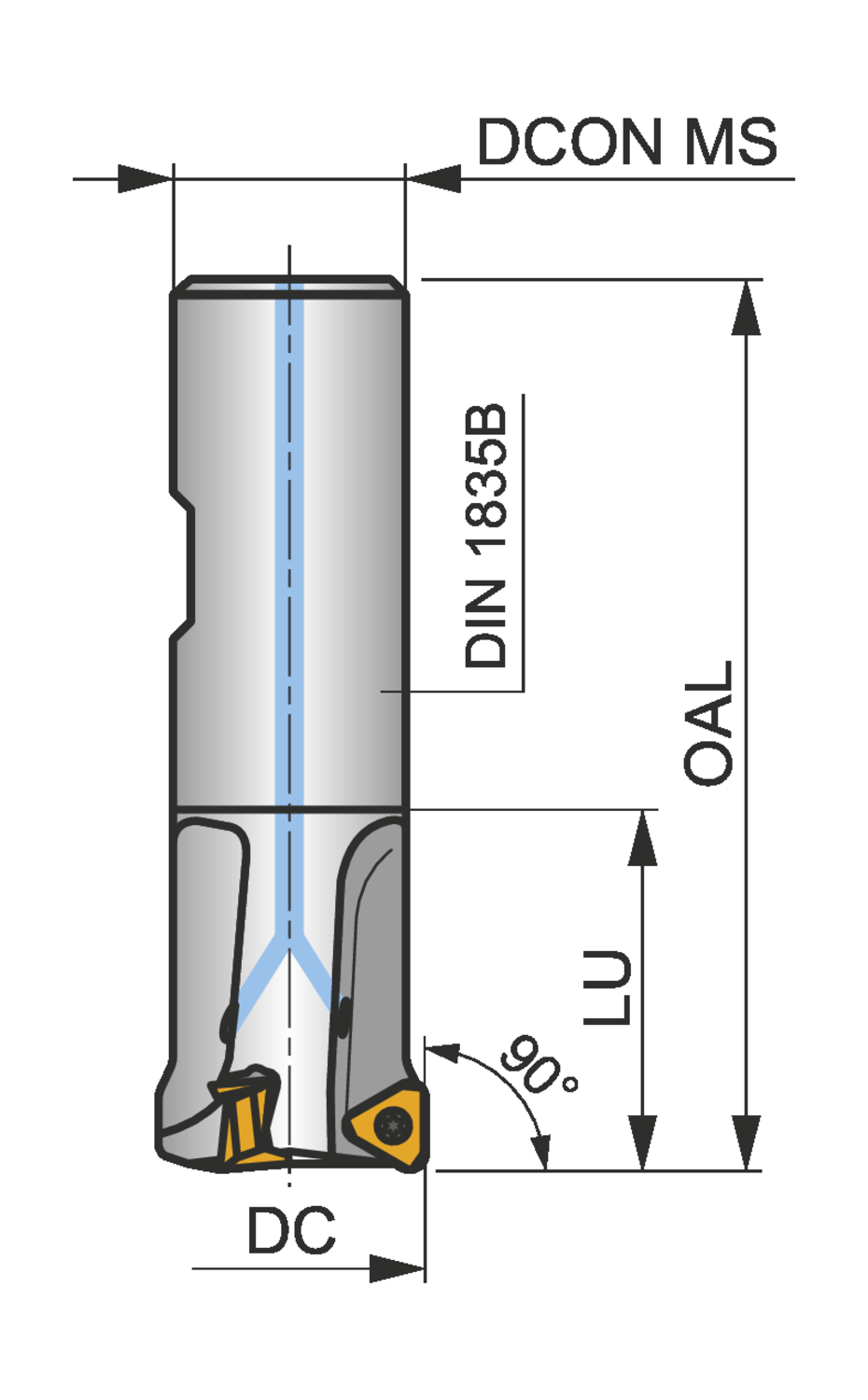

Shoulder face mill with double negative geometry which utilises 3 off TNGX 1004.. double-sided inserts, cutting diameter .750'' with 90° approach angle and .750'' Weldon shank according to DIN 1835B, 1.250'' functional and 3.500'' overall length, through coolant for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of .197''
