Pramet 100A3R128W100-ISSO09-C square shoulder end milling cutter, 1 in cutting diameter, 0.315 in maximum depth of cut, 3 SO..09 inserts, 90° approach angle, Weldon shank DIN 1835B, through coolant, right hand. Article 6789775.
MODEL 6789775
$441.11 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
6
Clamping Type Code (MTP)
Screw clamping through hole
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
1
Cutting diameter - millimeter (DC)
25.4
Hand (Cutting direction)
Right
Overall length - inch (OAL)
3.78
Overall length - millimeter (OAL)
96
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
-12
Rotational speed maximum (RPMX)
21300
Shank
Weldon shank DIN 1835B
Usable Length - inch (LU)
1.28

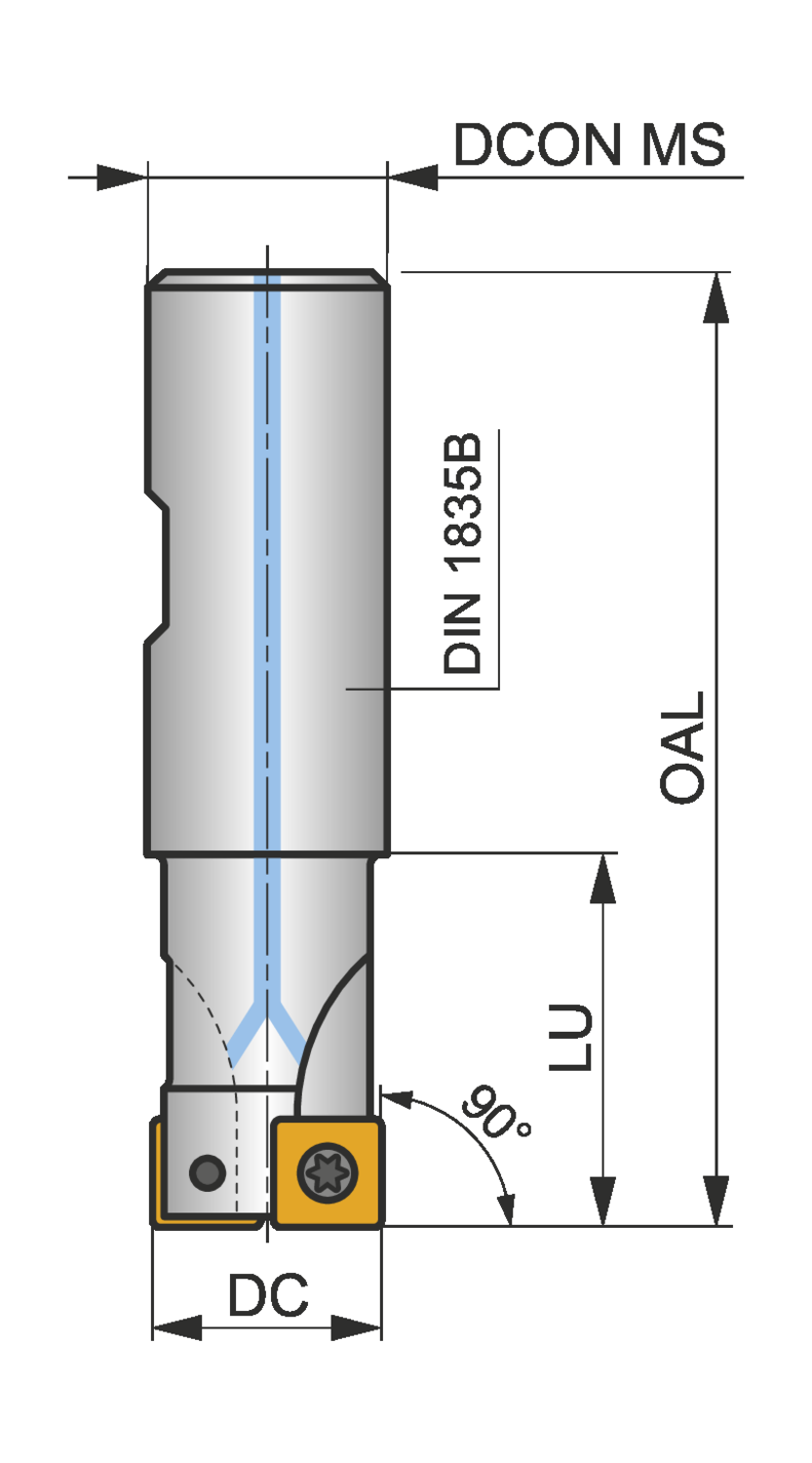

Shoulder mill with positve/negative geometry which utilises 3 off SOMT 09T3.. single-sided inserts, cutting diameter 1.000'' with 90° approach angle and 1.000'' Weldon shank according to DIN 1835B, 3.780'' overall length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of .315''
