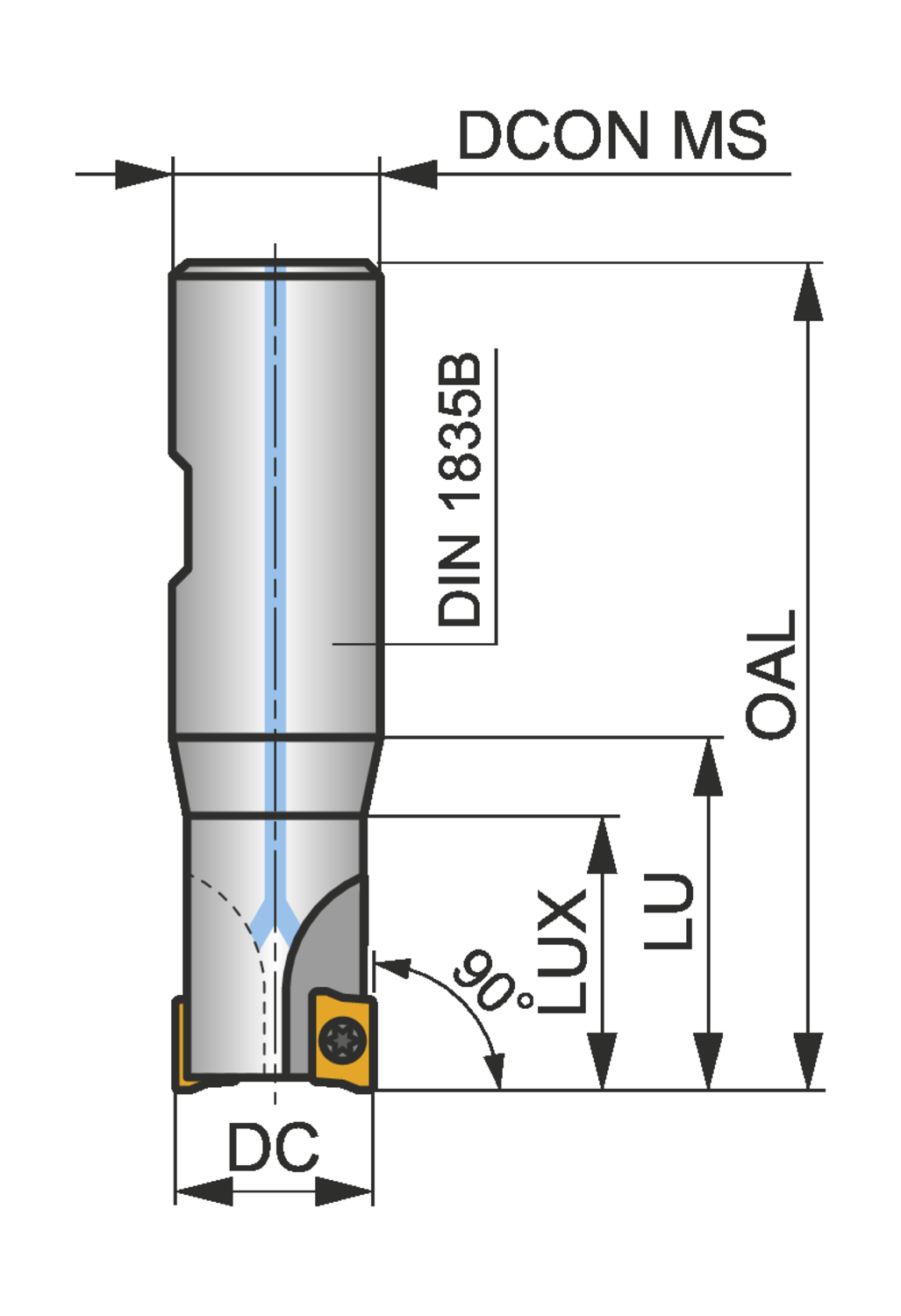

Pramet 100A4R128W100-ISAD11E-C square shoulder end milling cutter body, 1 in cutting diameter, 0.354 in maximum depth of cut, 4 inserts, 90° approach angle, 1 in Weldon shank DIN 1835B, 3.78 in overall length, through coolant, right hand. Article 6790708.
MODEL 6790708
$374.27 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
5
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1
Connection diameter - millimeter (DCON MS)
25.4
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
1
Cutting diameter - millimeter (DC)
25.4
Hand (Cutting direction)
Right
Overall length - inch (OAL)
3.78
Overall length - millimeter (OAL)
96
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
-10.2
Rotational speed maximum (RPMX)
24100
Shank
Weldon shank DIN 1835B
Usable Length maximum - inch (LUX)
1.28
Shoulder mill with positve/negative geometry which utilises 4 off ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 1.000'' with 90° approach angle and 1.000'' Weldon shank according to DIN 1835B, 1.280'' functional and 3.780'' overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .354''
