Pramet 125A07R-S45OE06Z-C 6922506 Shell Milling Cutter - Face
MODEL 6922506
$980.92 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

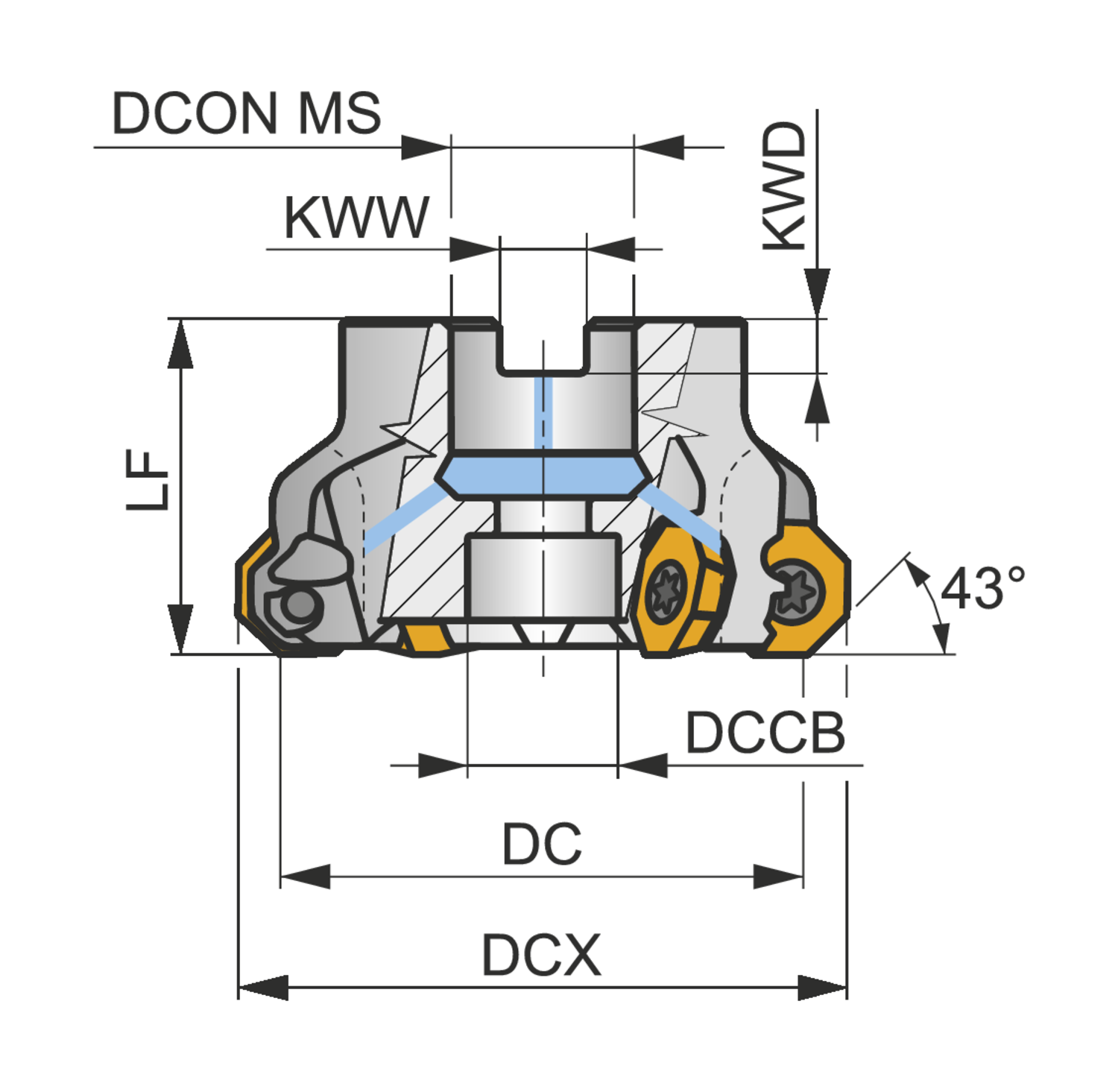

Axial rake angle (GAMP)
10
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
2.205
Counterbore diameter connection bore - millimeter (DCCB)
56
Cutting diameter - inch (DC)
4.921
Cutting diameter - millimeter (DC)
125
Cutting diameter maximum - inch (DCX)
5.323
Cutting diameter maximum - millimeter (DCX)
135.2
Cutting pitch differential (CPDF)
1
Functional length - millimeter (LF)
63
Hand (Cutting direction)
Right
Insert index count (NOI)
7
Keyway depth - millimeter (KWD)
9
Keyway width - millimeter (KWW)
16.4
Peripheral effective cutting edge count (ZEFP)
7
Radial rake angle (GAMF)
6
Rotational speed maximum (RPMX)
6800
Shank
Shell mill DIN 8030 A
Face mill with double positive geometry which utilises 7 off OEHT 0604AE.., REHT 1604M0.. or XEHT 0604AE.. single-sided inserts, cutting diameter 125 to maximum 135.2mm with 43° approach angle and 40mm connection bore according to DIN 8030-A, 63mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 3.3 (9.9)mm
