Pramet 125A08R-S45OD05-C 7342888 Shell Milling Cutter - Face
MODEL 7342888
$918.20 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

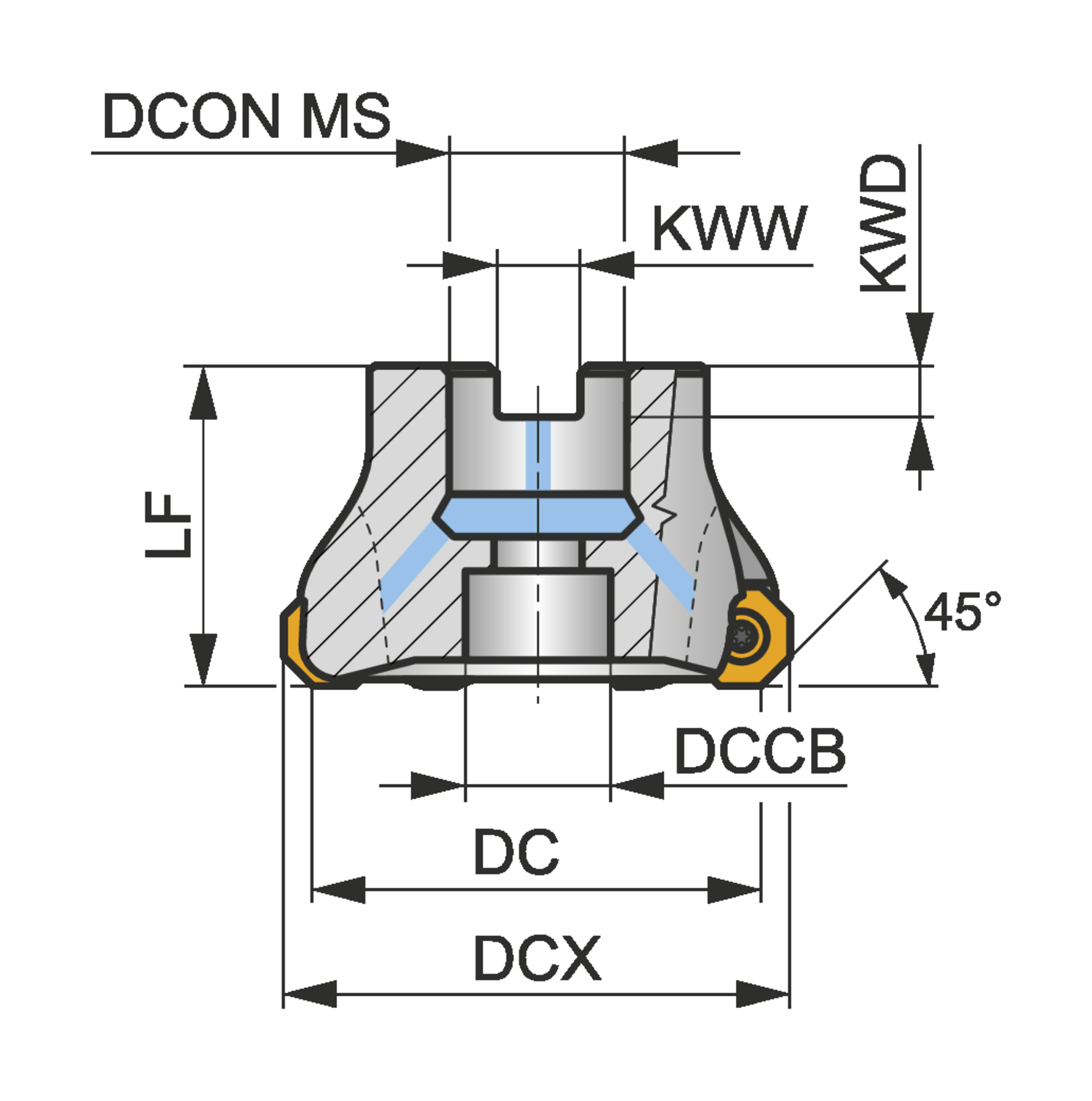

Axial rake angle (GAMP)
8
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
2.205
Counterbore diameter connection bore - millimeter (DCCB)
56
Cutting diameter - inch (DC)
4.63
Cutting diameter - millimeter (DC)
117.6
Cutting diameter maximum - inch (DCX)
4.921
Cutting diameter maximum - millimeter (DCX)
125
Cutting pitch differential (CPDF)
1
Functional length - millimeter (LF)
63
Hand (Cutting direction)
Right
Insert index count (NOI)
8
Keyway depth - millimeter (KWD)
9
Keyway width - millimeter (KWW)
16.4
Peripheral effective cutting edge count (ZEFP)
8
Radial rake angle (GAMF)
-7
Rotational speed maximum (RPMX)
8900
Shank
Shell mill DIN 8030 A
Tool cutting edge angle (KAPR)
45
Copy face mill with positve/negative geometry which utilises 8 off OD.T 05IM, RD.T 12IM or SD.T 12IM single-sided inserts, cutting diameter 117.6mm with 45 / 90° approach angle and 40mm connection bore according to DIN 8030-A, 63mm protrusion length, through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling, progressive plunge milling and chamfering with a maximum depth of cut of 3.0 (6.0/10.0)mm
