Pramet 125A2R169M16-ISLN12-C modular head for square shoulder milling, 1.25 in cutting diameter, 0.354 in maximum depth of cut, 2 inserts, M16 threaded coupling, through coolant, right hand. Article 6793010.
MODEL 6793010
$382.50 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

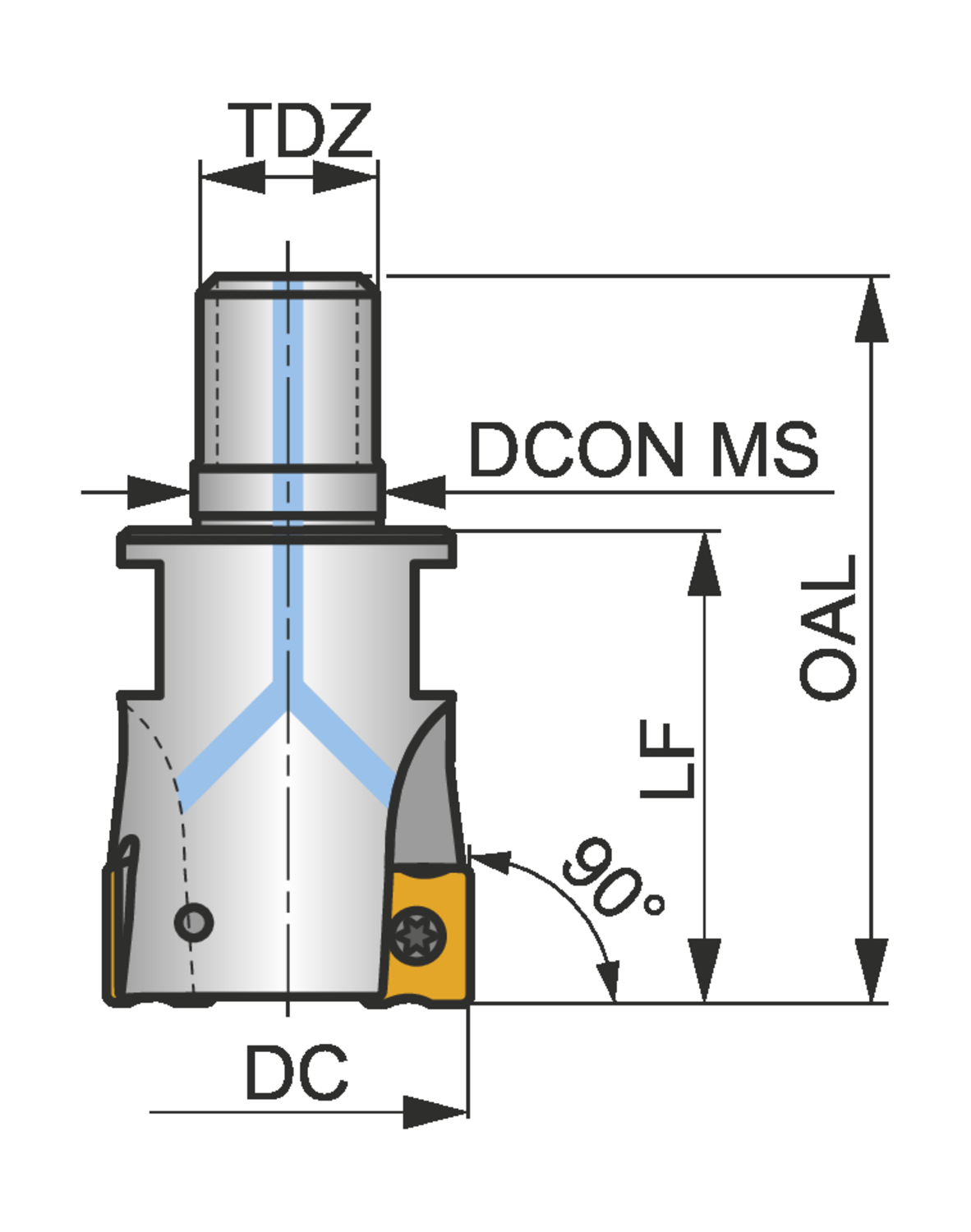

Axial rake angle (GAMP)
-6
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.669
Connection diameter - millimeter (DCON MS)
17
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
1.25
Cutting diameter - millimeter (DC)
31.8
Cutting pitch differential (CPDF)
1
Functional length - inch (LF)
1.693
Hand (Cutting direction)
Right
Overall length - inch (OAL)
2.598
Overall length - millimeter (OAL)
66
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
-15
Shank
Threaded coupling
Thread diameter size (TDZ)
-
Shoulder mill with double negative geometry which utilises 2 off LNGX 1205.. or LNGU 1205.. double-sided inserts, cutting diameter 1.250'' with 90° approach angle and M16 threaded shank for standard modular tool-holders, 1.693'' protrusion length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of .354''
