Image for Illustration purposes only. Actual product may vary
Pramet 125B04R-S90CN10N18 6760161 Shell Disc Mill - Slotting
MODEL 6760161
$1,627.68 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

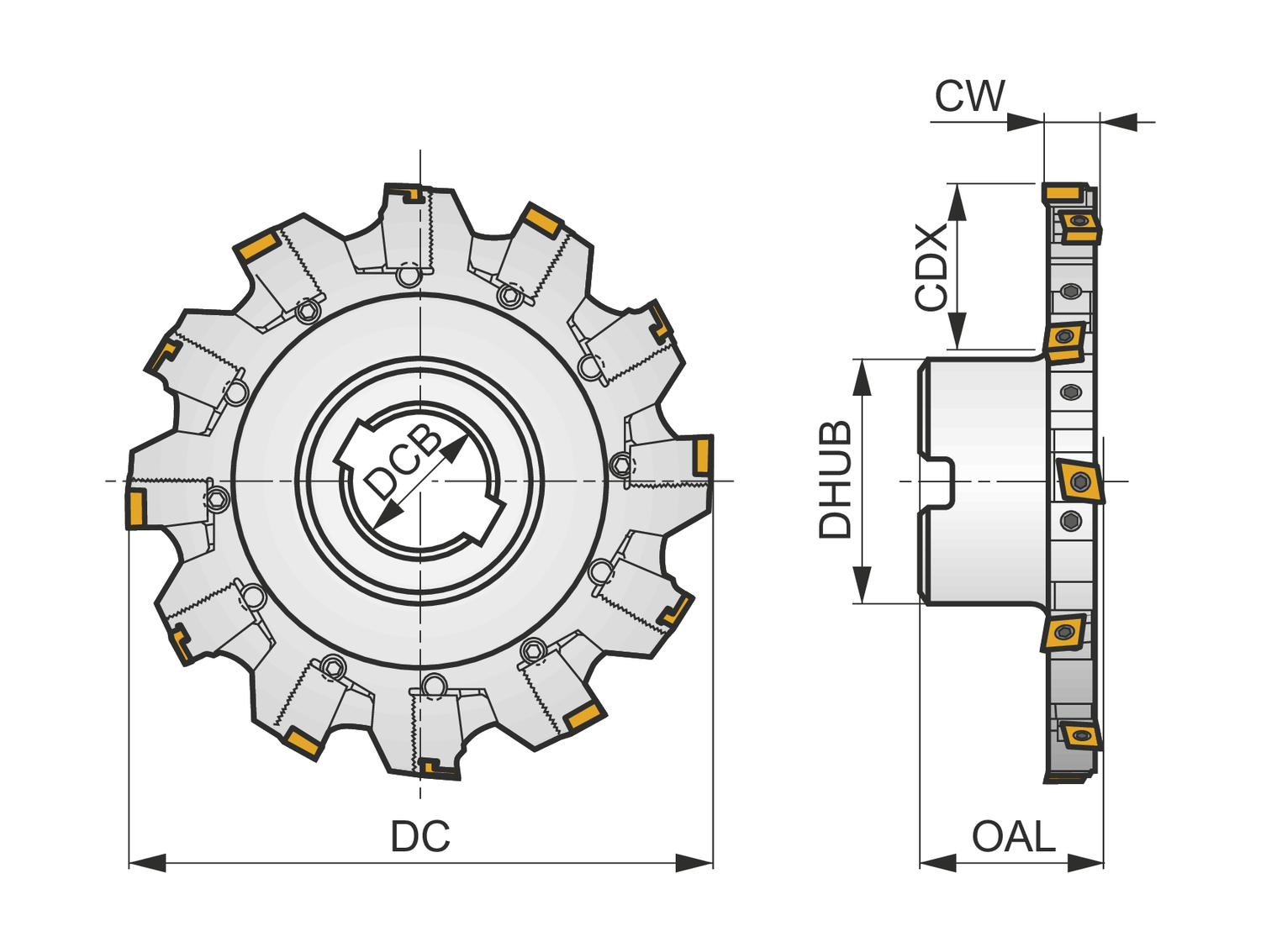

Axial rake angle (GAMP)
4
Clamping Type Code (MTP)
Screw clamping through hole
Connection (shank) description
Arbor DIN 8030/B
Connection bore diameter - millimeter (DCB)
40
Cutting depth maximum - millimeter (CDX)
25
Cutting diameter - inch (DC)
4.921
Cutting diameter - millimeter (DC)
125
Face effective cutting edge count (ZEFF)
4
Hand (Cutting direction)
Right
Hub diameter - millimeter (DHUB)
70
Insert group used in the tool
CNHQ 1005..
Insert index count (NOI)
8
Number of peripheral edges in the tool (ZNP)
8
Overall length - inch (OAL)
1.969
Overall length - millimeter (OAL)
50
Peripheral effective cutting edge count (ZEFP)
8
Possible use
Finishing
Radial rake angle (GAMF)
-10
Rotational speed maximum (RPMX)
7800
Shank
Shell mill DIN 8030 B
Disc mill with positve/negative geometry which utilises 8 off CNHQ 1005.. double-sided inserts, cutting diameter 125mm with 90° approach angle and 40mm connection bore according to DIN 8030-B, 50mm protrusion length for deep slot milling with a width of cut of 14,0 ÷ 18,5mm
