Pramet 125N3R177C100-ISOD05-C 7546855 End Milling Cutter - Face
MODEL 7546855
$414.37 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

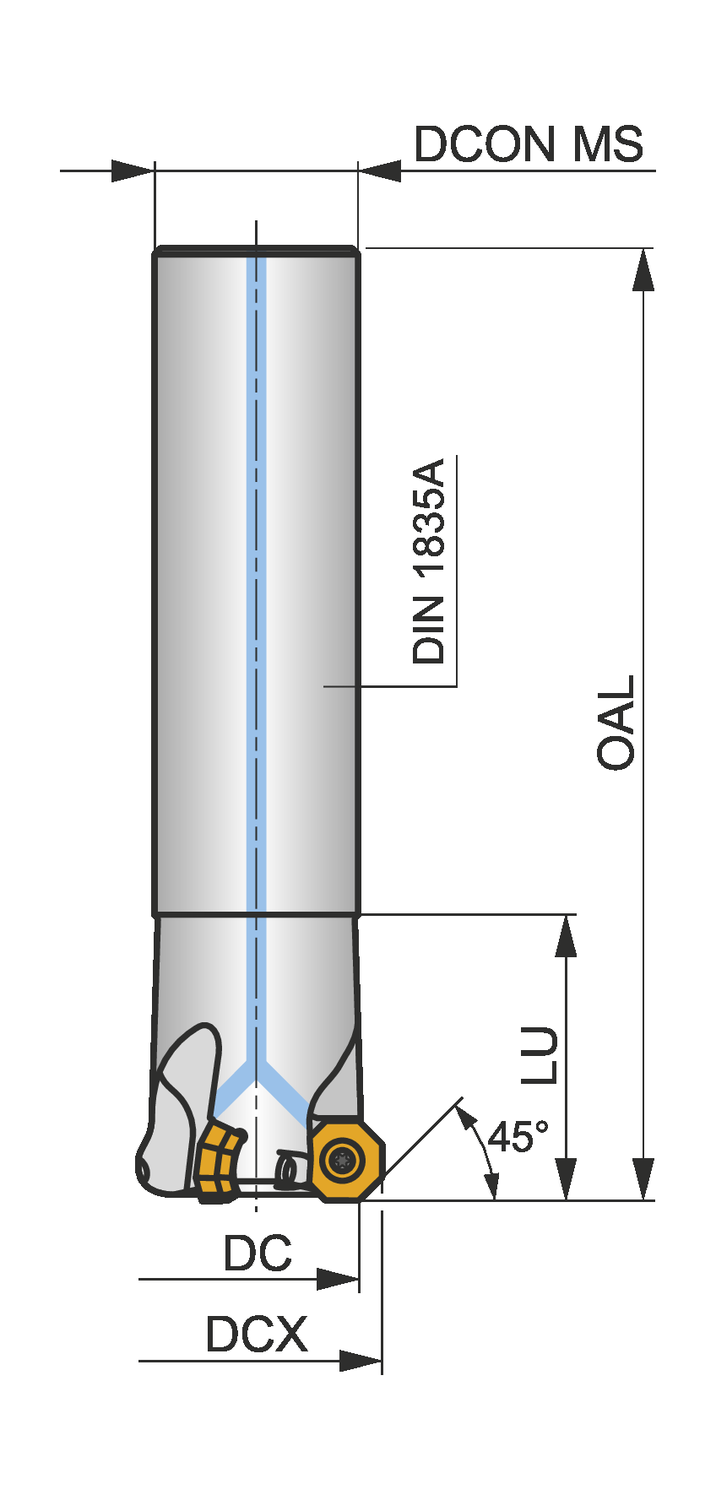

Axial rake angle (GAMP)
-10
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1
Connection diameter - millimeter (DCON MS)
25.4
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.961
Cutting diameter - millimeter (DC)
24.4
Cutting diameter maximum - inch (DCX)
1.25
Cutting diameter maximum - millimeter (DCX)
31.8
Hand (Cutting direction)
Right
Overall length - inch (OAL)
5
Overall length - millimeter (OAL)
127
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
8
Rotational speed maximum (RPMX)
17000
Shank
Cylindrical shank DIN 1835A
Tool cutting edge angle (KAPR)
45
Usable Length - inch (LU)
1.772
Copy face mill with positve/negative geometry which utilises 3 off OD.T 05IM, RD.T 12IM or SD.T 12IM single-sided inserts, cutting diameter .961'' with 45 / 90° approach angle and 1.000'' parallel shank according to DIN 1835A, 1.772'' functional and 5.000'' overall length, through coolant for face milling, copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling, progressive plunge milling and chamfering with a maximum depth of cut of .118 (.236/.394)''
