Pramet 160C10R-S45SE09F 6761671 Shell Milling Cutter - Face
MODEL 6761671
$972.70 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

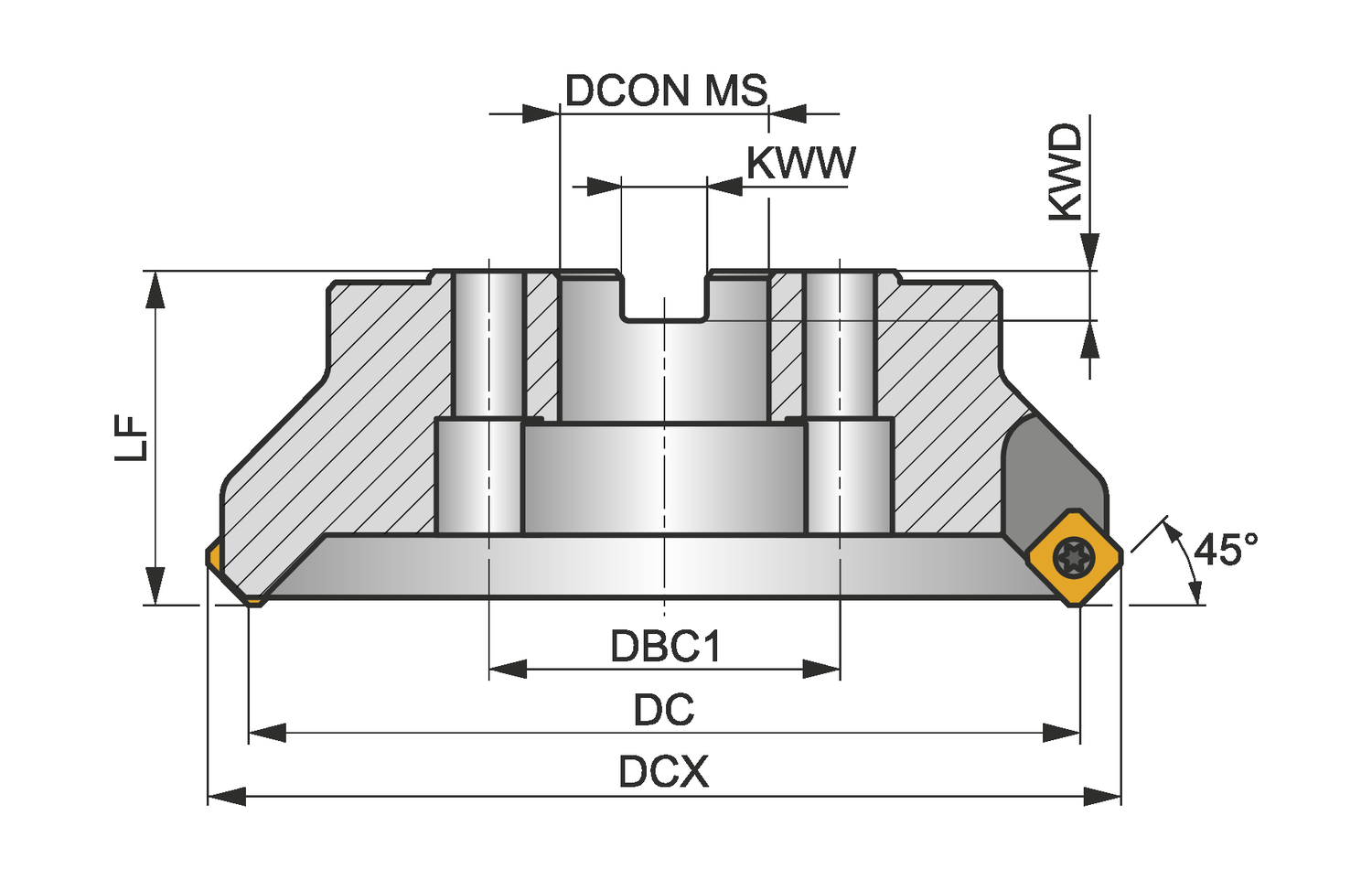

Axial rake angle (GAMP)
20
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Cutting diameter - inch (DC)
6.299
Cutting diameter - millimeter (DC)
160
Cutting diameter maximum - inch (DCX)
6.677
Cutting diameter maximum - millimeter (DCX)
169.6
Cutting pitch differential (CPDF)
1
Functional length - millimeter (LF)
63
Hand (Cutting direction)
Right
Insert index count (NOI)
10
Keyway depth - millimeter (KWD)
9
Keyway width - millimeter (KWW)
16.4
Peripheral effective cutting edge count (ZEFP)
10
Radial rake angle (GAMF)
-5
Rotational speed maximum (RPMX)
8700
Shank
Shell mill DIN 8030 C
Face mill with positve/negative geometry which utilises 10 off SEET 09T3AF.. or SEMT 09T3AF.. single-sided inserts, cutting diameter 160 to maximum 169.6mm with 45° approach angle and 40mm connection bore according to DIN 8030-C, 63mm protrusion length and differential pitch for face milling and chamfering with a maximum depth of cut of 4.5mm
