Pramet 160C12R-S90SD12 6760185 Shell Milling Cutter - Square Shoulder
MODEL 6760185
$1,286.31 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

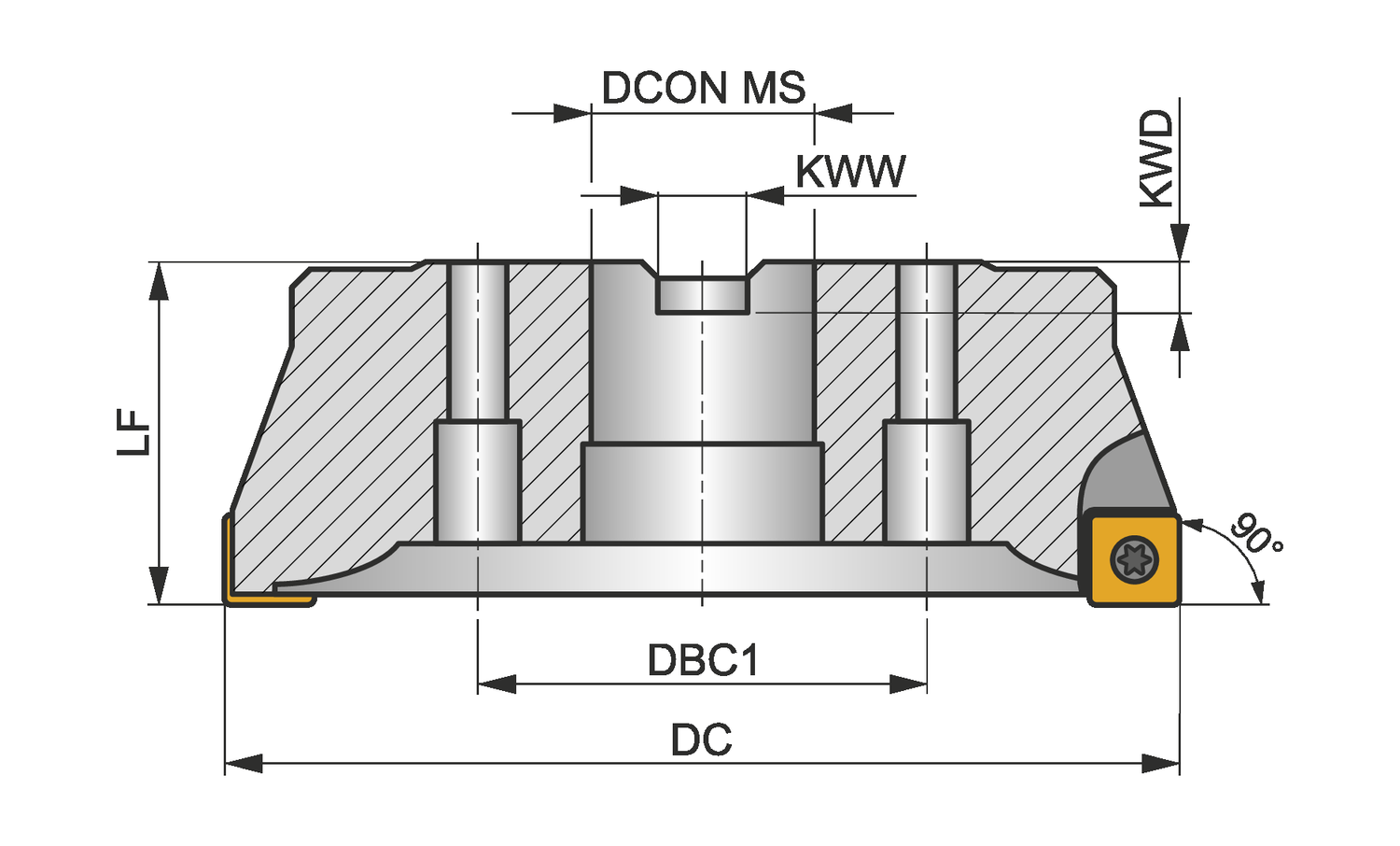

Axial rake angle (GAMP)
8
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Cutting diameter - inch (DC)
6.299
Cutting diameter - millimeter (DC)
160
Functional length - millimeter (LF)
63
Hand (Cutting direction)
Right
Insert index count (NOI)
12
Keyway depth - millimeter (KWD)
9
Keyway width - millimeter (KWW)
16.4
Peripheral effective cutting edge count (ZEFP)
12
Radial rake angle (GAMF)
-5
Rotational speed maximum (RPMX)
7300
Shank
Shell mill DIN 8030 C
Shoulder mill with positve/negative geometry which utilises 12 off SDMT 1205.. single-sided inserts, cutting diameter 160mm with 90° approach angle and 40mm connection bore according to DIN 8030-C, 63mm protrusion length for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 10.0mm
