Pramet 16A2R024A16-SAD11E-C end milling cutter, square shoulder, 0.63 in cutting diameter, 0.354 in maximum depth of cut, 2 inserts, 90° approach angle, 16 mm cylindrical shank DIN 1835A, right hand, through coolant, 135 mm overall length. Article 6760210.
MODEL 6760210
$292.02 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

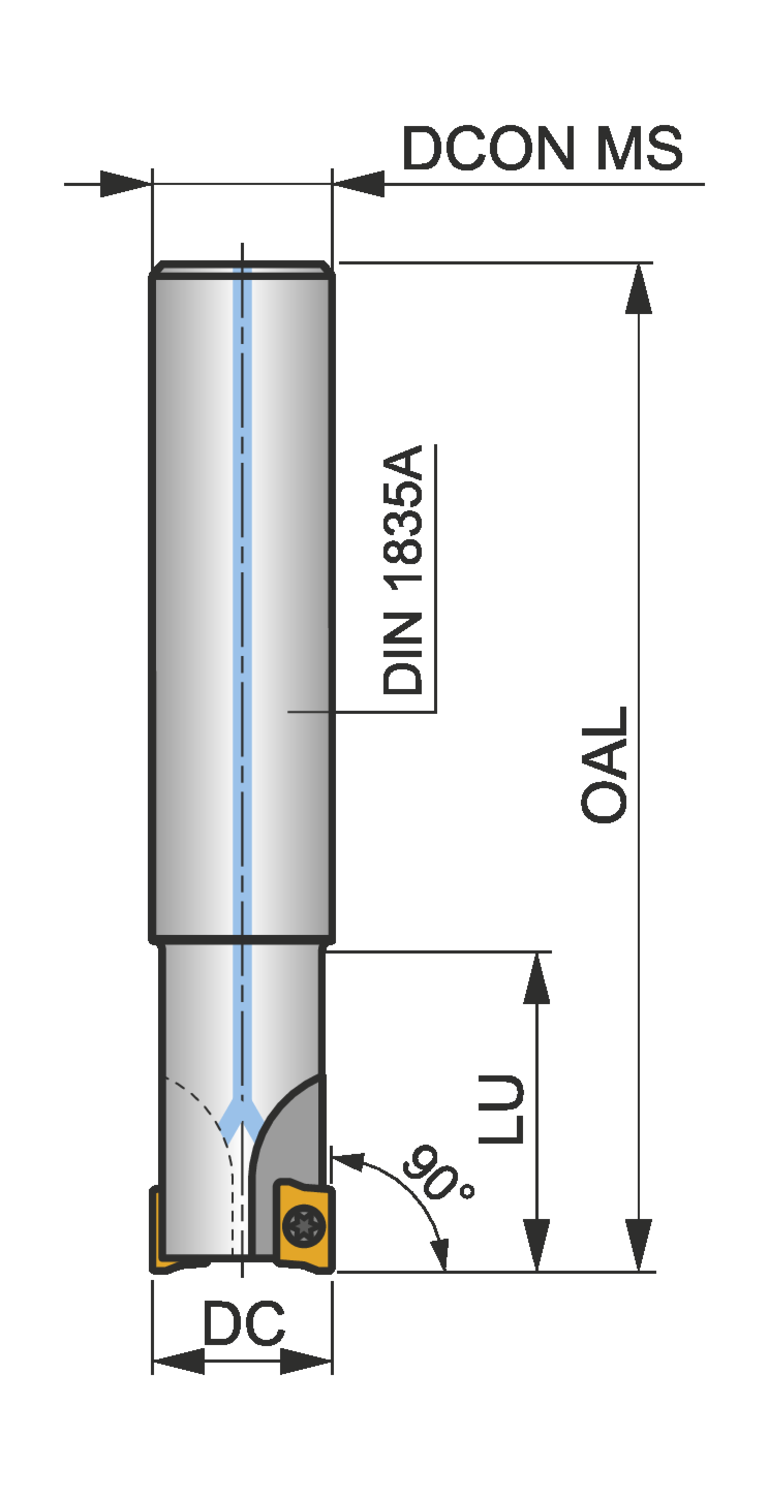

Axial rake angle (GAMP)
4
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.63
Connection diameter - millimeter (DCON MS)
16
Connection size code machine side (CZC MS)
-
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.63
Cutting diameter - millimeter (DC)
16
Hand (Cutting direction)
Right
Insert index count (NOI)
2
Overall length - inch (OAL)
5.315
Overall length - millimeter (OAL)
135
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
-12.8
Rotational speed maximum (RPMX)
30100
Shank
Cylindrical shank DIN 1835A
Usable Length - millimeter (LU)
24
Shoulder mill with positve/negative geometry which utilises 2 off ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 16mm with 90° approach angle and 16mm parallel shank according to DIN 1835A, 24mm functional and 135mm overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 9.0mm
