Pramet 200A04R-IS45HN06C-C 6792927 Shell Milling Cutter - Face
MODEL 6792927
$480.18 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

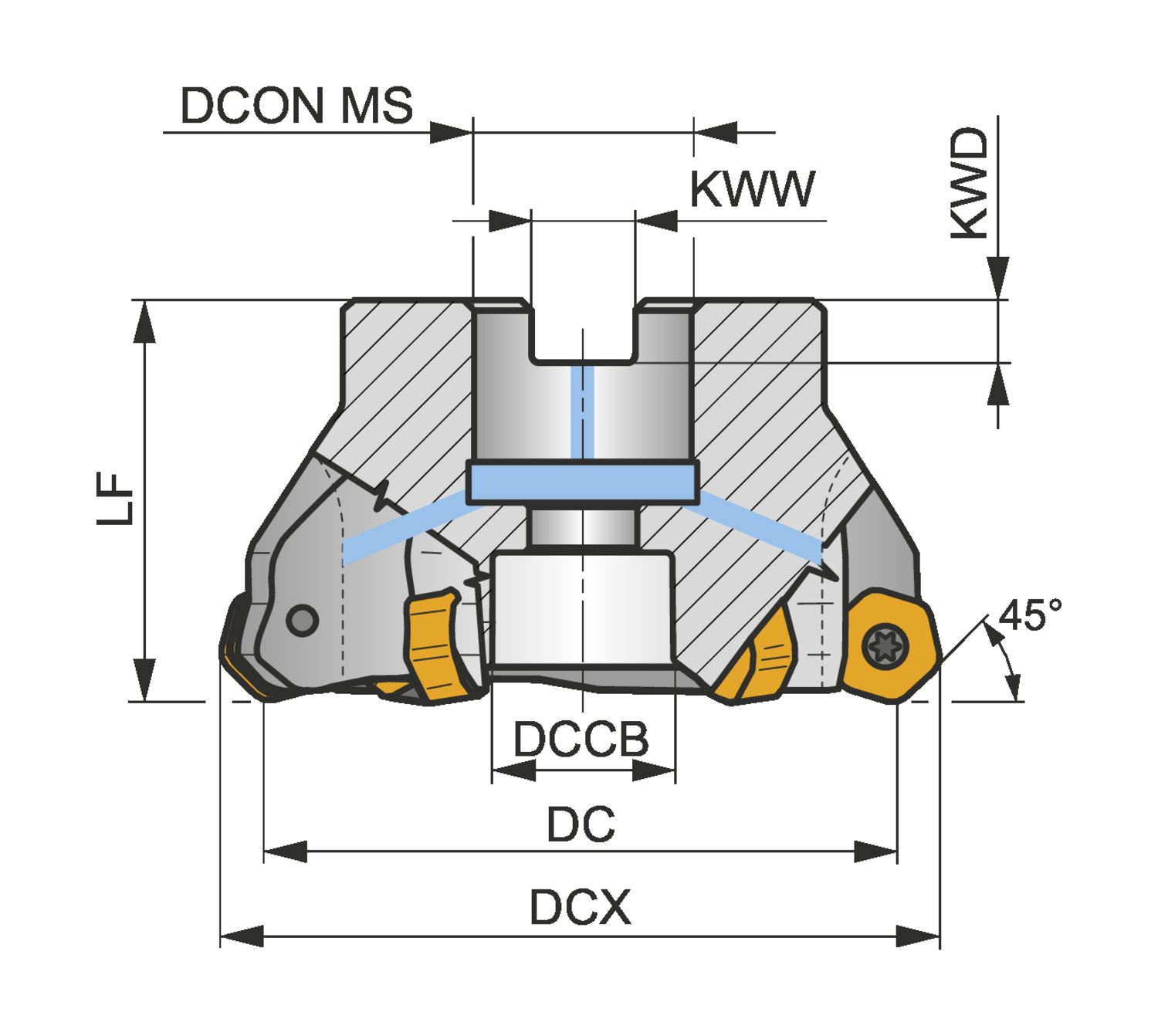

Axial rake angle (GAMP)
-7
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.75
Connection diameter - millimeter (DCON MS)
19.1
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
0.63
Counterbore diameter connection bore - millimeter (DCCB)
16
Cutting diameter - inch (DC)
2
Cutting diameter - millimeter (DC)
50.8
Cutting diameter maximum - inch (DCX)
2.287
Cutting diameter maximum - millimeter (DCX)
58.1
Cutting pitch differential (CPDF)
1
Functional length - inch (LF)
1.575
Hand (Cutting direction)
Right
Keyway depth - inch (KWD)
0.193
Keyway width - inch (KWW)
0.321
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
-7
Rotational speed maximum (RPMX)
12300
Shank
Shell mill DIN 8030 A
Face mill with double negative geometry which utilises 4 off HNGX 0604AN.. or XNGX 0604AN.. double-sided inserts, cutting diameter 2.000 to maximum 2.287'' with 45° approach angle and .750'' connection bore according to DIN 8030-A, 1.575'' protrusion length, through coolant for face milling, ramping, progressive plunge milling and chamfering with a maximum depth of cut of .118''
