Pramet 200A04R-IS45OD05-C 7546797 Shell Milling Cutter - Face
MODEL 7546797
$449.33 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

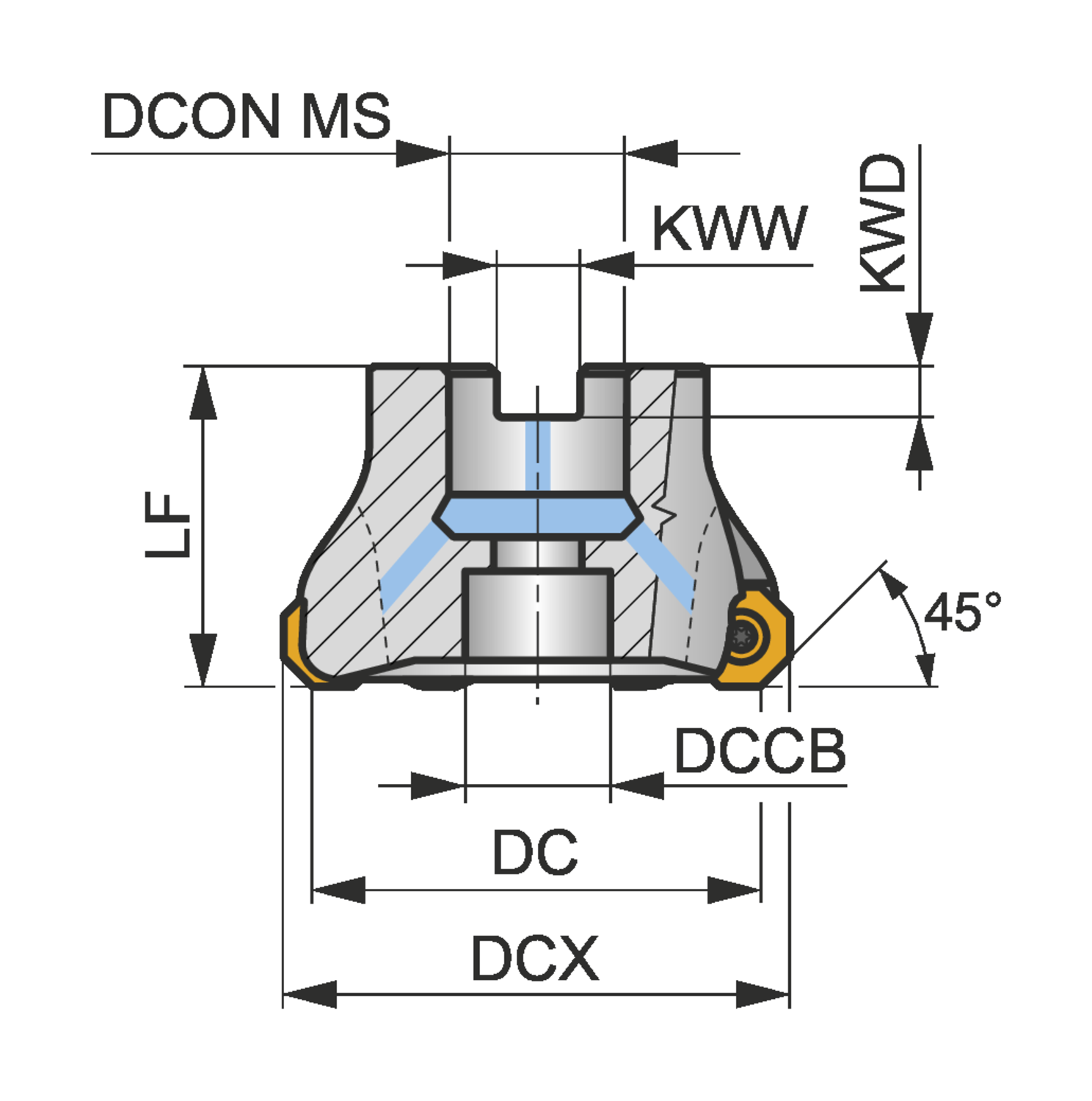

Axial rake angle (GAMP)
-7
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.75
Connection diameter - millimeter (DCON MS)
19.1
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
0.63
Counterbore diameter connection bore - millimeter (DCCB)
16
Cutting diameter - inch (DC)
1.709
Cutting diameter - millimeter (DC)
43.4
Cutting diameter maximum - inch (DCX)
2
Cutting diameter maximum - millimeter (DCX)
50.8
Functional length - inch (LF)
1.575
Hand (Cutting direction)
Right
Keyway depth - inch (KWD)
0.193
Keyway width - inch (KWW)
0.321
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
8
Rotational speed maximum (RPMX)
14100
Shank
Shell mill DIN 8030 A
Tool cutting edge angle (KAPR)
45
Copy face mill with positve/negative geometry which utilises 4 off OD.T 05IM, RD.T 12IM or SD.T 12IM single-sided inserts, cutting diameter 1.709 to maximum 2.000'' with 45 / 90° approach angle and .750'' connection bore according to DIN 8030-A, 1.575'' protrusion length, through coolant for face milling, copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling, progressive plunge milling and chamfering with a maximum depth of cut of .118 (.236/.394)''
