Pramet 200A05R-IS90AD11E-C shell milling cutter, square shoulder, 2 in cutting diameter, 0.354 in maximum depth of cut, 5 AD.. 11.... inserts, 90° approach angle, 0.75 in connection bore per DIN 8030-A, 1.575 in functional length, through coolant, right hand. Article 6790721.
MODEL 6790721
$524.39 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

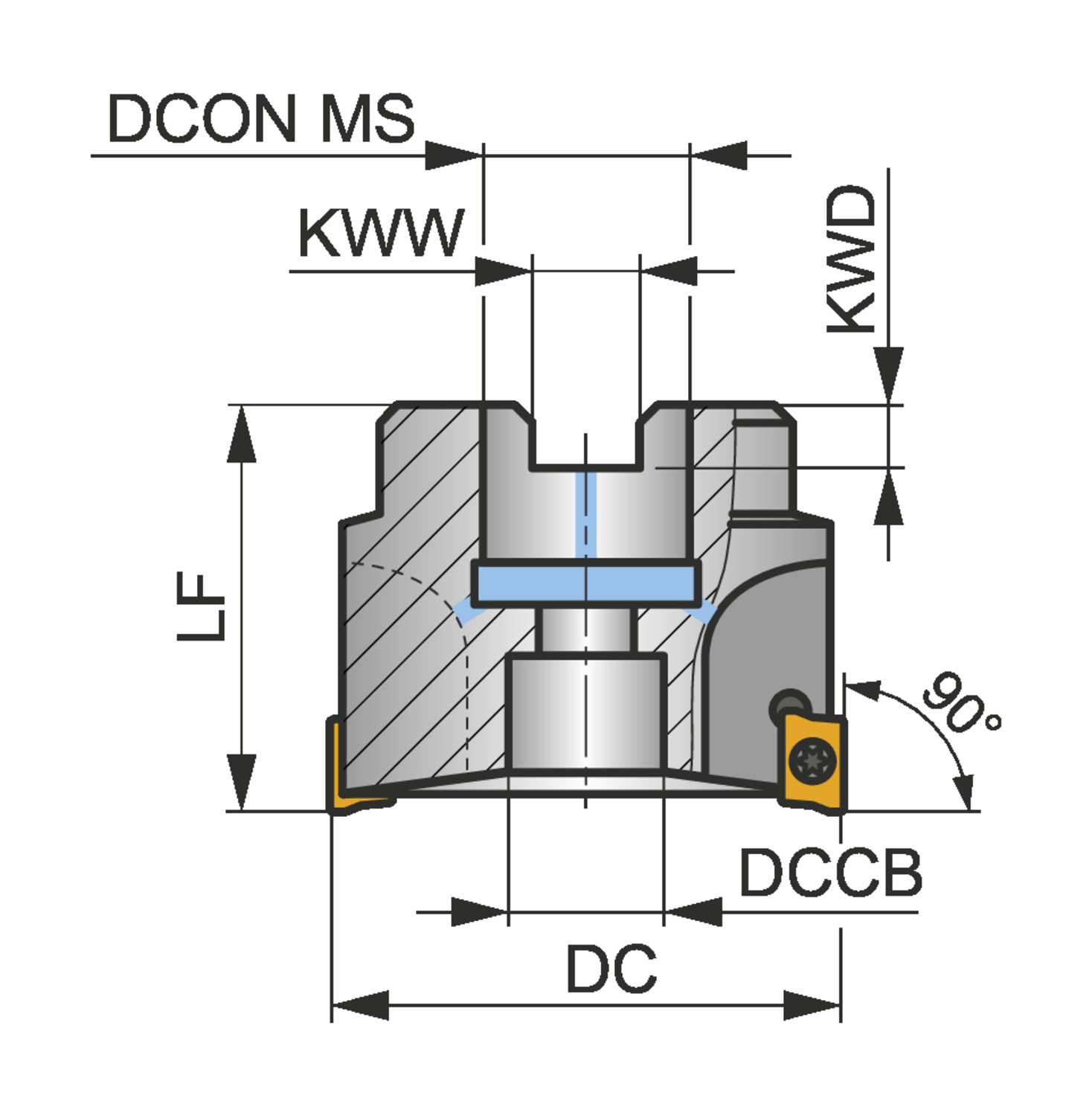

Axial rake angle (GAMP)
12
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.75
Connection diameter - millimeter (DCON MS)
19.1
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
0.63
Counterbore diameter connection bore - millimeter (DCCB)
16
Cutting diameter - inch (DC)
2
Cutting diameter - millimeter (DC)
50.8
Cutting pitch differential (CPDF)
1
Functional length - inch (LF)
1.575
Hand (Cutting direction)
Right
Keyway depth - inch (KWD)
0.193
Keyway width - inch (KWW)
0.321
Peripheral effective cutting edge count (ZEFP)
5
Radial rake angle (GAMF)
-7.2
Rotational speed maximum (RPMX)
17000
Shank
Shell mill DIN 8030 A
Shoulder mill with positve/negative geometry which utilises 5 off ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 2.000'' with 90° approach angle and .750'' connection bore according to DIN 8030-A, 1.575'' protrusion length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .354''
