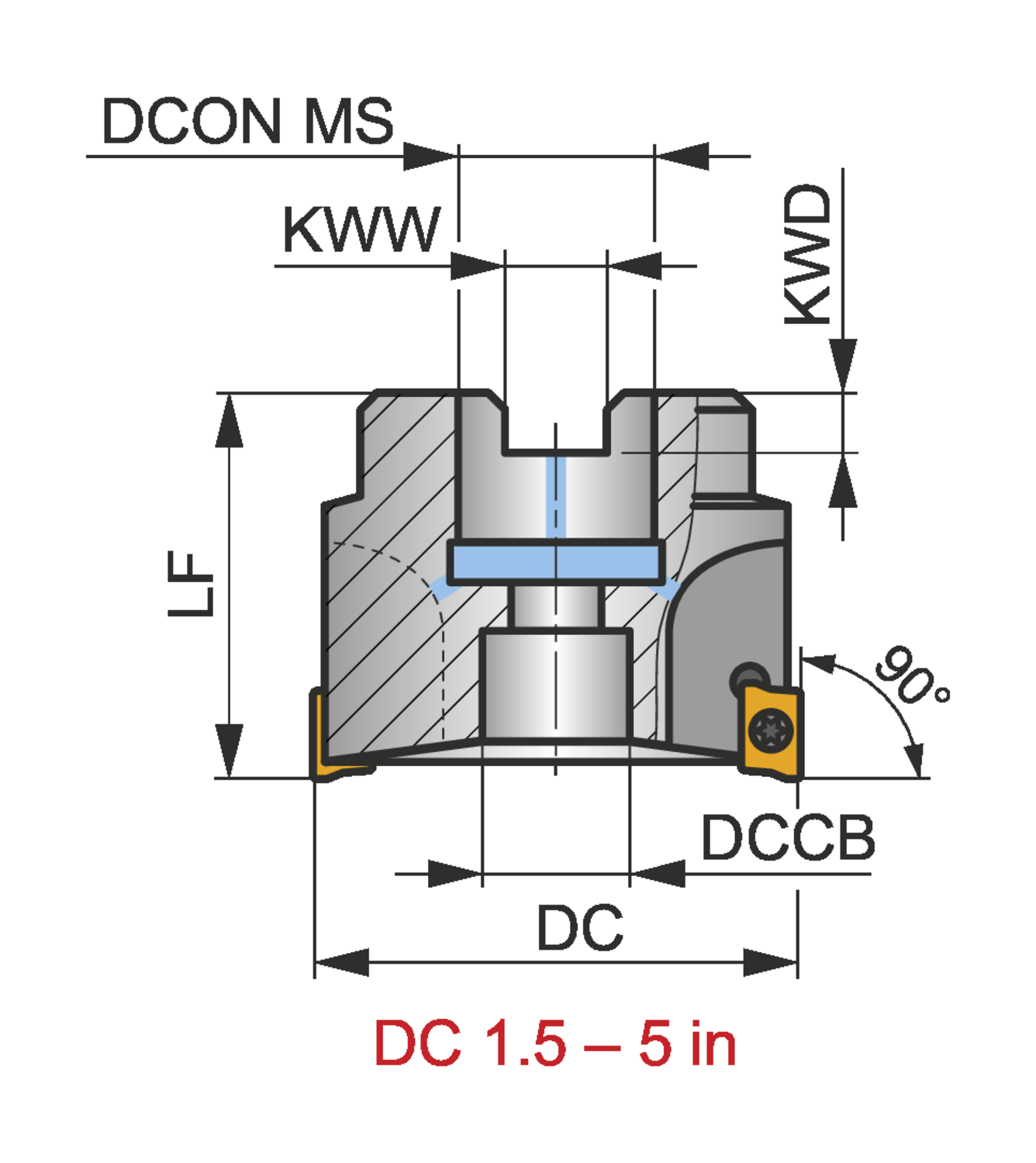

Pramet 200A05R-IS90AD16E-C shell milling cutter, square shoulder, 2 in cutting diameter, 5 AD..16 inserts, 90° approach angle, 0.75 in connection bore per DIN 8030-A, 1.575 in functional length, through coolant. Right-hand, screw clamping through hole, 13200 RPM max. For shallow shoulder, slot, ramping, helical interpolation, and copy milling in steel, stainless, cast iron, non-ferrous, and superalloys.

Axial rake angle (GAMP)

11

Clamping Type Code (MTP)

Screw clamping through hole

Connection diameter - inch (DCON MS)

0.75

Connection diameter - millimeter (DCON MS)

19.1

Coolant supply property (CSP)

1

Counterbore diameter connection bore - inch (DCCB)

0.63

Counterbore diameter connection bore - millimeter (DCCB)

16

Cutting diameter - inch (DC)

2

Cutting diameter - millimeter (DC)

50.8

Cutting pitch differential (CPDF)

1

Functional length - inch (LF)

1.575

Hand (Cutting direction)

Right

Keyway depth - inch (KWD)

0.193

Keyway width - inch (KWW)

0.321

Peripheral effective cutting edge count (ZEFP)

5

Radial rake angle (GAMF)

-7

Rotational speed maximum (RPMX)

13200

Shank

Shell mill DIN 8030 A
