Pramet 20A2R026M10-STN10-C 7178500 Modular Head for Square Shoulder Milling
MODEL 7178500
$303.33 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

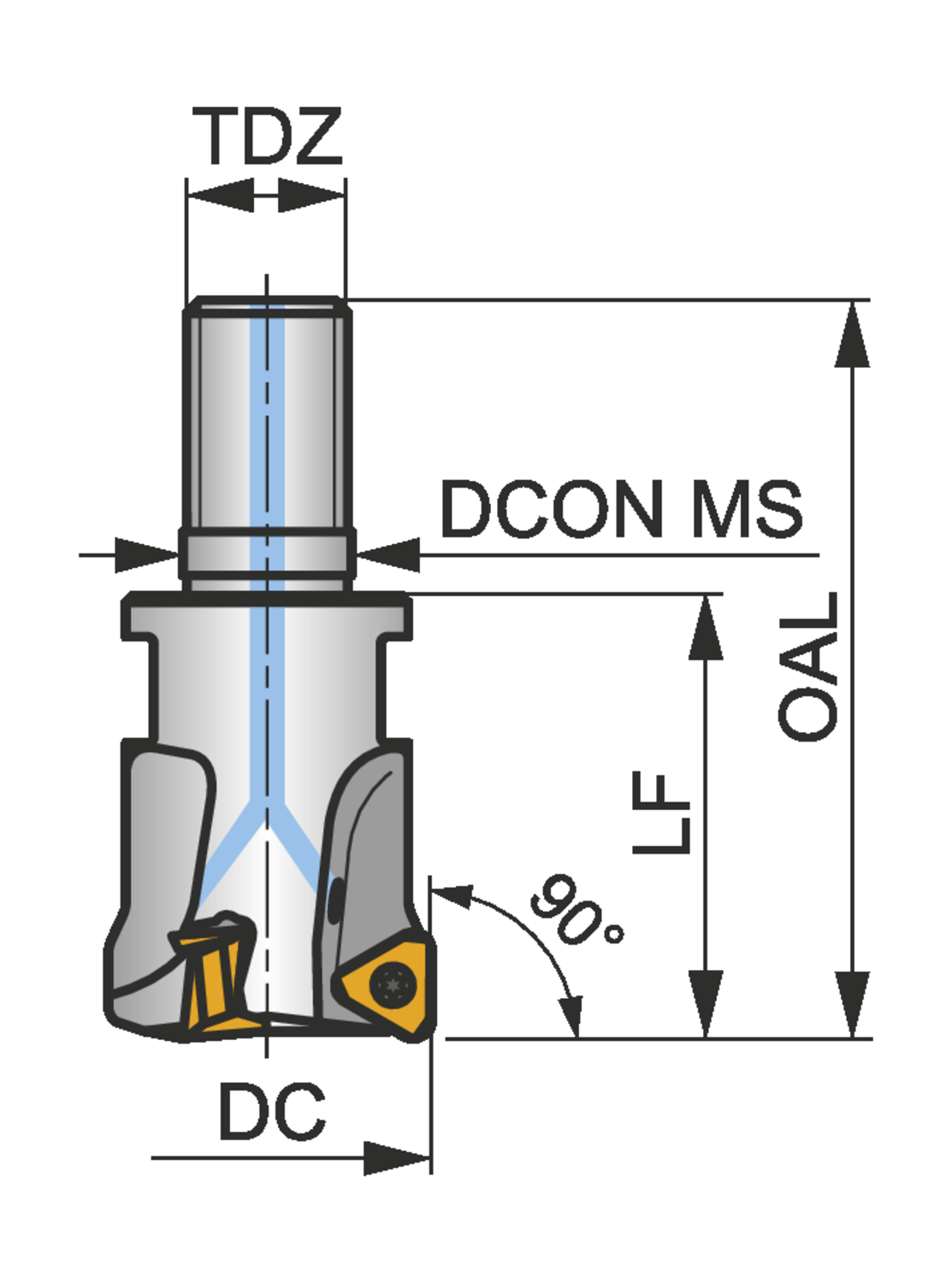

Axial rake angle (GAMP)
-11
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.413
Connection diameter - millimeter (DCON MS)
10.5
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.787
Cutting diameter - millimeter (DC)
20
Functional length - millimeter (LF)
26
Hand (Cutting direction)
Right
Insert index count (NOI)
2
Overall length - inch (OAL)
1.772
Overall length - millimeter (OAL)
45
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
-16.5
Shank
Threaded coupling
Thread diameter size (TDZ)
M10
Shoulder face mill with double negative geometry which utilises 2 off TNGX 1004.. double-sided inserts, cutting diameter 20mm with 90° approach angle and M10 threaded shank for standard modular tool-holders, 26mm protrusion length, through coolant for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of 5.0mm
| Brand | Pramet |
| Model | 7455367 |
