Pramet 250A07R-IS90SO09-C shell milling cutter body for square shoulder milling, 2.5 in cutting diameter, 90° approach angle, 7 inserts, 0.315 in maximum depth of cut, 0.63 in connection bore, through coolant, right hand.
MODEL 6789779
$593.28 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

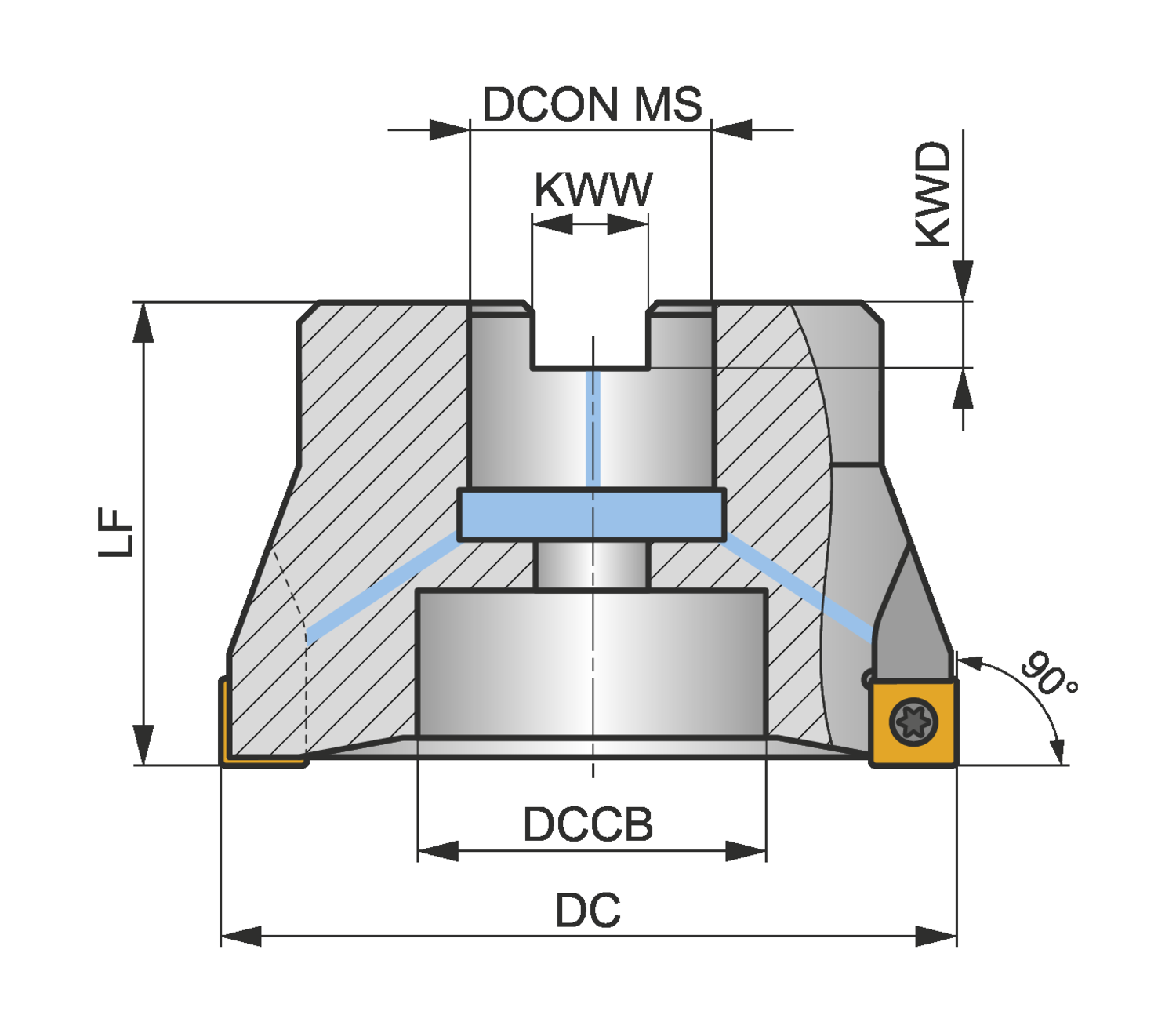

Axial rake angle (GAMP)
10
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.63
Connection diameter - millimeter (DCON MS)
16
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
0.63
Counterbore diameter connection bore - millimeter (DCCB)
16
Cutting diameter - inch (DC)
2.5
Cutting diameter - millimeter (DC)
63.5
Functional length - inch (LF)
1.575
Hand (Cutting direction)
Right
Keyway depth - inch (KWD)
0.193
Keyway width - inch (KWW)
0.321
Peripheral effective cutting edge count (ZEFP)
7
Radial rake angle (GAMF)
-8.6
Rotational speed maximum (RPMX)
13400
Shank
Shell mill DIN 8030 A
Shoulder mill with positve/negative geometry which utilises 7 off SOMT 09T3.. single-sided inserts, cutting diameter 2.500'' with 90° approach angle and .750'' connection bore according to DIN 8030-A, 1.575'' protrusion length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of .315''
