Pramet 2516-45-11 6758330 End Milling Cutter - Chamfering
MODEL 6758330
$267.34 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

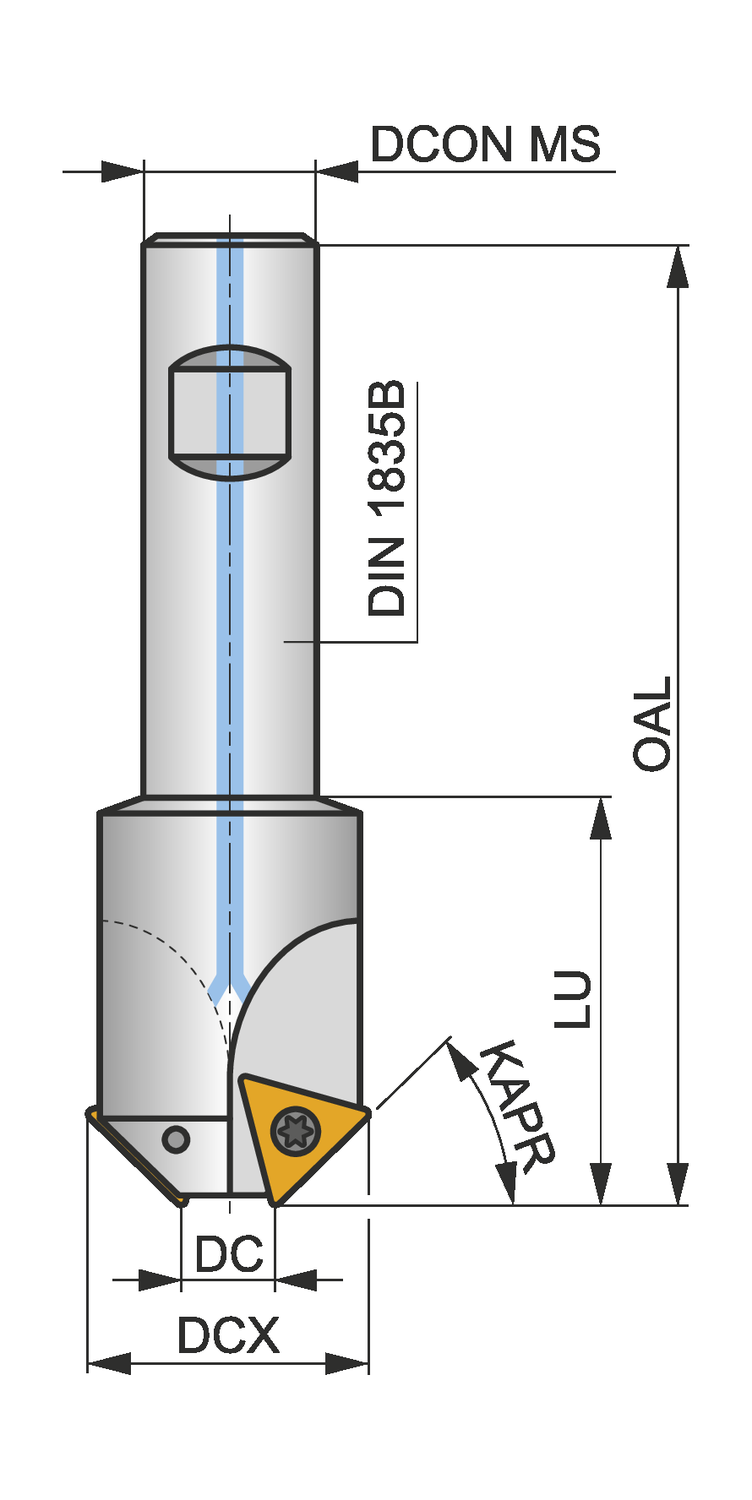

Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.63
Connection diameter - millimeter (DCON MS)
16
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.433
Cutting diameter - millimeter (DC)
11
Cutting diameter maximum - inch (DCX)
1.22
Cutting diameter maximum - millimeter (DCX)
31
Hand (Cutting direction)
Right
Insert index count (NOI)
2
Overall length - inch (OAL)
3.937
Overall length - millimeter (OAL)
100
Peripheral effective cutting edge count (ZEFP)
2
Rotational speed maximum (RPMX)
18100
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
30
Chamfer mill which utilises 2 off TCMT 16T308E-FM:T83.. single-sided inserts, cutting diameter 11 to maximum 21mm with 45° approach angle and 16mm Weldon shank according to DIN 1835B, 30mm functional and 100mm overall length, through coolant for chamfering with a maximum depth of cut of 8.5mm
