Pramet 2516-45-19 end milling cutter for chamfering, 0.748 in cutting diameter, 45° approach angle, 2 inserts, Weldon shank DIN 1835B, 20 mm connection, 30 mm usable length, 100 mm overall length, through coolant, right hand. Article 6758331.
MODEL 6758331
$304.35 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

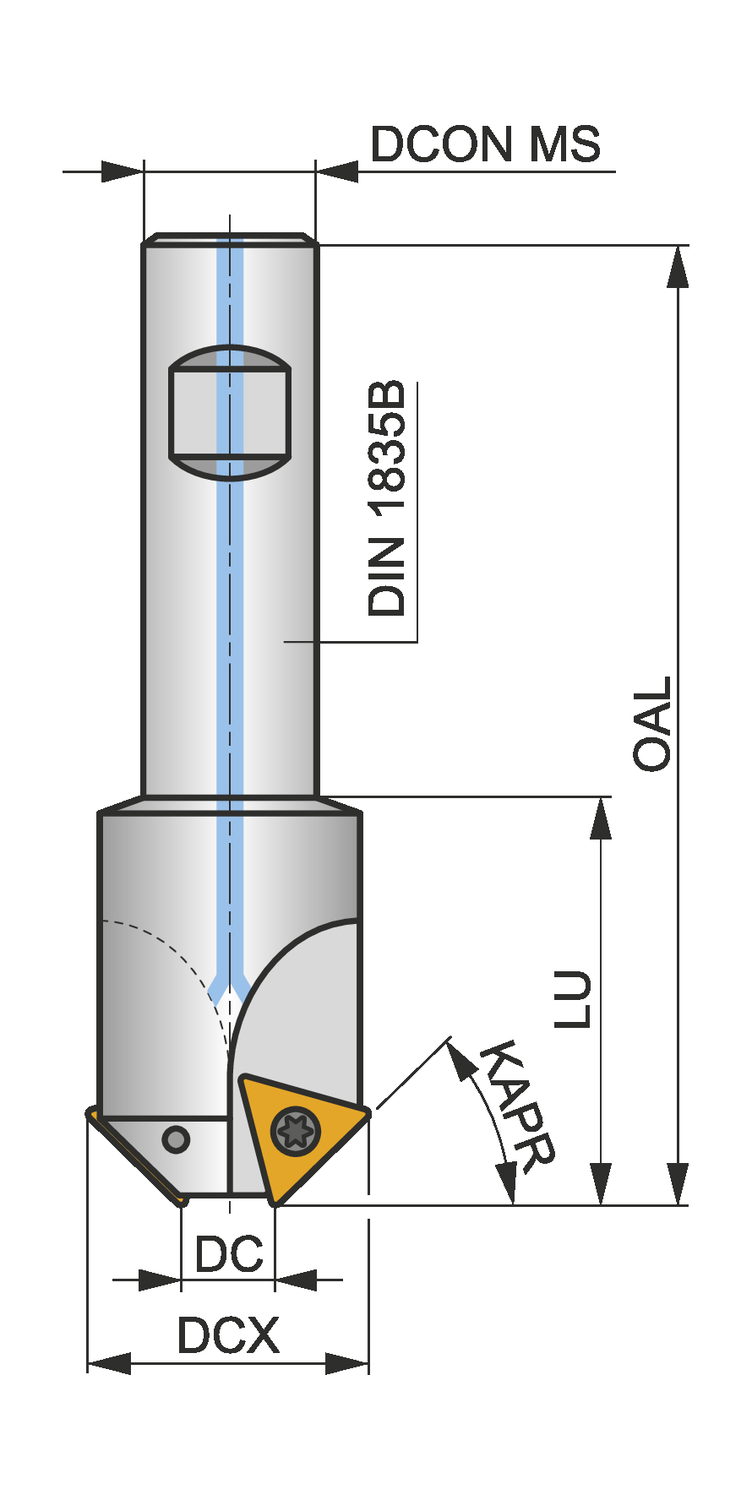

Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.787
Connection diameter - millimeter (DCON MS)
20
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.748
Cutting diameter - millimeter (DC)
19
Cutting diameter maximum - inch (DCX)
1.535
Cutting diameter maximum - millimeter (DCX)
39
Hand (Cutting direction)
Right
Insert index count (NOI)
2
Overall length - inch (OAL)
3.937
Overall length - millimeter (OAL)
100
Peripheral effective cutting edge count (ZEFP)
2
Rotational speed maximum (RPMX)
16200
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
30
Chamfer mill which utilises 2 off TCMT 16T308E-FM:T83.. single-sided inserts, cutting diameter 19 to maximum 39mm with 45° approach angle and 20mm Weldon shank according to DIN 1835B, 30mm functional and 100mm overall length, through coolant for chamfering with a maximum depth of cut of 8.5mm
