Image for Illustration purposes only. Actual product may vary

Pramet 25A2R033M12-SLN12-C modular head for square shoulder milling, 0.984 in (25 mm) cutting diameter, 0.354 in maximum depth of cut, 2 inserts, M12 threaded shank, 90° approach angle, through coolant, right hand. Article 6798614.

Name: Pramet 25A2R033M12-SLN12-C modular head for square shoulder milling, 0.984 in (25 mm) cutting diameter, 0.354 in maximum depth of cut, 2 inserts, M12
Brand: Pramet
Price: 339.31 USD
Availability: InStock

MODEL 6798614

BRAND

Pramet

SKU

6064232

WEIGHT

0.243 lb

UOM

each

$339.31 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Axial rake angle (GAMP)

-6

Clamping Type Code (MTP)

Screw clamping through hole

Connection diameter - inch (DCON MS)

0.492

Connection diameter - millimeter (DCON MS)

12.5

Coolant supply property (CSP)

Cutting diameter - inch (DC)

0.984

Cutting diameter - millimeter (DC)

Functional length - millimeter (LF)

Hand (Cutting direction)

Right

Insert index count (NOI)

Overall length - inch (OAL)

2.165

Overall length - millimeter (OAL)

Peripheral effective cutting edge count (ZEFP)

Radial rake angle (GAMF)

-22

Shank

Threaded coupling

Thread diameter size (TDZ)

Shoulder mill with double negative geometry which utilises 2 off LNGX 1205.. or LNGU 1205.. double-sided inserts, cutting diameter 25mm with 90° approach angle and M12 threaded shank for standard modular tool-holders, 33mm protrusion length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 9.0mm

When will I be charged for my order? Ordering Do you provide credit terms? Ordering Can I get a discounted price? I am a reseller / government entity. Ordering What is the return/warranty policy? Ordering Can it be shipped today? Ordering Does “Usually ships in 24 hours” mean it’s in stock? Ordering Read full FAQ All FAQs

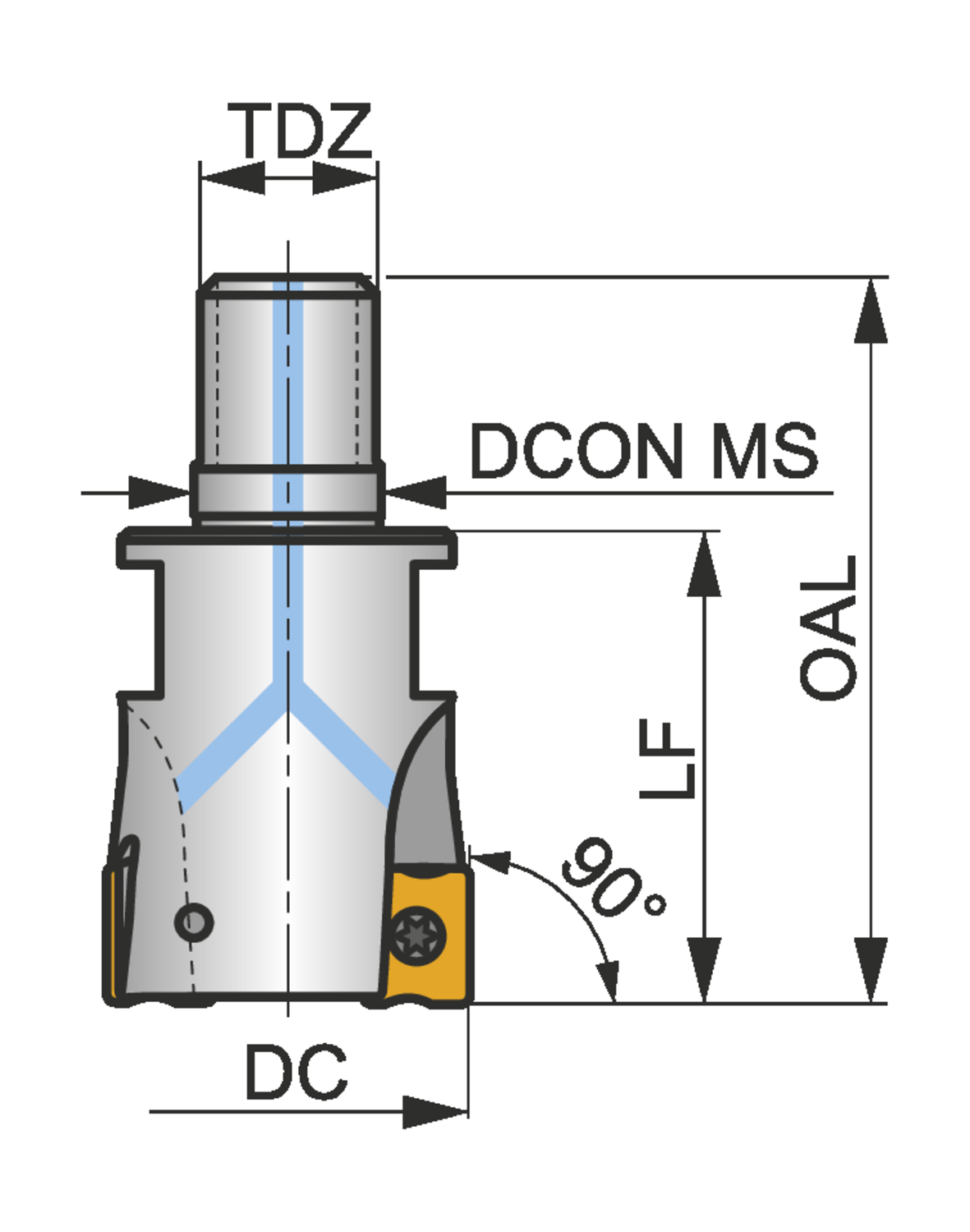

Line Drawing PNG
