Pramet 300A04R-IS90SN12N4 6789671 Shell Disc Mill - Slotting
MODEL 6789671
$951.11 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
0.5
Clamping Type Code (MTP)
Screw clamping through hole
Connection (shank) description
Arbor DIN 8030/A
Connection bore diameter - inch (DCB)
0.75
Cutting depth maximum - inch (CDX)
0.61
Cutting diameter - inch (DC)
3
Cutting diameter - millimeter (DC)
76.2
Cutting width - inch (CW)
0.25
Hand (Cutting direction)
Right
Hub diameter - inch (DHUB)
1.575
Number of peripheral edges in the tool (ZNP)
8
Overall length - inch (OAL)
1.575
Overall length - millimeter (OAL)
40
Peripheral effective cutting edge count (ZEFP)
8
Possible use
Medium machining
Radial rake angle (GAMF)
2.5
Rotational speed maximum (RPMX)
8400
Shank
Shell mill DIN 8030 A

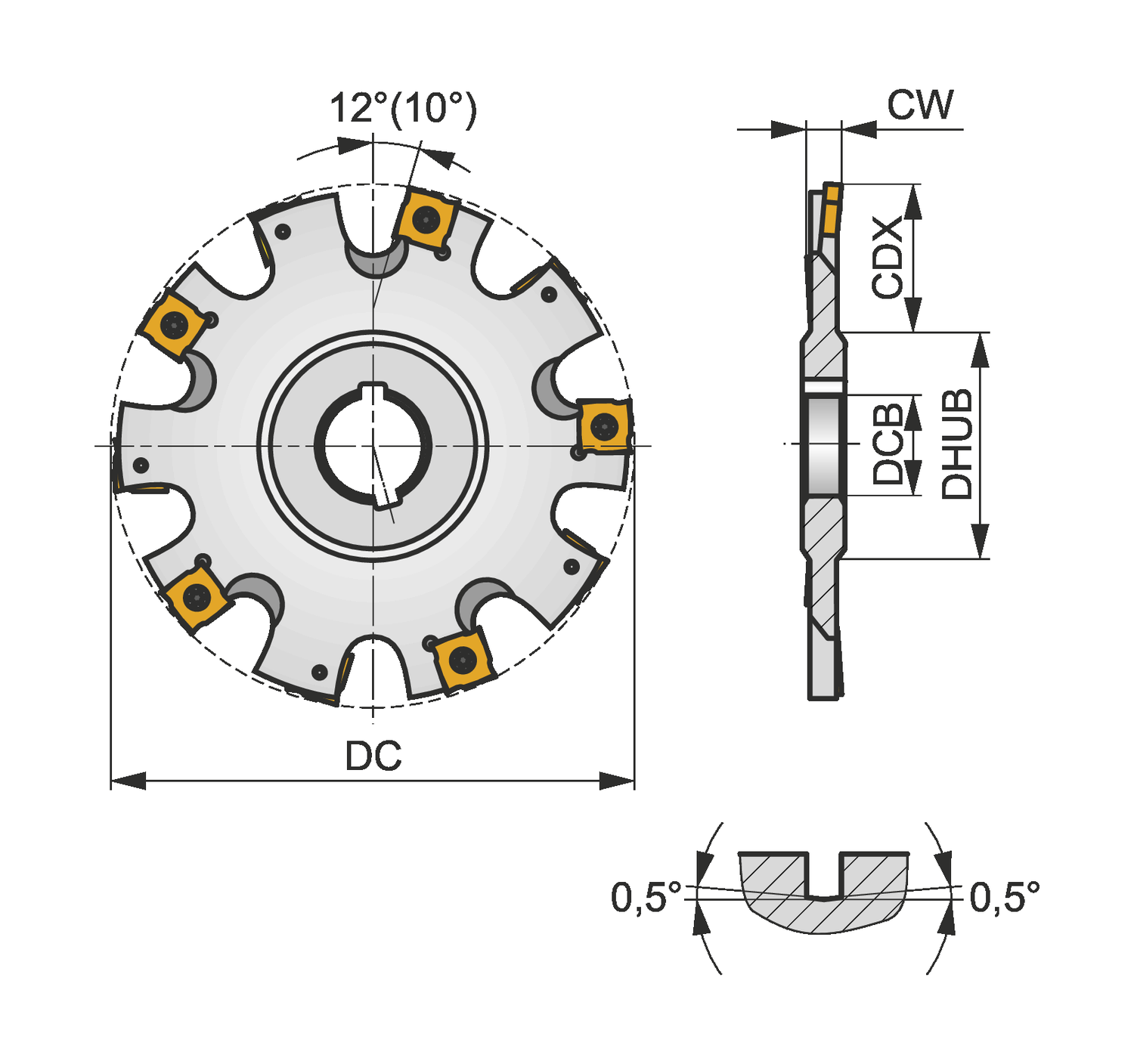

Disc mill with double positive geometry which utilises 8 off SNHQ 1102.. double-sided inserts, cutting diameter 3.000'' with 90° approach angle and .750'' connection bore according to DIN 8030-A, 1.575'' protrusion length for deep slot milling with a width of cut of .250''
